LayerZero® Finger-Safe SafePanel® Panel Board
Introduction
At LayerZero Power Systems, safety and innovation are at the core of everything we do. Introducing the LayerZero SafePanel® – the panel board designed to help keep workers safe in mission-critical environments. LayerZero currently offers the 225-400 A (Branch-level distribution + monitoring), and 1200-1600 A SafePanel® panel boards (Sub-feed distribution + monitoring).
Product Highlights
Maximum Operator Safety
![Maximum Operator Safety](../../images/safety/safe-operator.jpg)
The LayerZero® SafePanel® is IP-20 rated and finger-safe, ensuring no exposure to live bus, with protective covers for unused circuit breaker positions and optional shrouds for exposed wires. Its design prioritizes operator safety in mission-critical environments.
Ease of Installation and Maintenance
![Ease of Installation and Maintenance](../../images/safety/easy-installation.jpg)
The LayerZero® SafePanel® is designed for quick and simple circuit breaker installation, reducing downtime and maximizing operational efficiency.
Robust and Reliable Design
![Robust and Reliable Design](../../images/safety/robust-design.jpg)
With its unique resin-injected molding to safely enclose the copper bus and nearly one-inch deep wells for additional protection, the SafePanel® offers a reliable solution for power distribution, ensuring long-term performance and safety.
400 A SafePanel®
![400 Amp SafePanel](../../images/safety/400A_SafePanel.jpg)
Overview
The 400 A SafePanel® is designed to provide reliable and safe power distribution for branch-level distribution.
Benefits
IP-20 Rated, Finger-Safe Design
![IP-20 Rated, Finger-Safe Design](../../images/safety/finger-safe-design.jpg)
Ensures maximum protection for operators.
Protective Covers
![Protective Covers](../../images/safety/protective-covers.jpg)
Prevents workplace accidents by covering unused circuit breaker positions.
Resin-Injected Molding
![Resin-Injected Molding](../../images/safety/resin-injected-molding.jpg)
Safely hides the copper bus, reducing exposure risk.
Optional Shrouds
![Optional Shrouds](../../images/safety/optional-shrouds.jpg)
Further enhances safety by covering exposed wires.

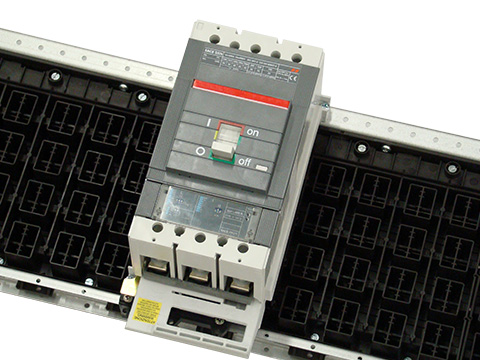

1200 A SafePanel®
![1200 Amp SafePanel](../../images/safety/1200A_SafePanel.jpg)
Overview
The 1200 A SafePanel® is ideal for subfeed power distribution needs with growing capacity requirements, offering robust safety features.
Benefits
IP-20 Rated, Finger-Safe Design
![IP-20 Rated, Finger-Safe Design](../../images/safety/1200A-finger-safe-design.jpg)
Provides enhanced safety for operators.
Protective Covers
![Protective Covers](../../images/safety/1200A-protective-covers.jpg)
Prevents workplace accidents by covering unused circuit breaker positions.
Copper Bus Hidden Behind Resin
![Resin-Injected Molding](../../images/safety/1200A-resin-injected-molding.jpg)
Ensures no exposure to live bus for maximum safety.
Optional Shrouds
![Optional Shrouds](../../images/safety/1200A-optional-shrouds.jpg)
Minimizes accident risk by shielding unused circuit breaker position.
Unique SafePanel® Design Features
At LayerZero Power Systems, we are committed to providing our customers with the safest and most reliable power distribution solutions. The SafePanel® design is a testament to our dedication to safety, innovation, and system reliability.
Fully Enclosed Bus
The bus is fully enclosed to ensure no exposure to live parts, providing maximum safety.
![LayerZero SafePanel Front](../../images/safety/SafePanel_Front.png)
![LayerZero SafePanel Back](../../images/safety/SafePanel_Back.png)

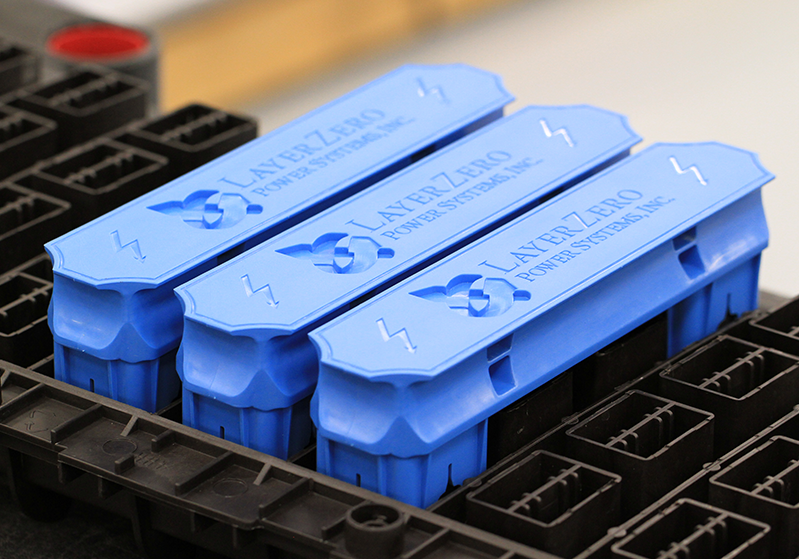

Protective Covers
The SafePanel® improves safety by completely covering unused circuit breaker spaces.
![SafePanel Covers](../../images/SafePanel/400A_SafePanel.gif)

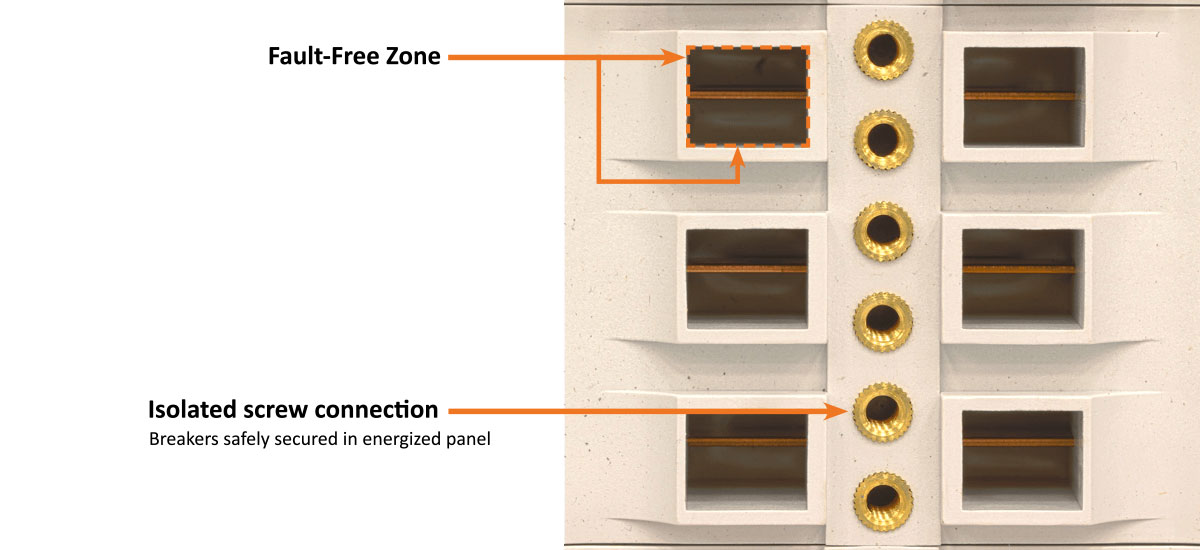

Deep Wells
The SafePanel® wells are almost 1" deep, creating an "arc-free zone" designed to protect the operator.
![SafePanel Closeup](../../images/safety/SafePanel_Closeup.jpg)

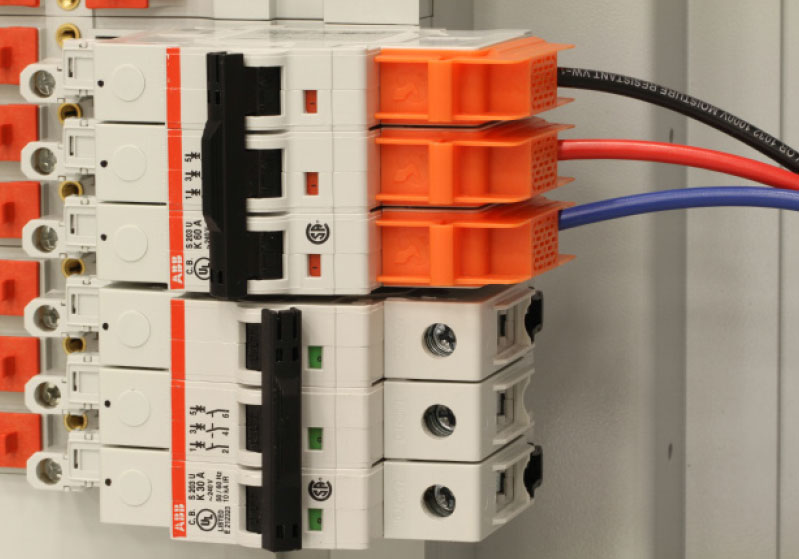

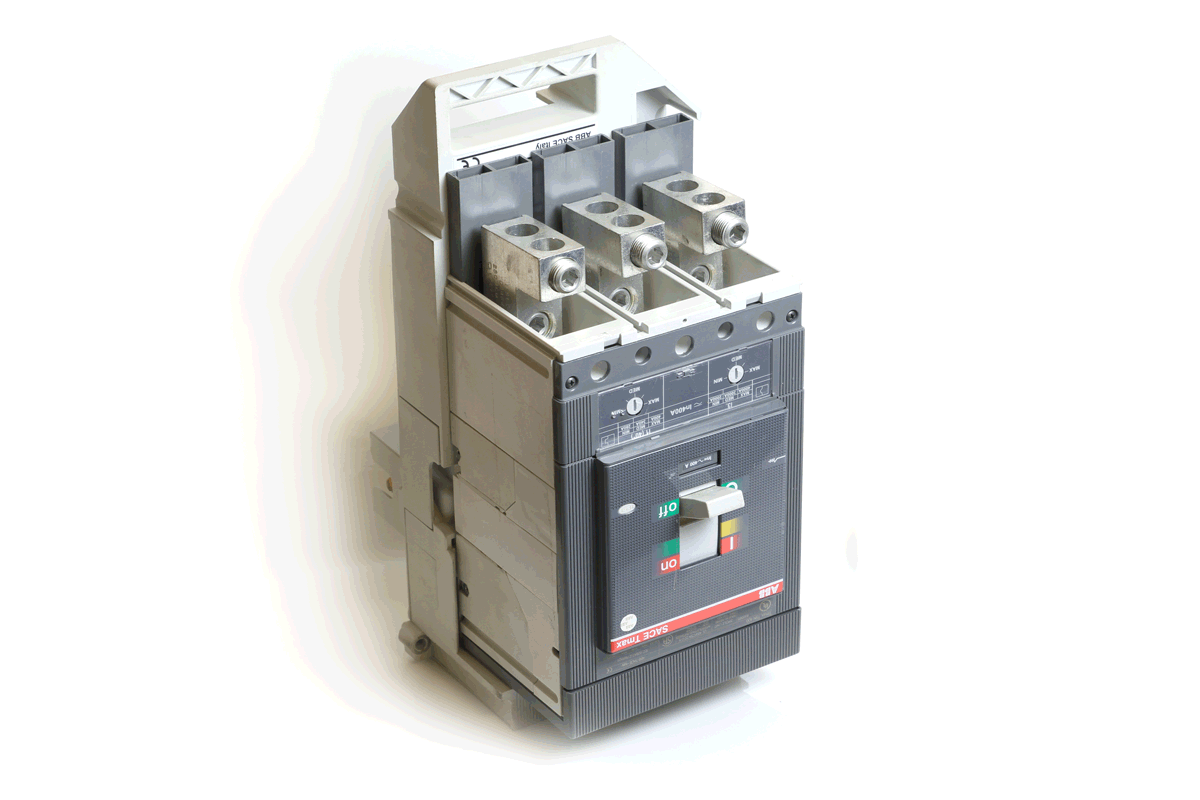

Shrouds
LayerZero Power Systems offers shrouds to cover up the SafePanel® wells.
225 A - 400 A SafePanel® Shrouds
1200 A SafePanel Shrouds
SafePanel Installation
225 A & 400 A SafePanel®

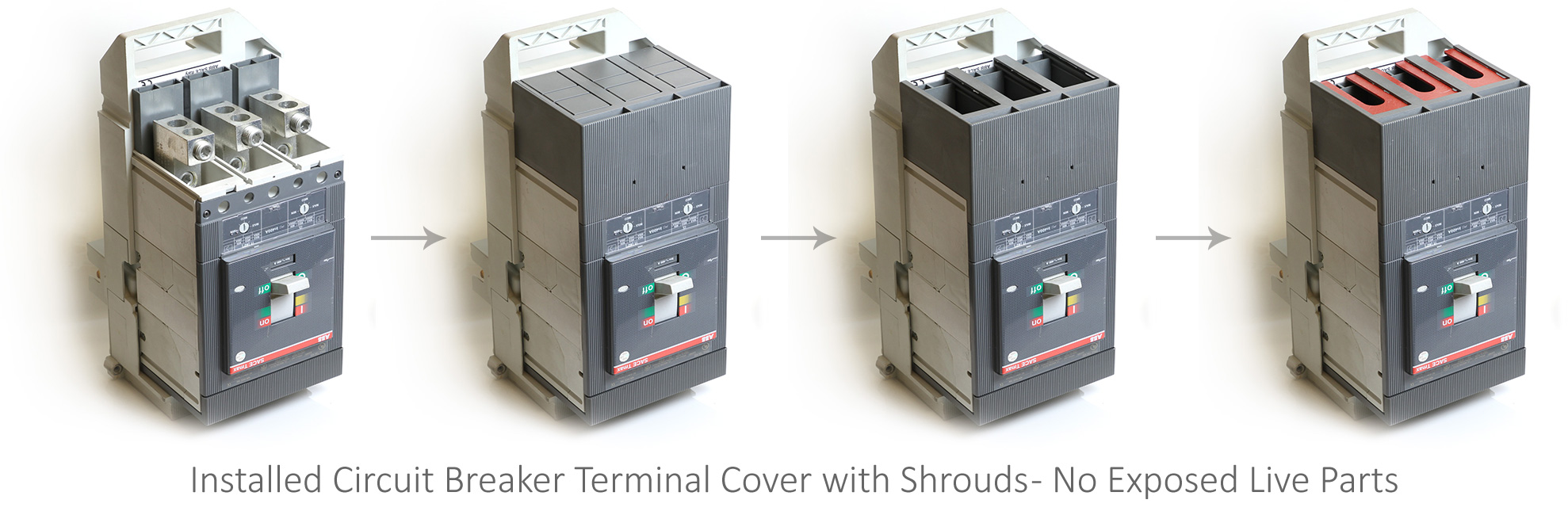

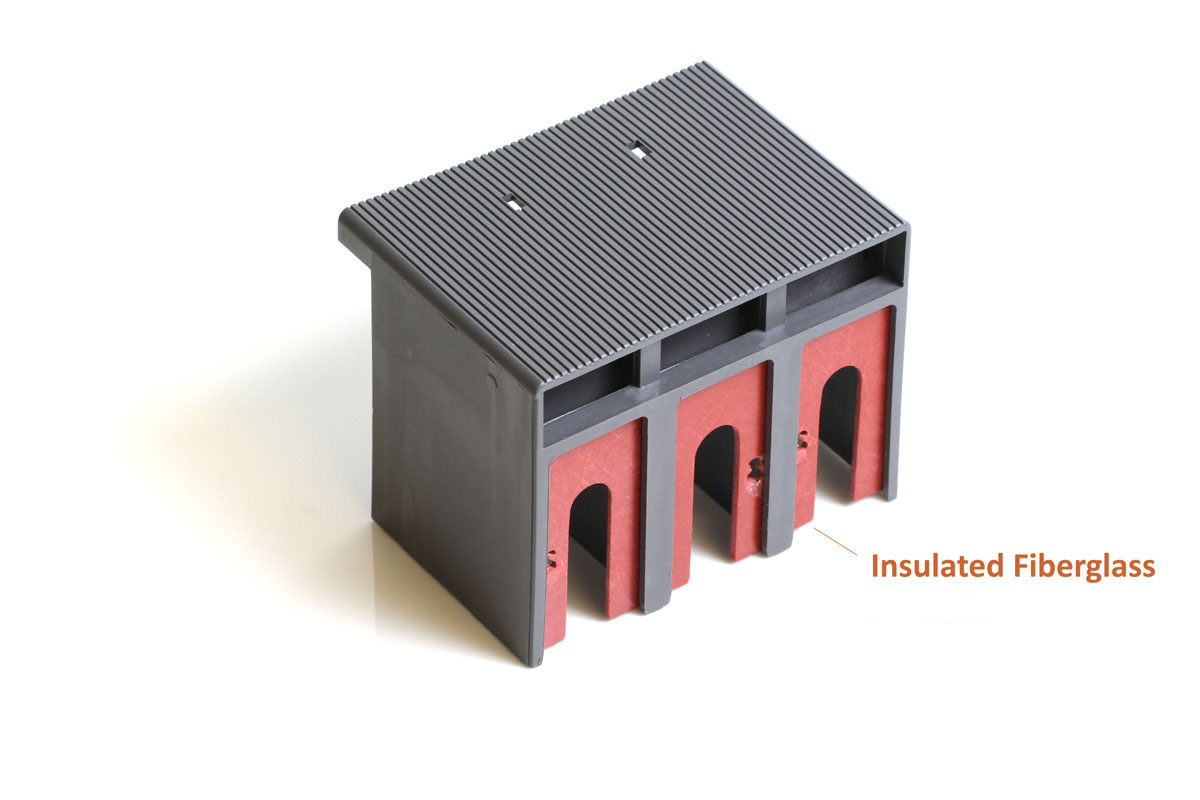

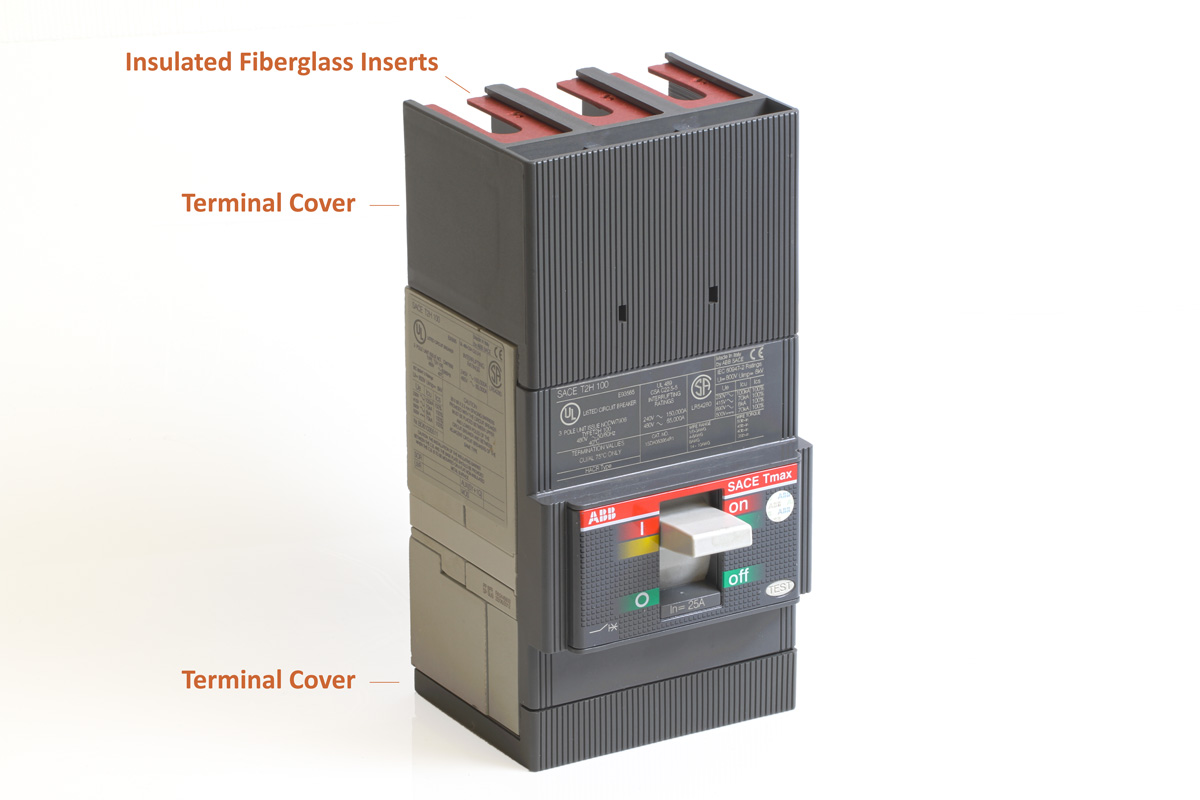

Circuit Breaker Terminal Cover with Insulated Fiberglass Inserts
Installation process of the circuit breaker terminal covers and fiberglass inserts.
Covers with insulated fiberglass shrouds are preinstalled and shipped with circuit breakers. When the covers and shrouds are installed into the SafePanel® Panel Board, there are no exposed live parts.

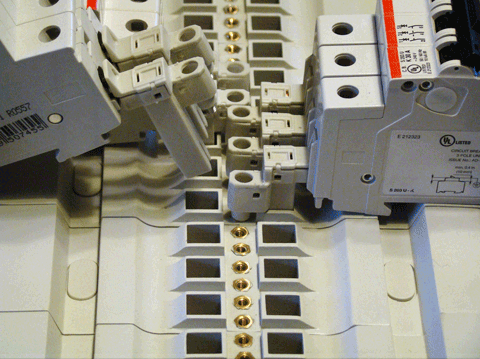

42-Circuit SafePanel® Circuit Breaker Installation

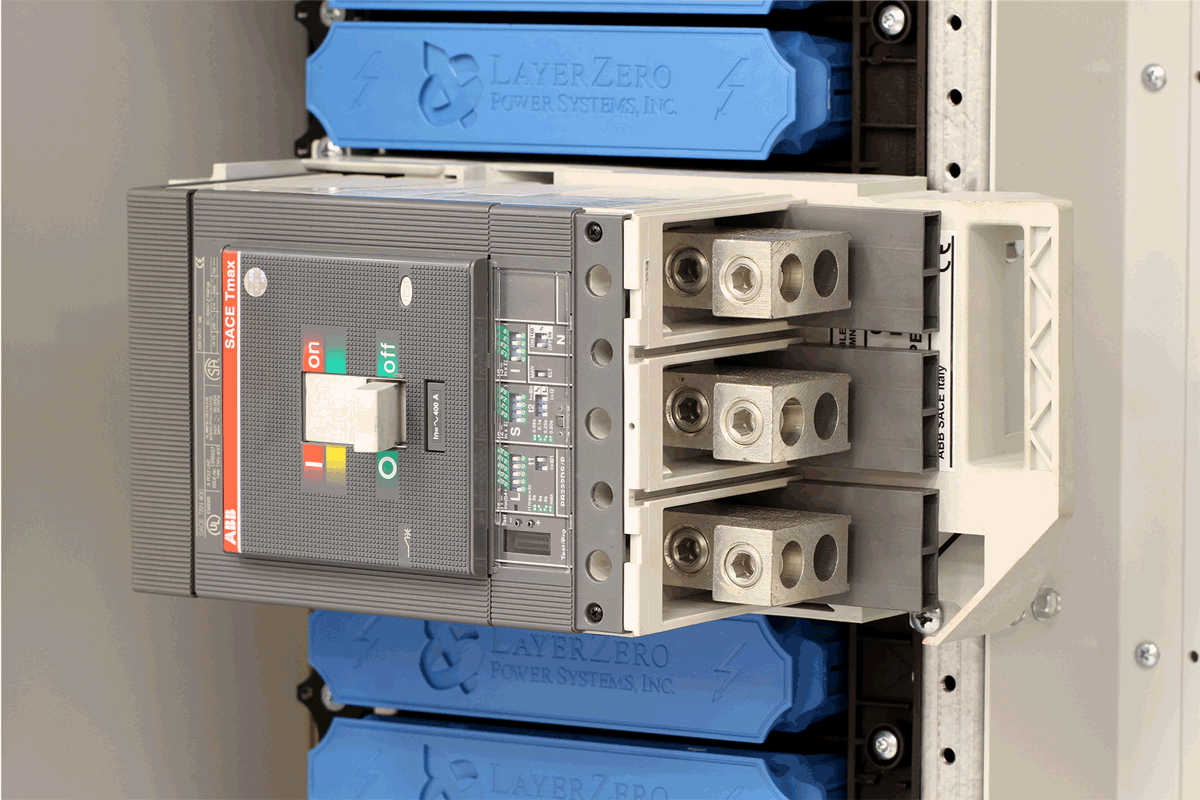

1200 A SafePanel® Circuit Breaker Installation

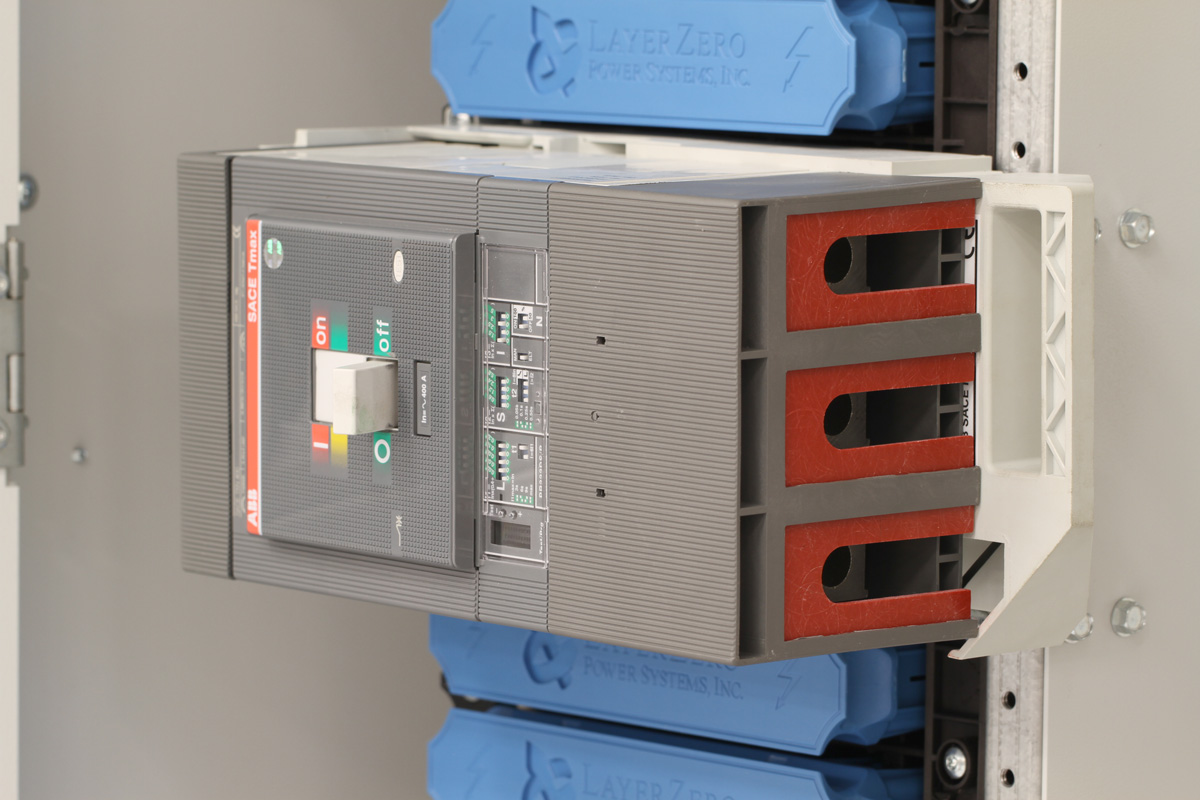

After circuit breaker installation, a terminal cover with insulated fiberglass inserts is installed.
