Download The LayerZero Power Systems Brochure

Our comprehensive print brochure has been carefully crafted to provide you with a detailed understanding of all the products and services offered by LayerZero Power Systems. Our aim is to assist you in making an informed decision about which of our solutions will best suit your needs.

To obtain a copy of the LayerZero brochure, simply click on the button below and download the PDF version.

Download the LayerZero Brochure
Download the LayerZero Brochure

The LayerZero Power Systems Brochure

0%

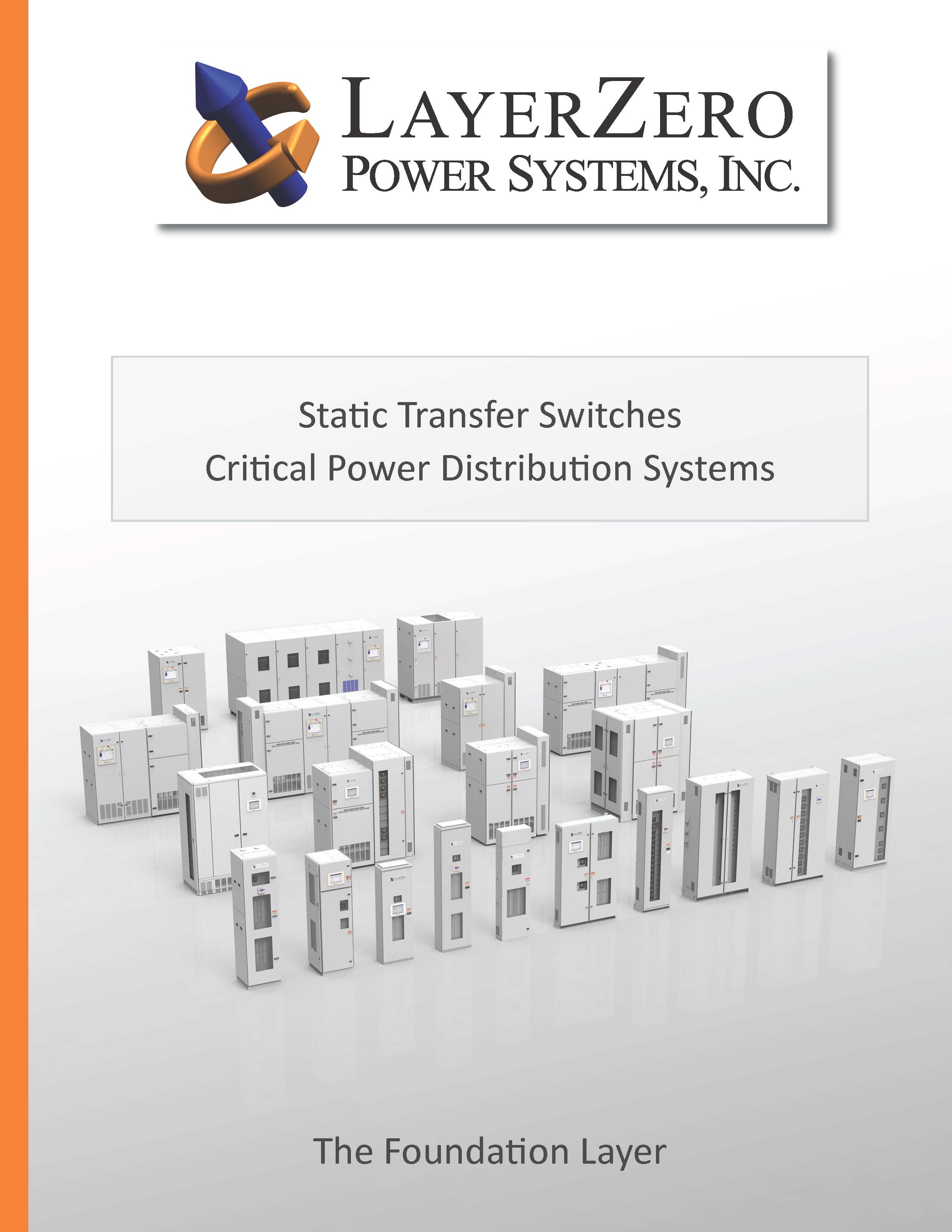

Cover - Static Transfer Switches & Critical Power Distribution Systems; product lineup under LayerZero Power Systems logo; tagline: The Foundation Layer

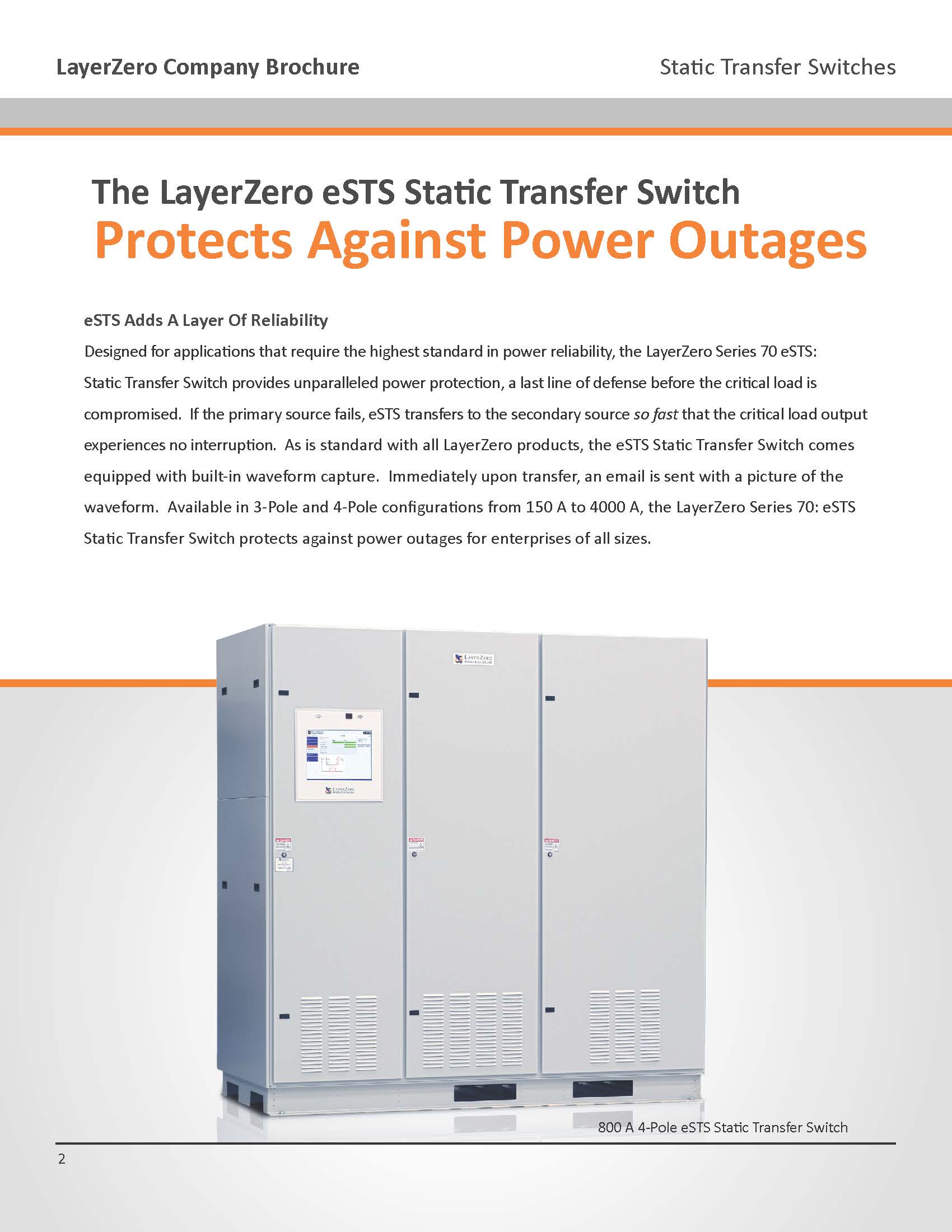

The LayerZero eSTS Static Transfer Switch - Protects Against Power Outages; Series 70 eSTS overview with 800 A 4-Pole unit photo

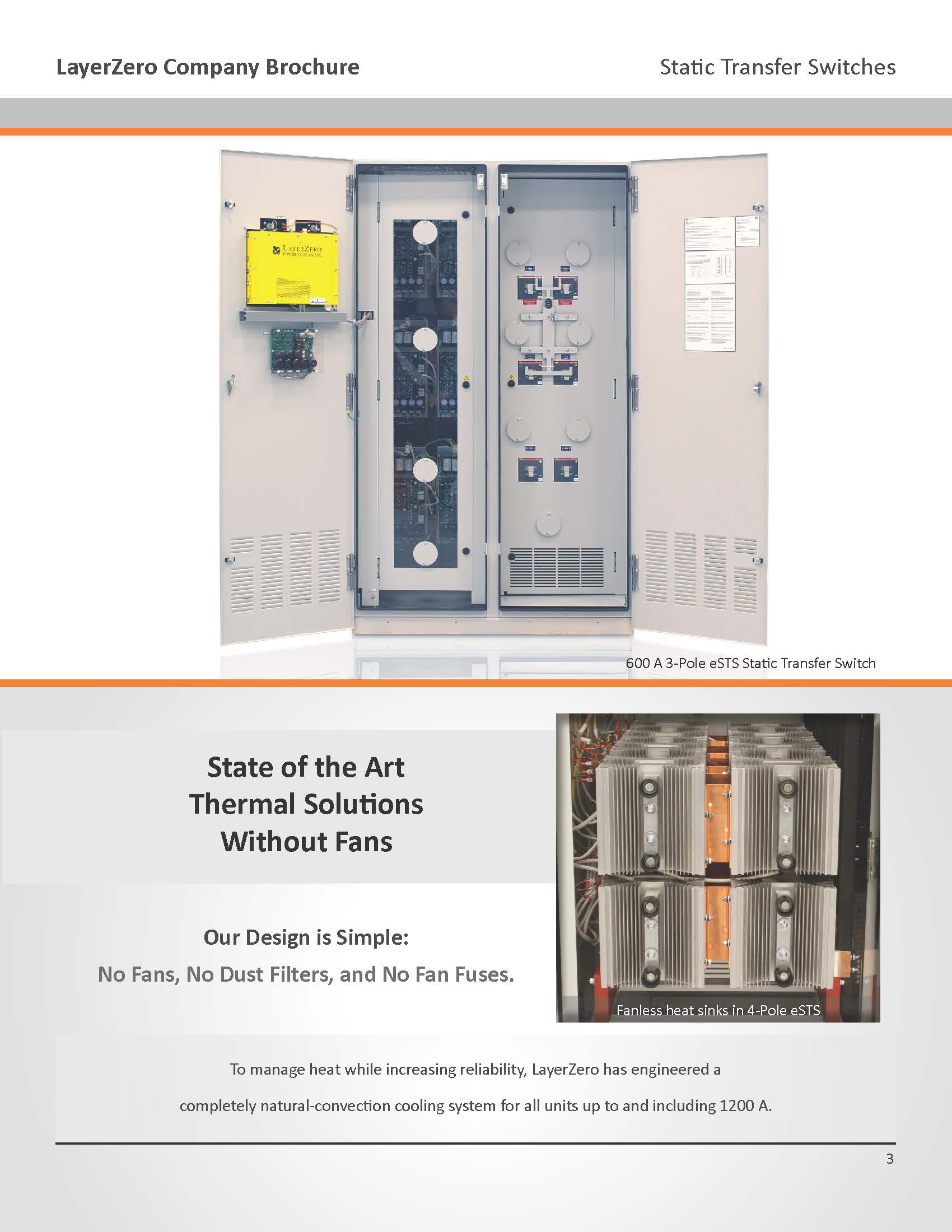

State of the Art Thermal Solutions Without Fans - interior of 600 A 3-Pole eSTS and fanless heat sinks in 4-Pole eSTS

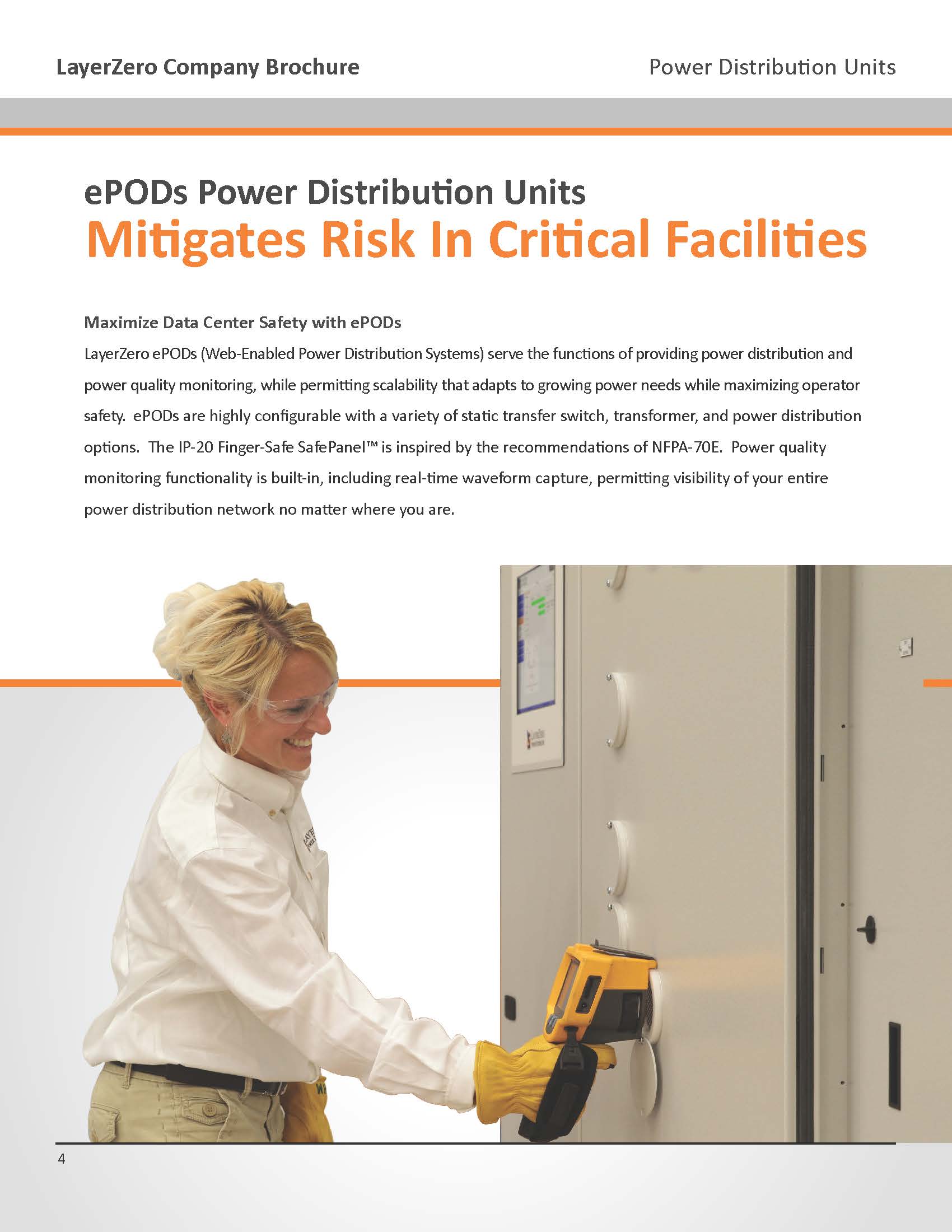

ePODs Power Distribution Units - Mitigates Risk in Critical Facilities; technician performing IR scan on equipment

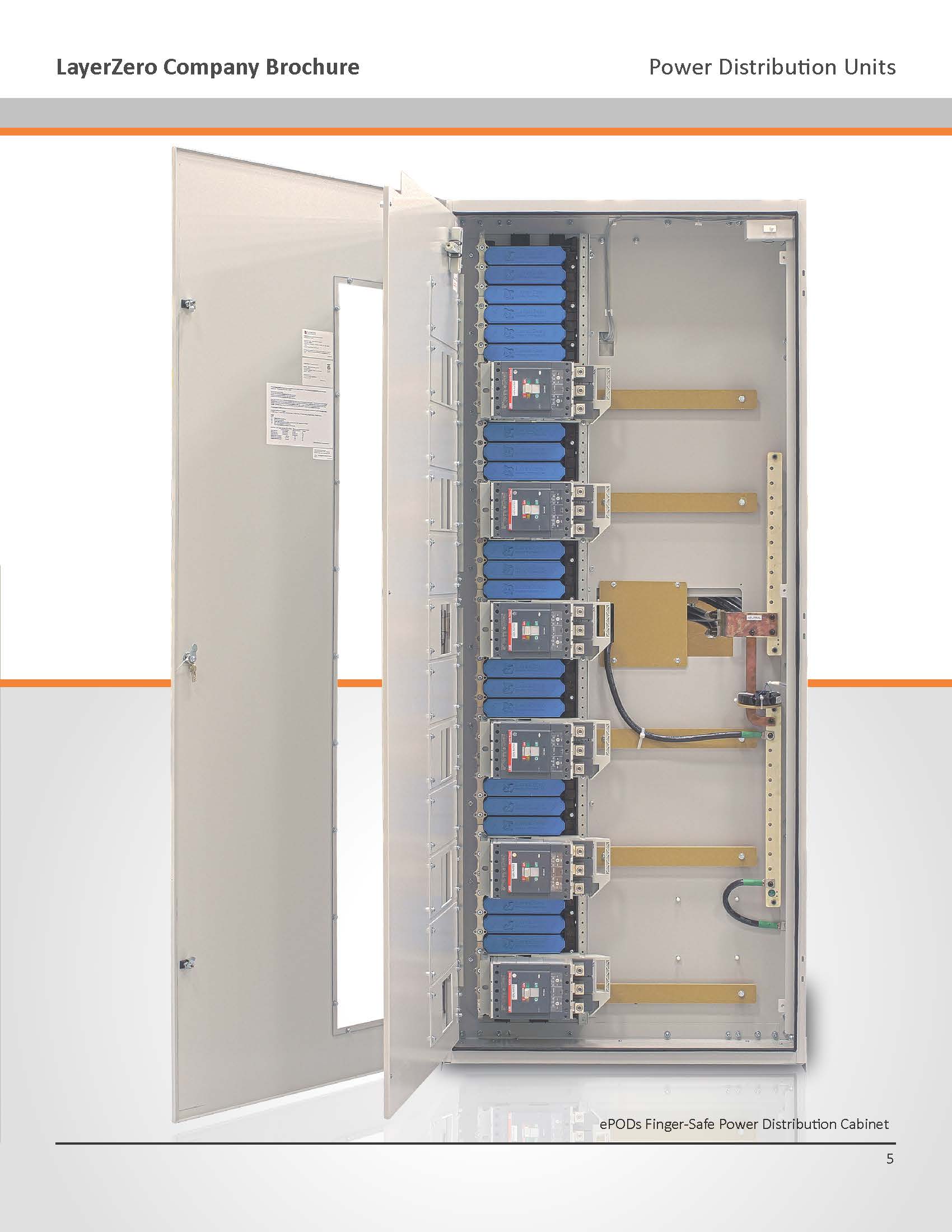

ePODs finger-safe power distribution cabinet - interior view with breakers and bus arrangement

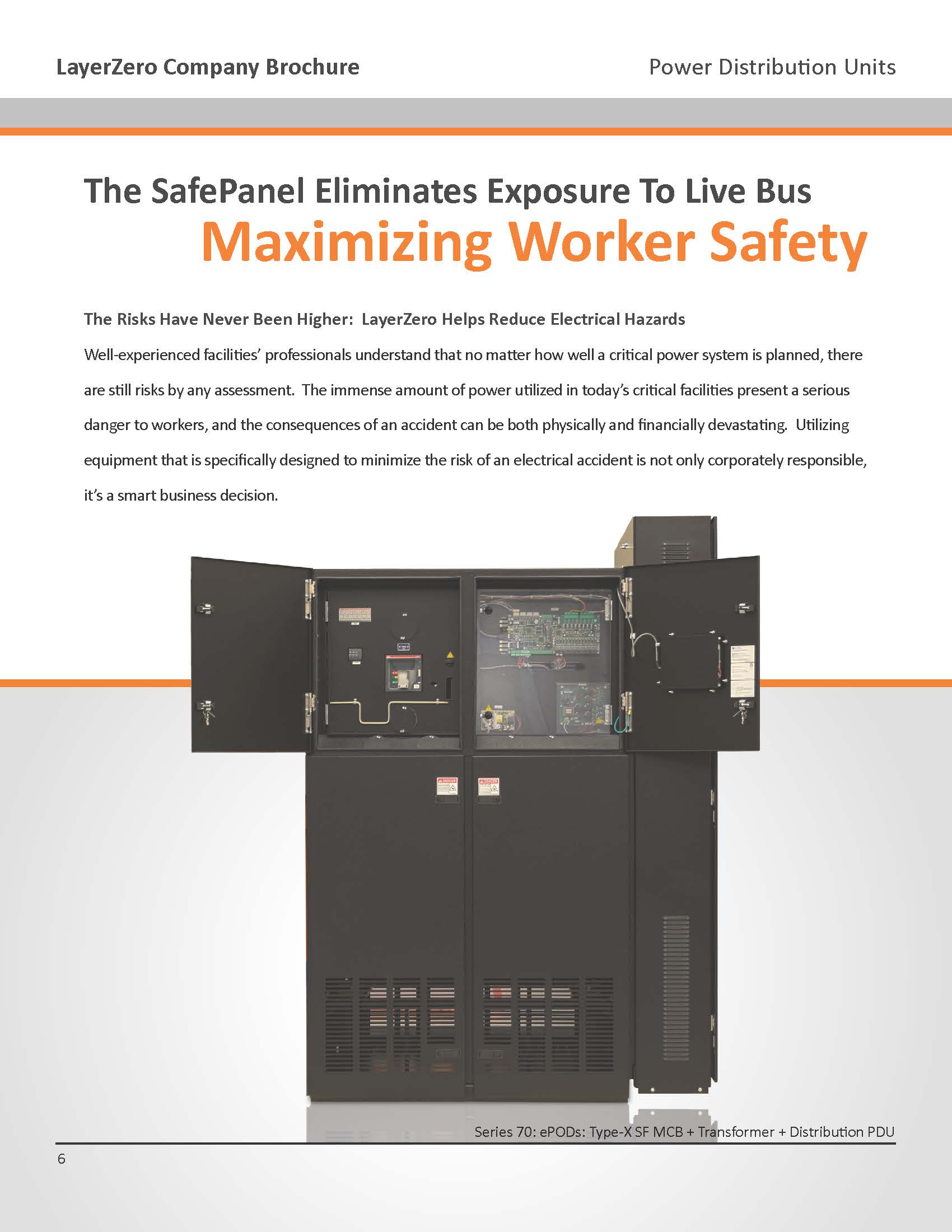

SafePanel eliminates exposure to live bus - Maximizing worker safety; Series 70 ePODs Type-X SF MCB + Transformer + Distribution PDU

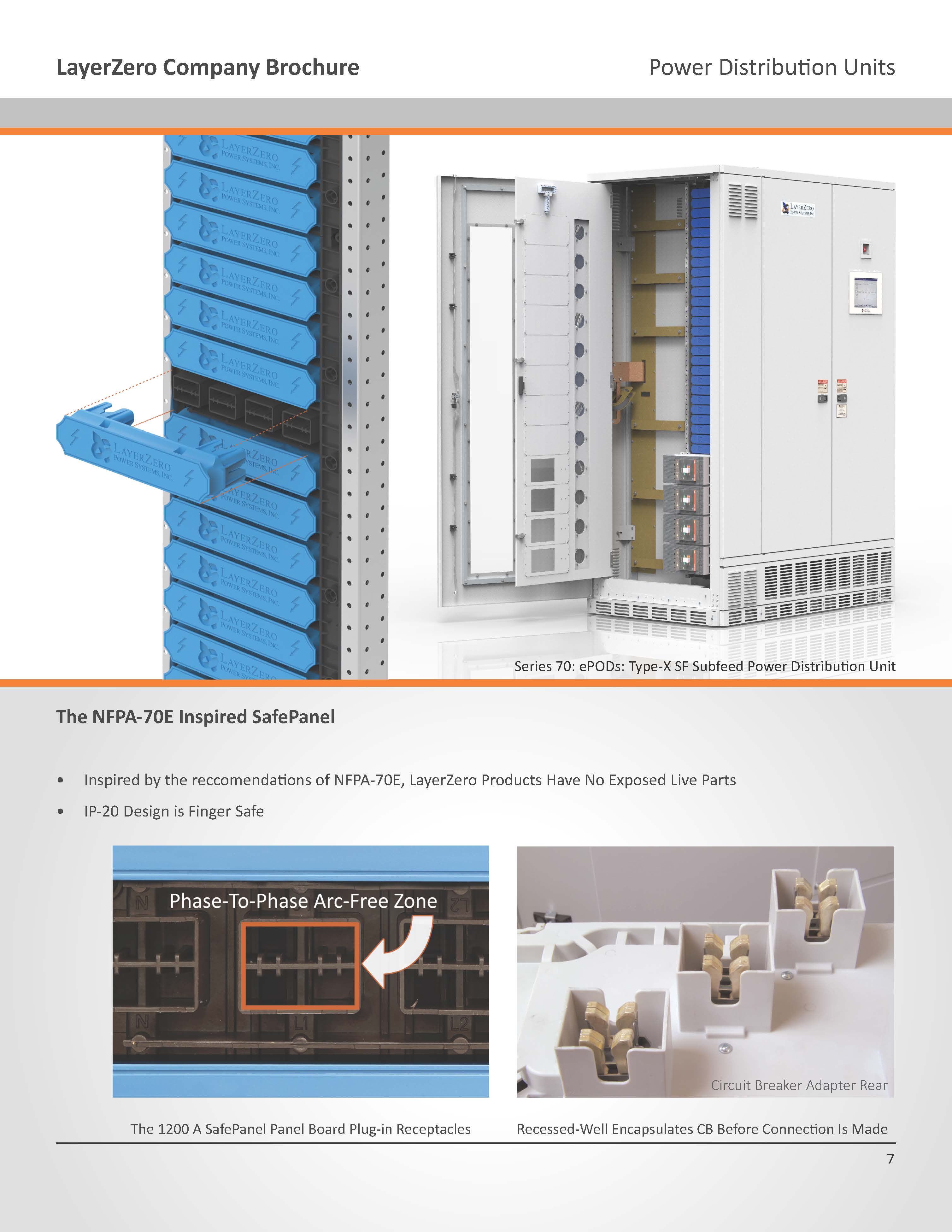

NFPA-70E inspired SafePanel - IP-20 finger-safe; recessed-well plug-in receptacles and circuit breaker adapter rear; Series 70 ePODs Type-X SF subfeed

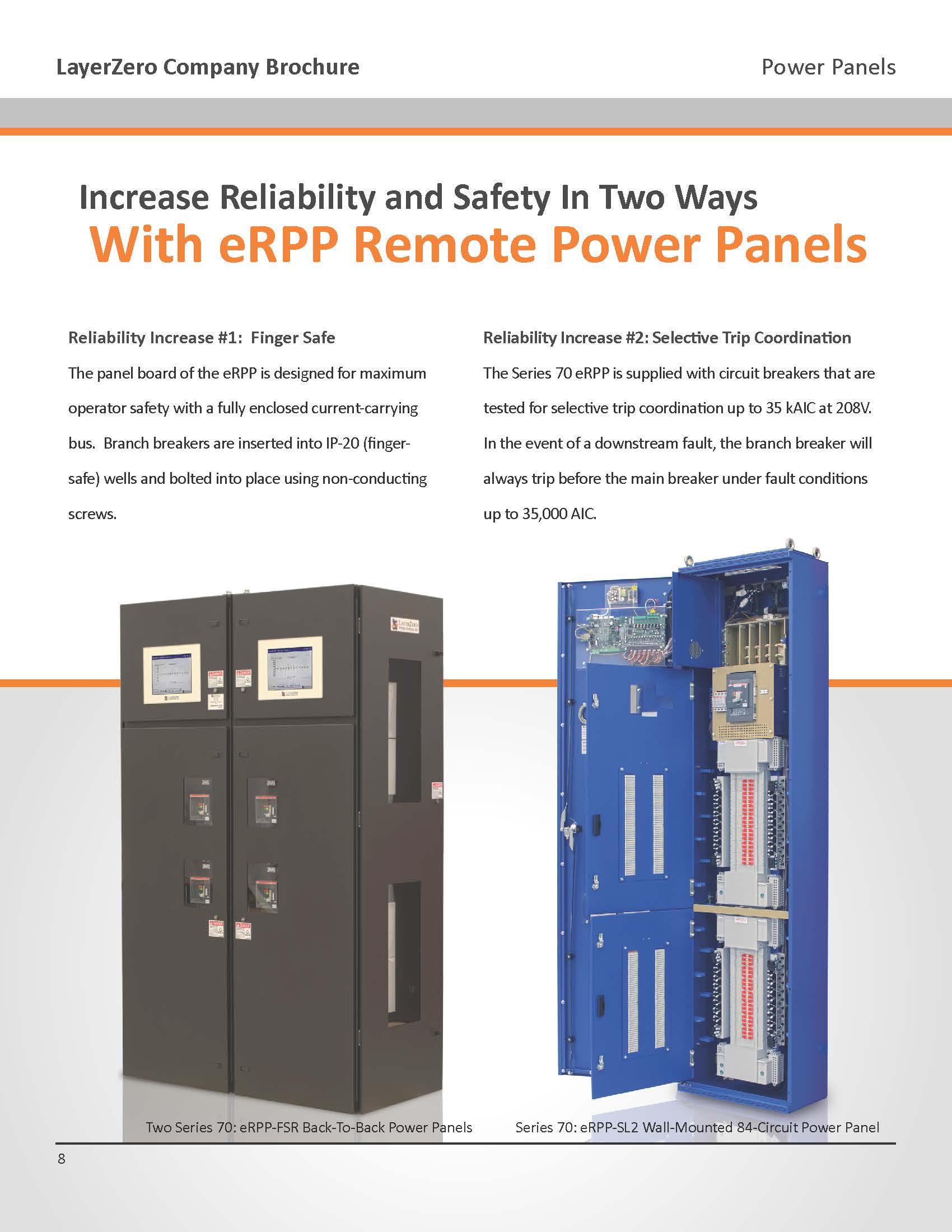

Increase Reliability & Safety in two ways with eRPP Remote Power Panels - finger-safe design and selective trip coordination; eRPP-FSR back-to-back and eRPP-SL2 wall-mounted

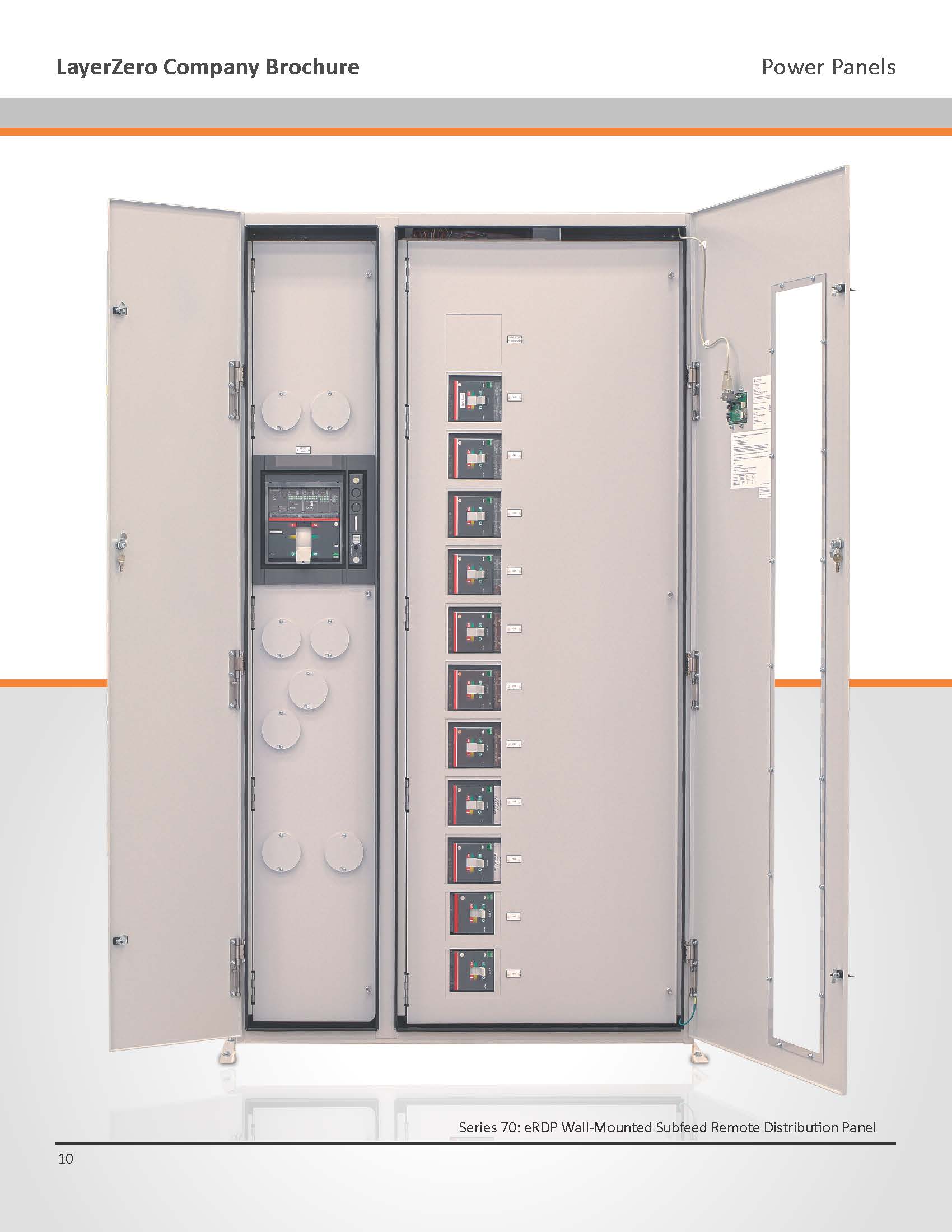

Series 70 eRDP - wall-mounted subfeed remote distribution panel; enclosure open showing breakers and metering

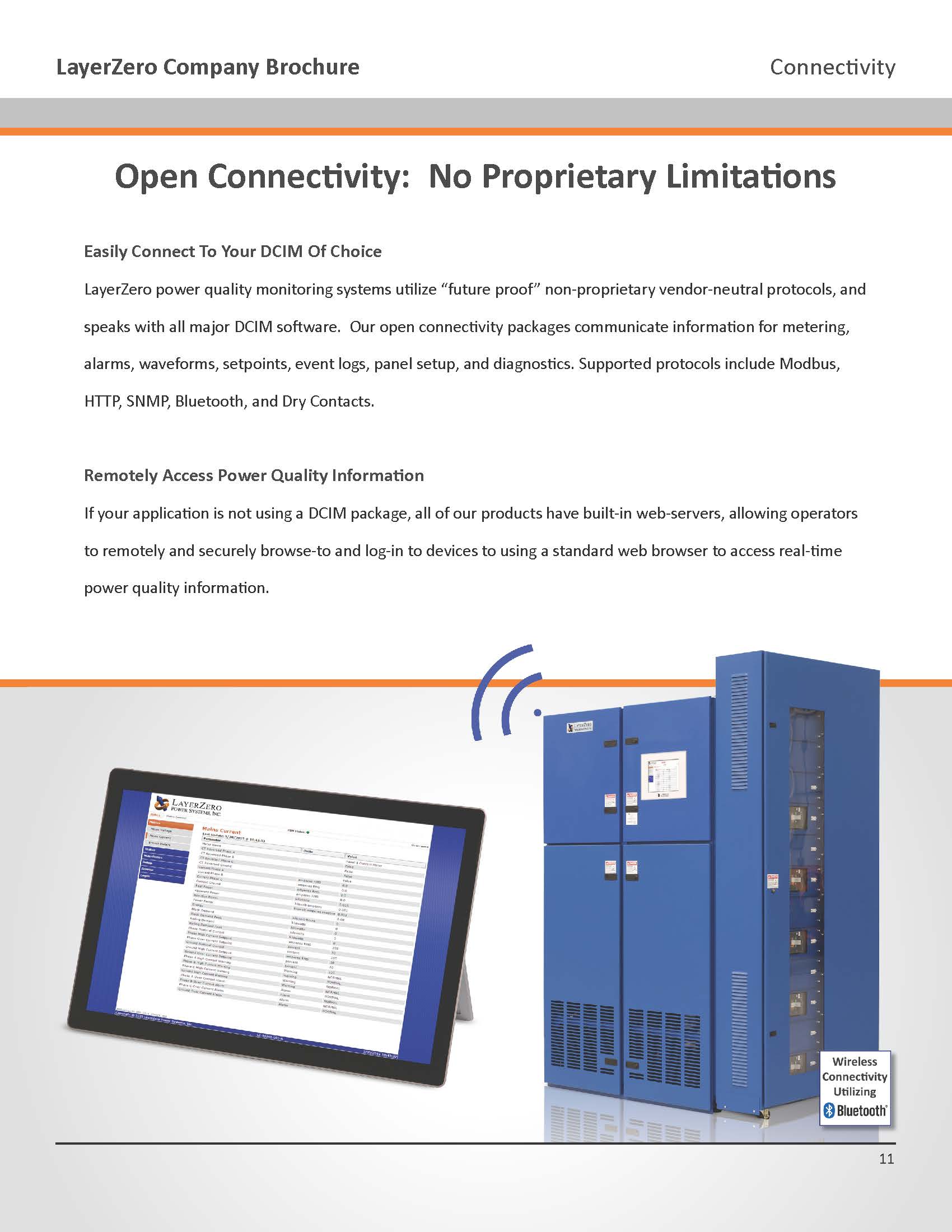

Open Connectivity: No Proprietary Limitations - supports Modbus, HTTP, SNMP, Bluetooth, dry contacts; tablet UI and blue equipment cabinets

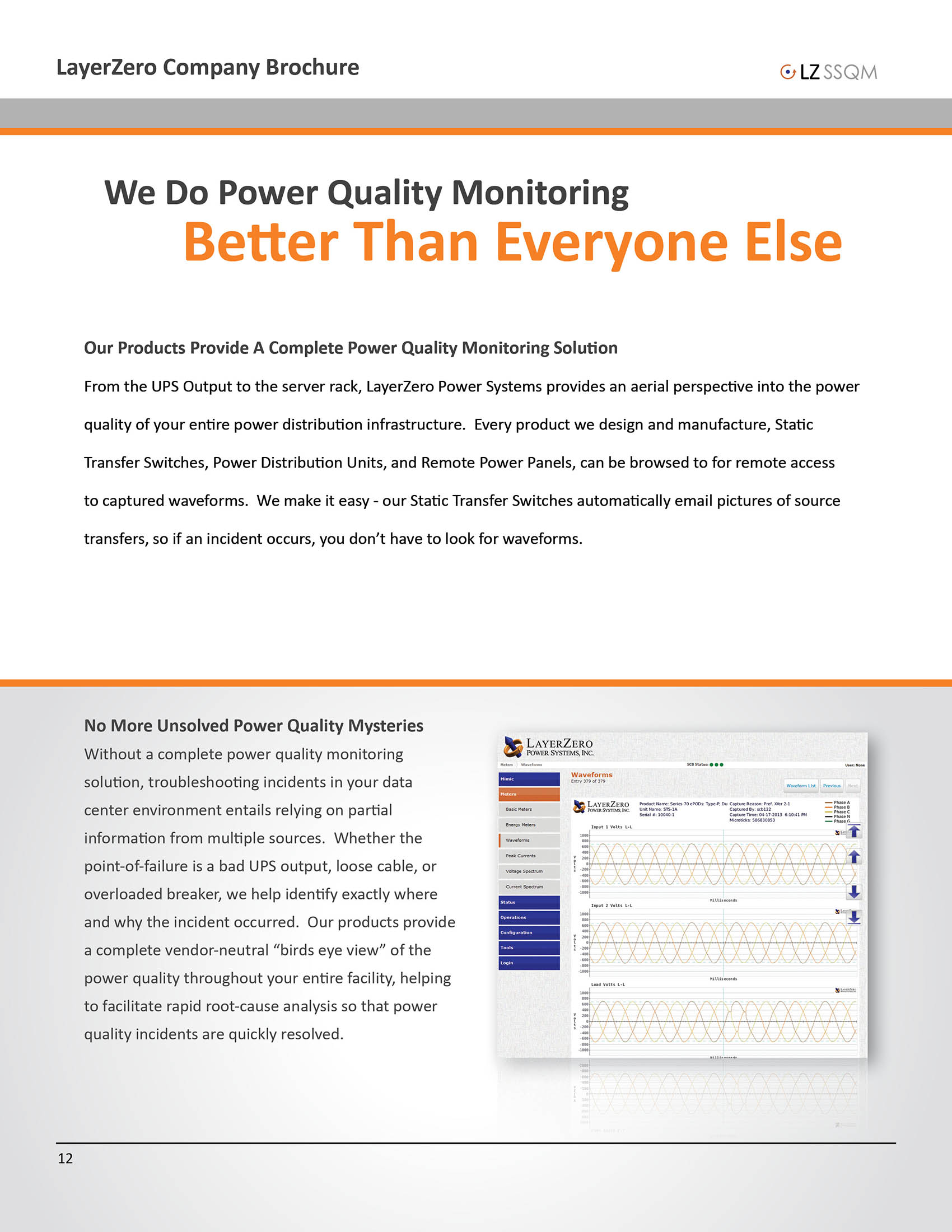

We Do Power Quality Monitoring Better Than Everyone Else - vendor-neutral view of power quality; waveform email capture example

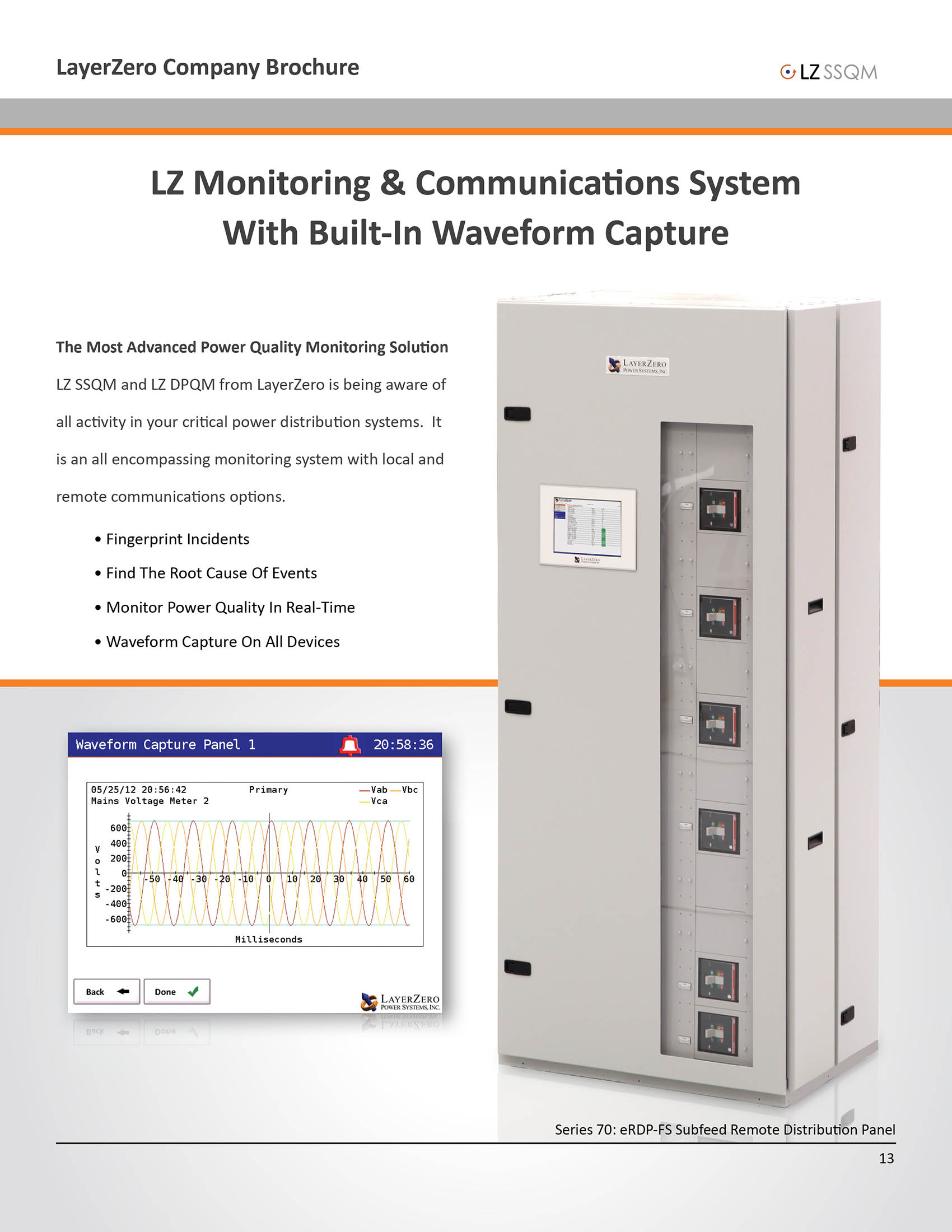

LZ Monitoring & Communications System with built-in waveform capture - fingerprint incidents, find root causes, real-time monitoring; Series 70 eRDP-FS panel

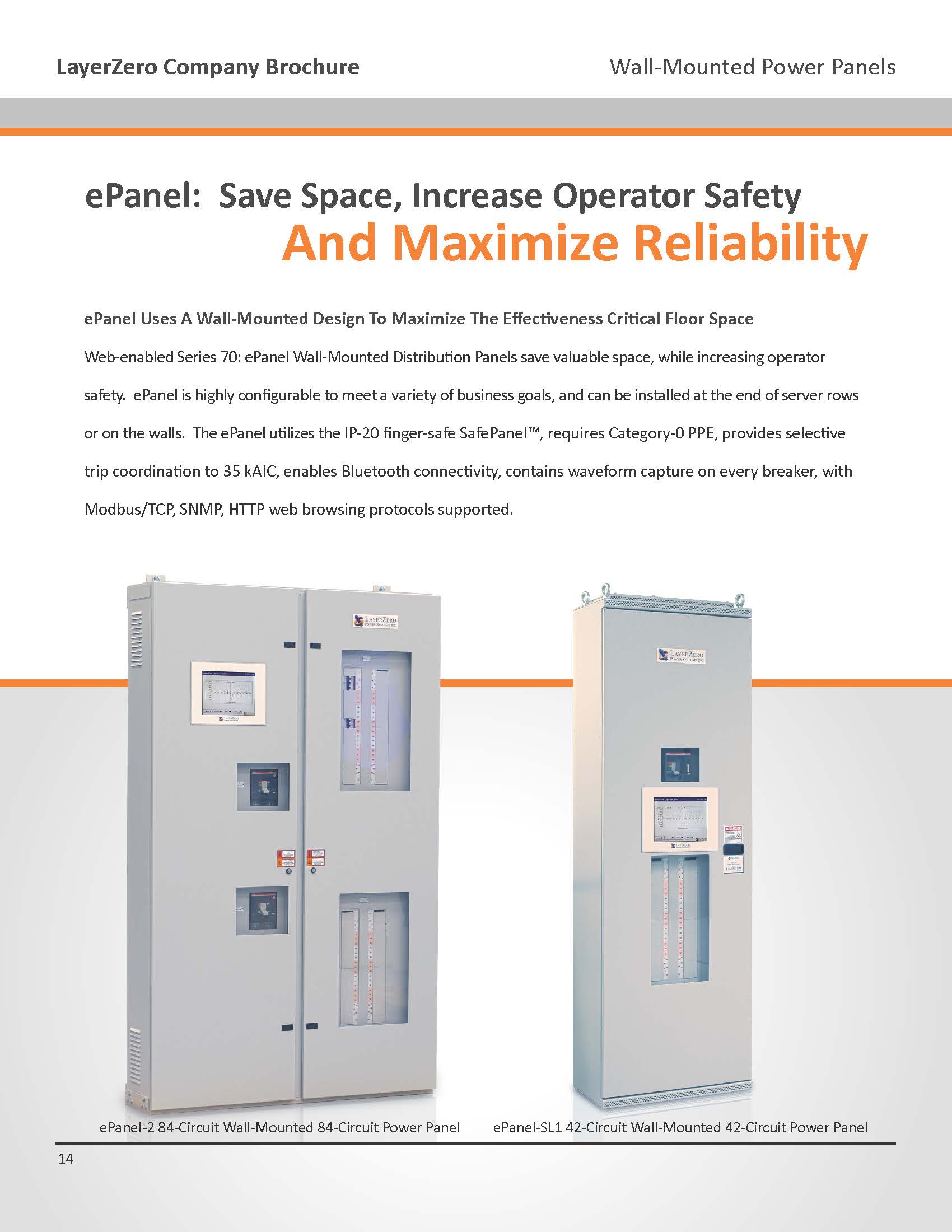

ePanel: Save space, increase operator safety, and maximize reliability - ePanel-2 84-circuit and ePanel-SL1 42-circuit wall-mounted power panels

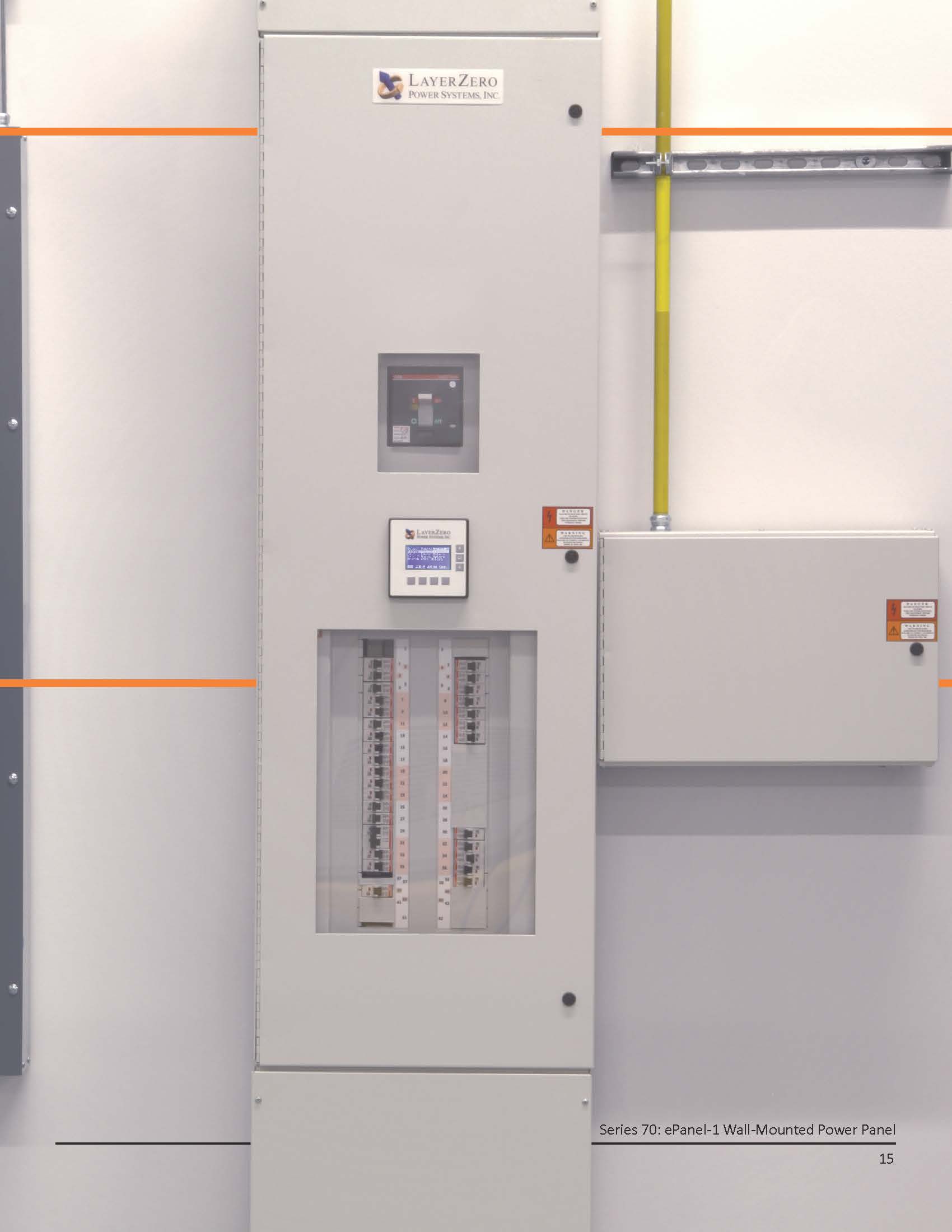

Series 70 ePanel-1 - wall-mounted power panel installed; front view with metering window

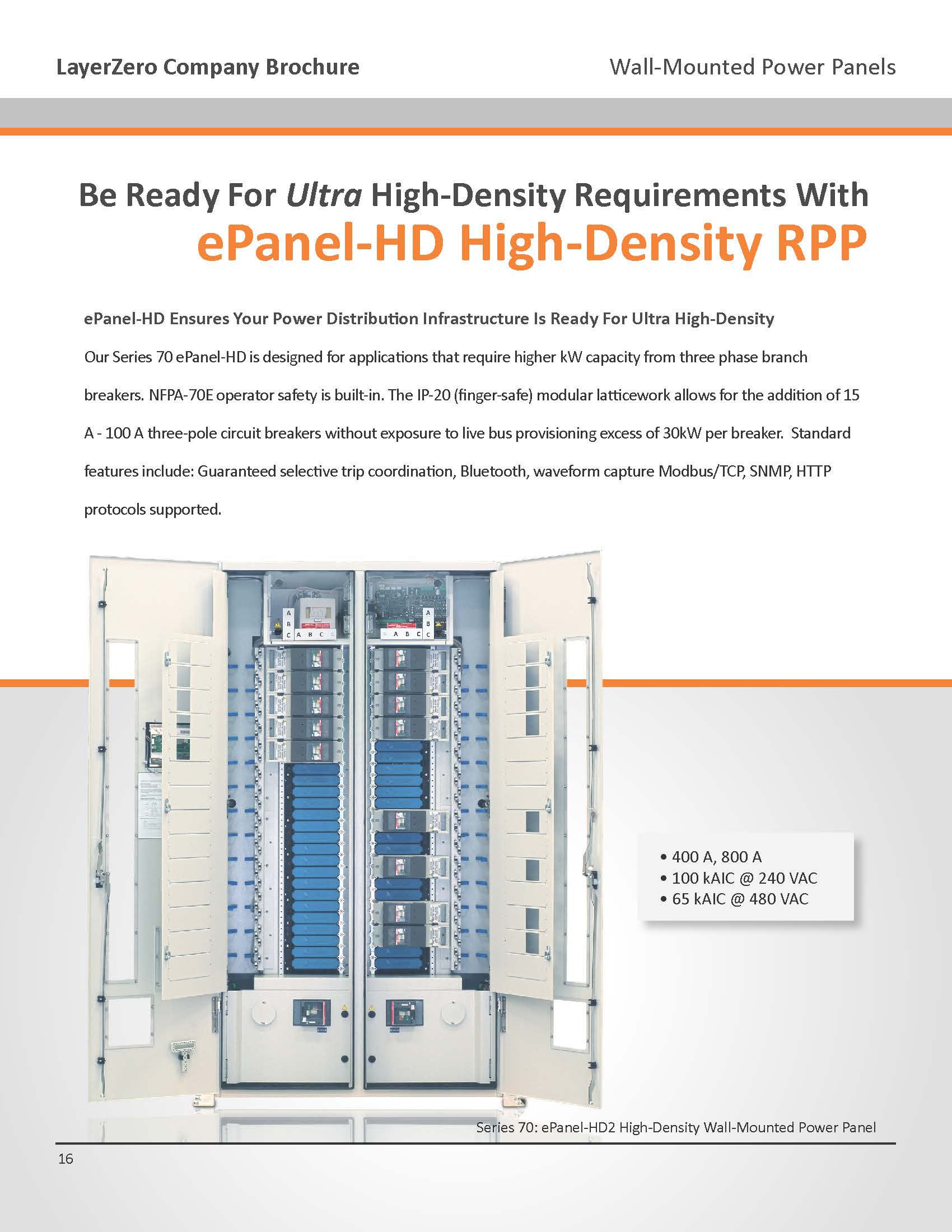

Be ready for ultra high-density with ePanel-HD High-Density RPP - 400 A/800 A; 100 kAIC @ 240 VAC; 65 kAIC @ 480 VAC; dual-column interior layout

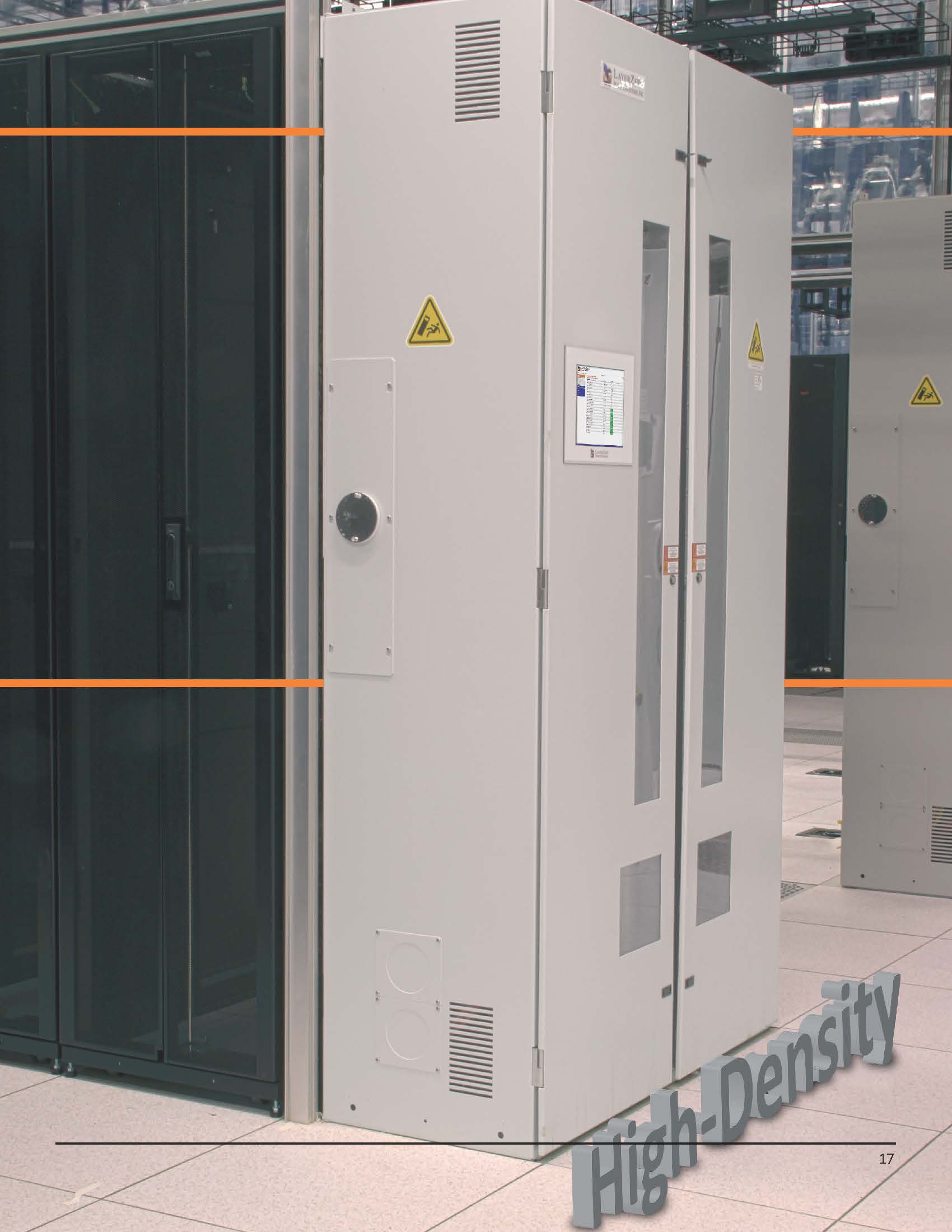

High-density installation photo - ePanel-HD cabinet on raised floor in data center aisle

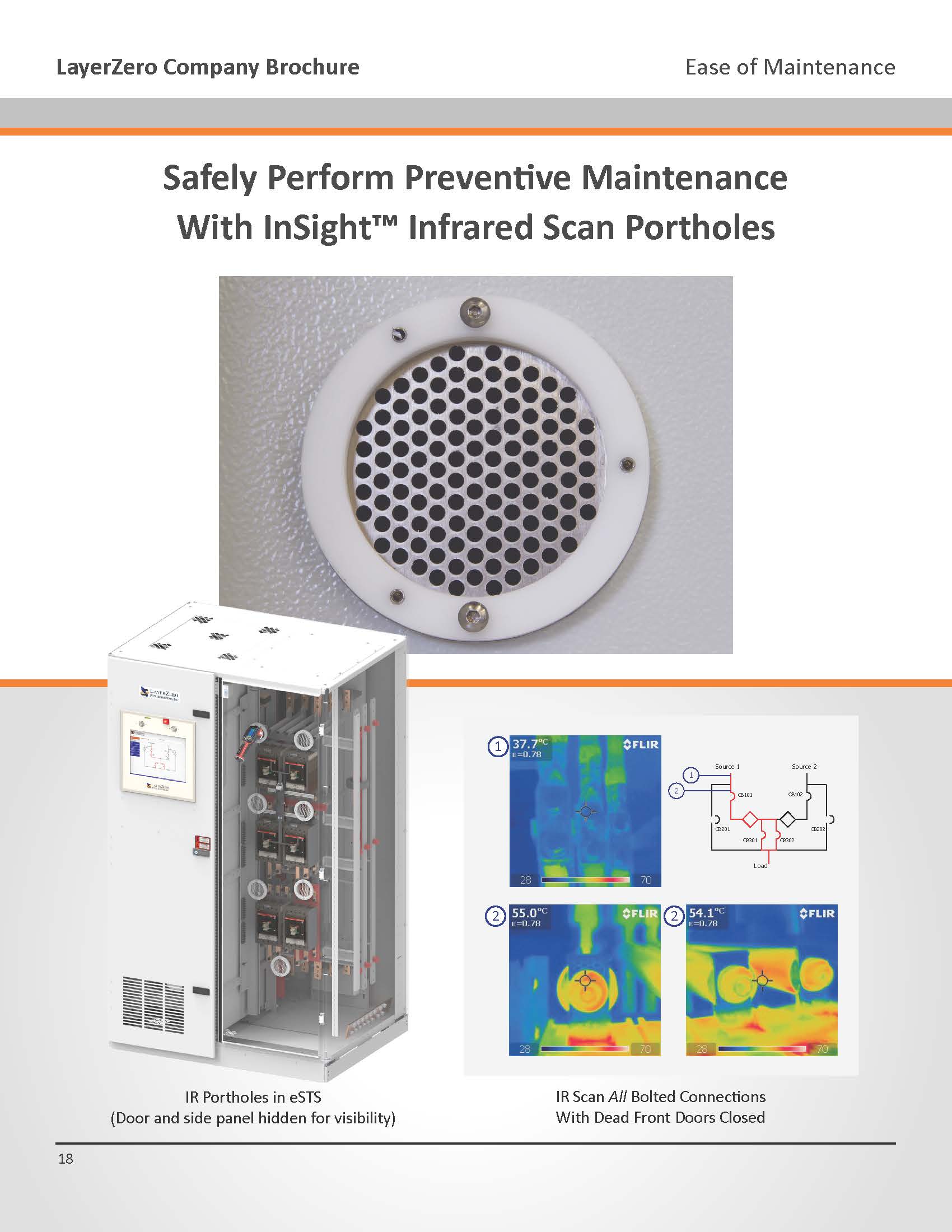

Safely perform preventive maintenance with InSight infrared scan portholes - IR portholes in eSTS; thermography of bolted connections

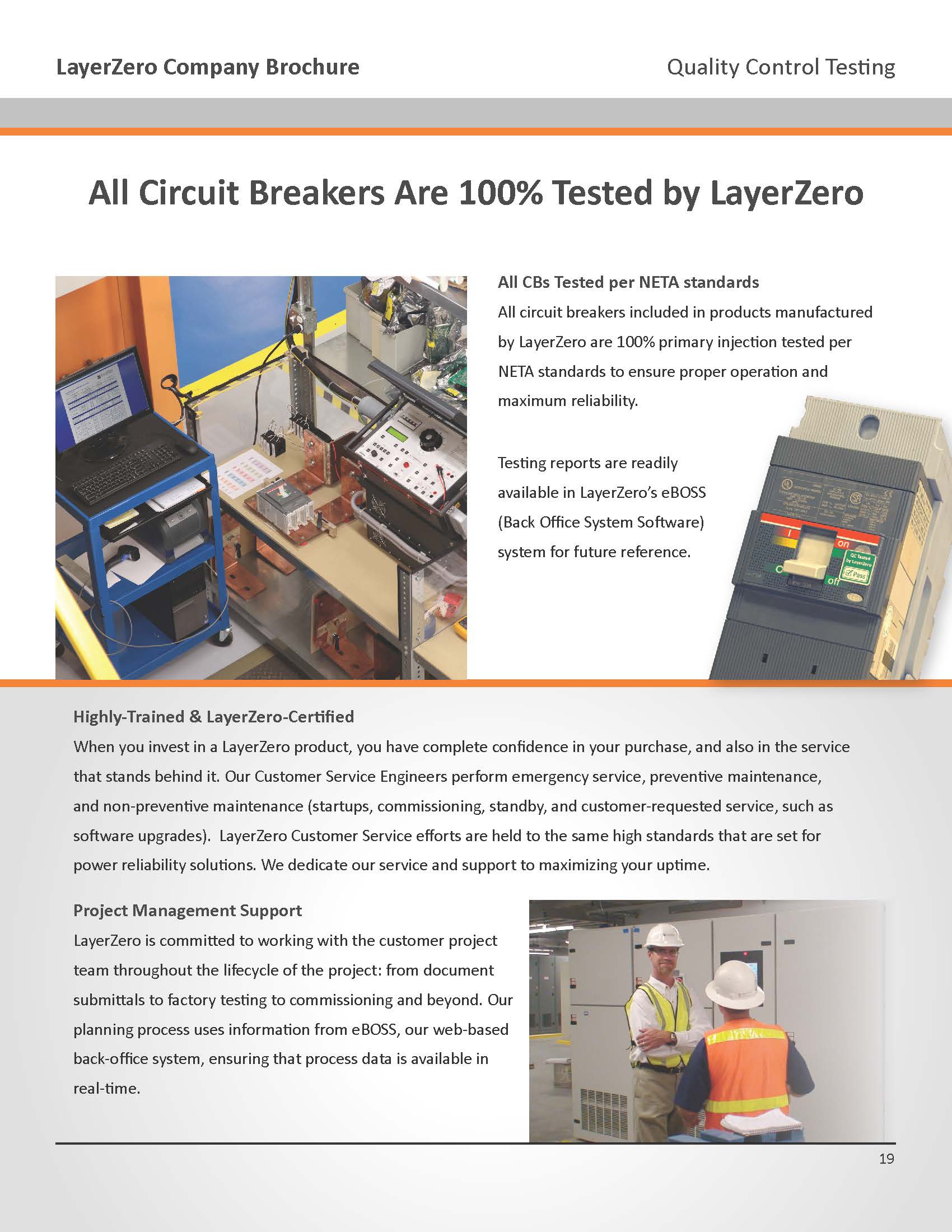

All circuit breakers are 100% tested by LayerZero - primary injection tested per NETA; reports available in eBOSS; service and project management support

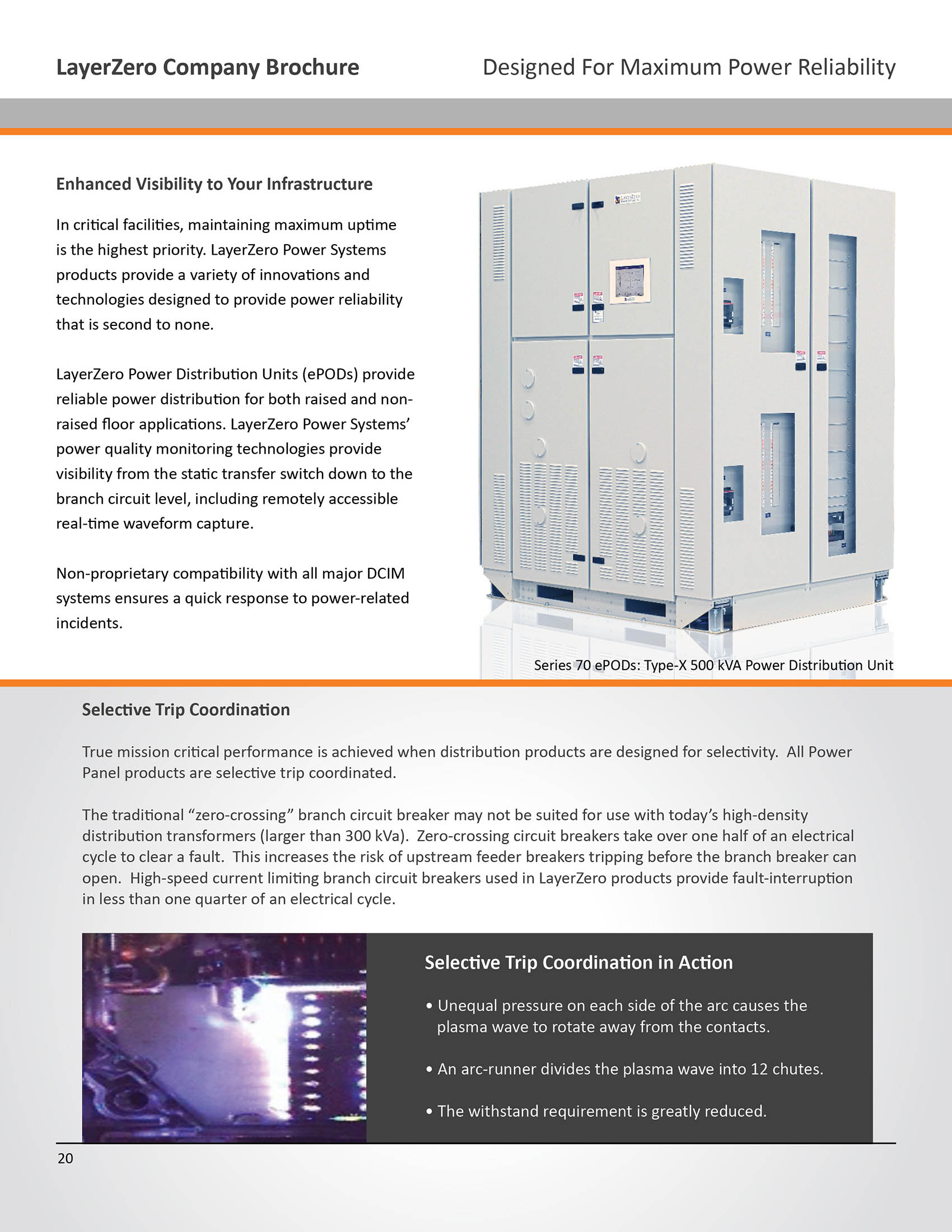

Designed for maximum power reliability - ePODs Type-X 500 kVA unit; selective trip coordination explained with arc-runner and plasma wave diagram

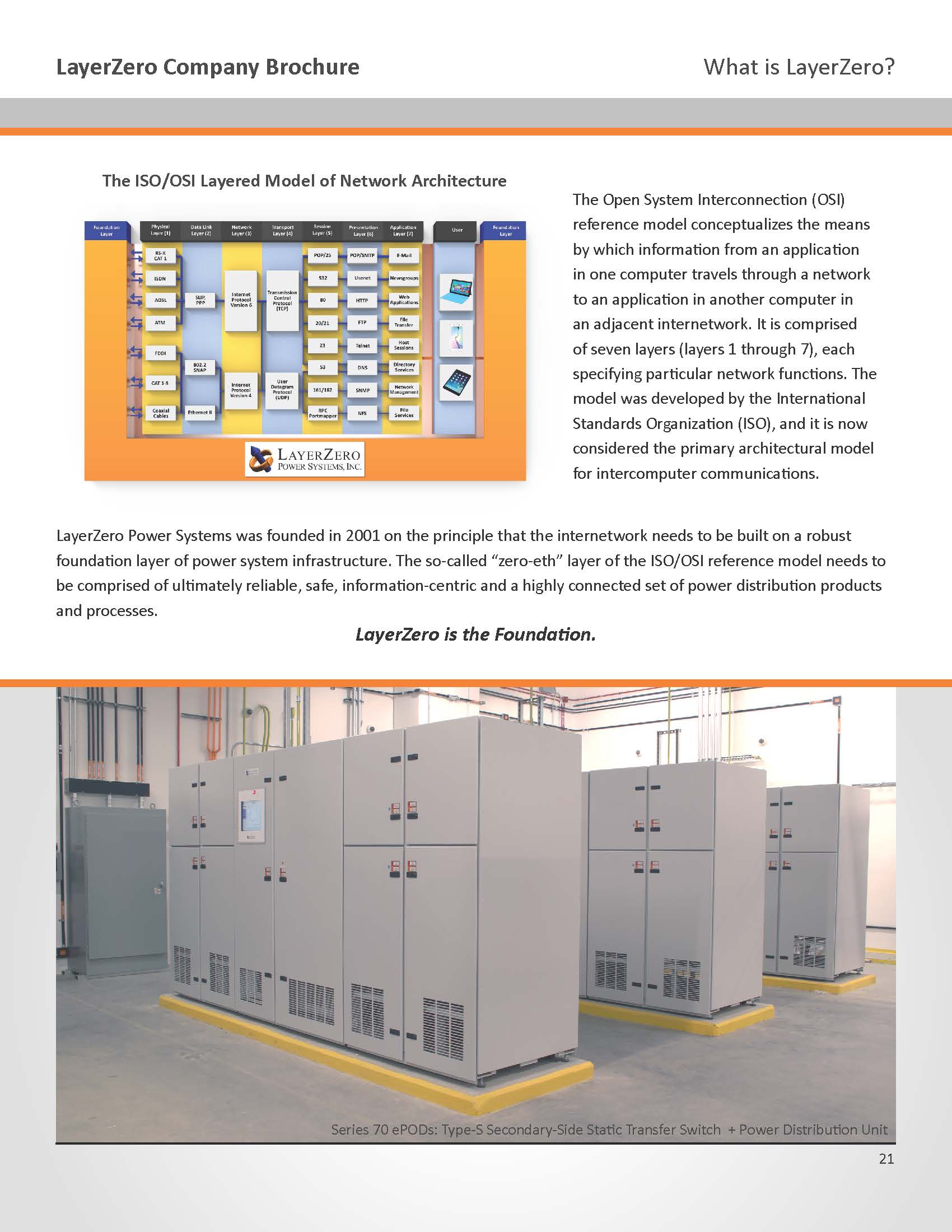

What is LayerZero? ISO/OSI layered model explanation; LayerZero as the foundation; photo of ePODs Type-S secondary-side STS + PDU lineup

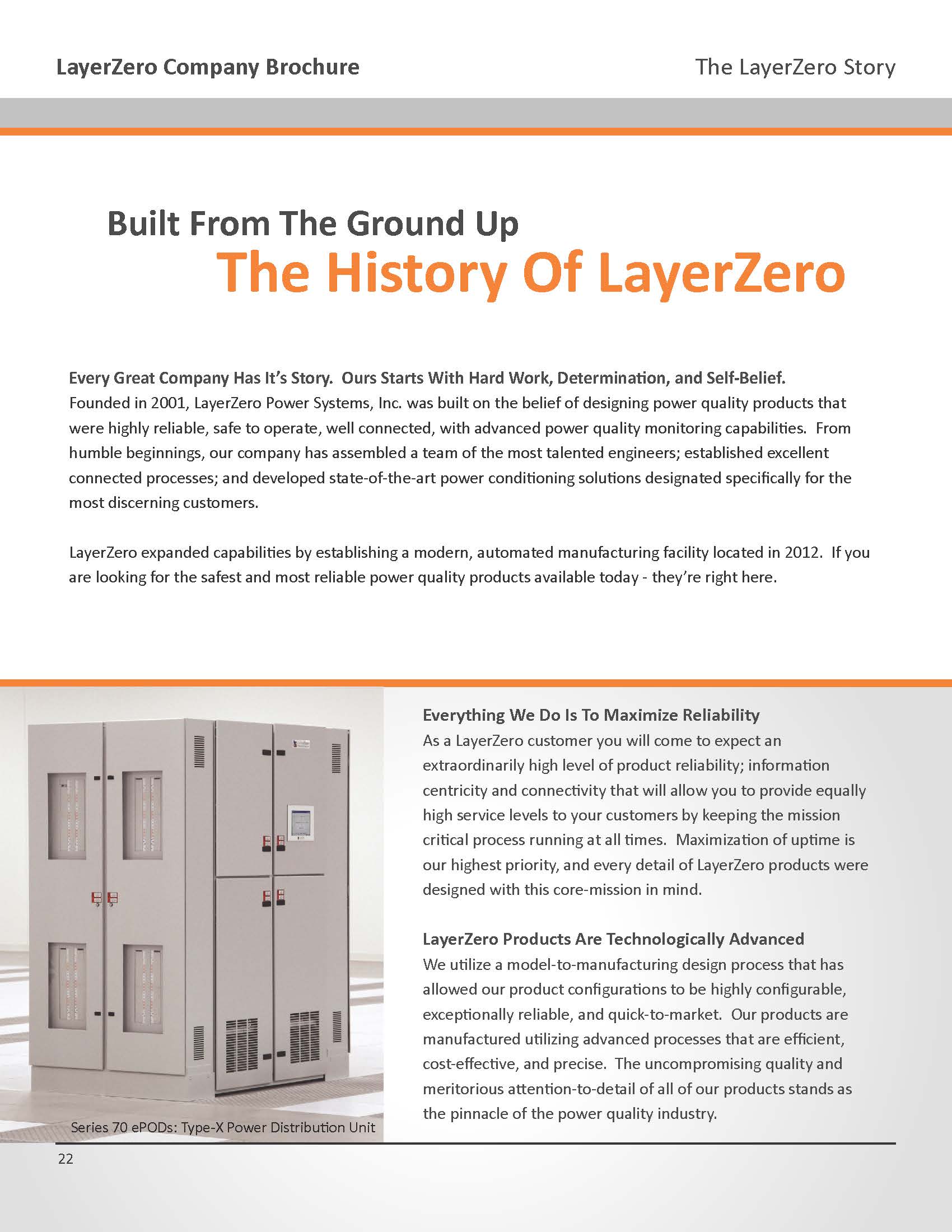

Built from the ground up - The History of LayerZero; reliability focus and technologically advanced products; ePODs Type-X photo

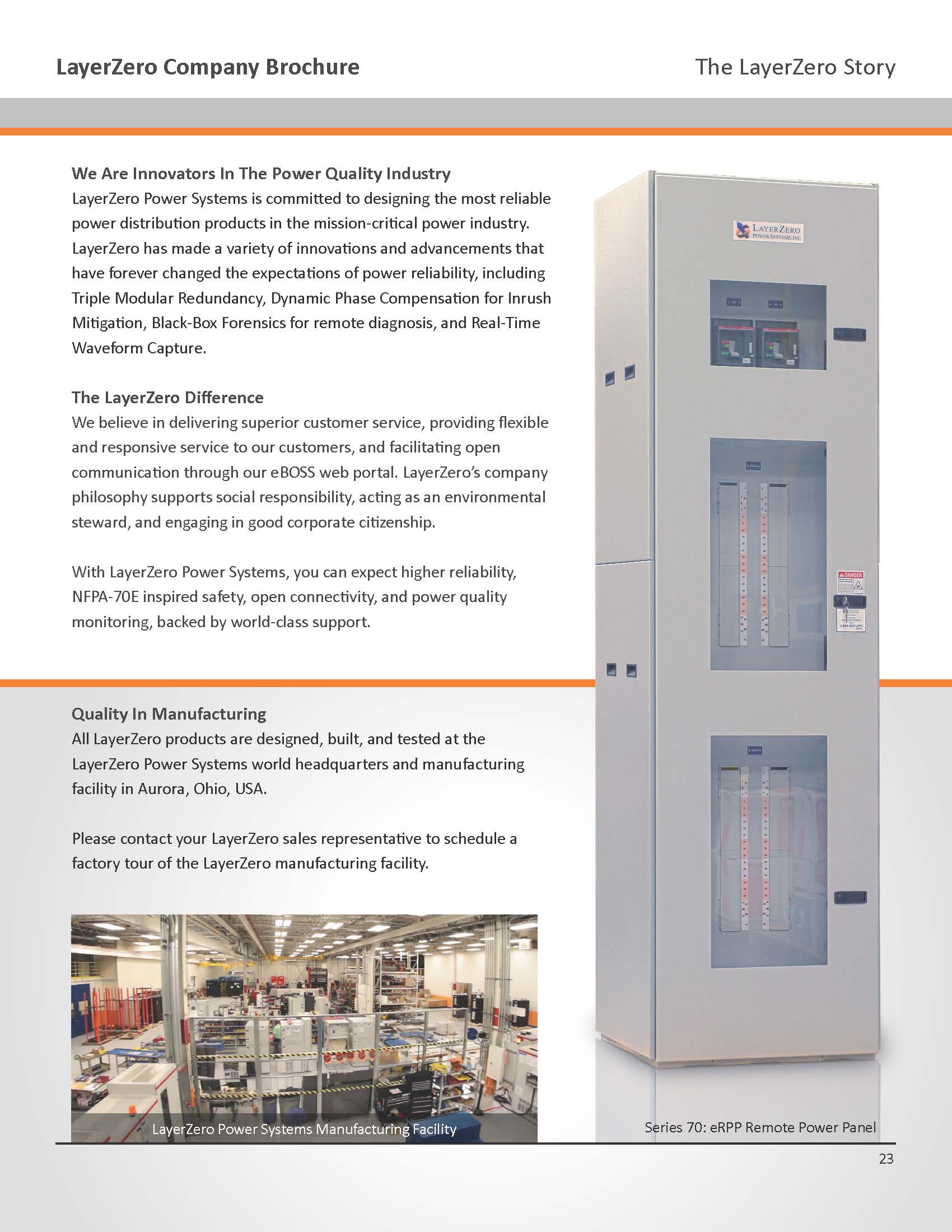

We are innovators in the power quality industry - TMR, dynamic phase compensation for inrush, Black-Box Forensics, real-time waveform capture; quality in manufacturing (Aurora, Ohio)
Back-page lead-in - Series 70 eRPP remote power panel product image beside quality/manufacturing copy

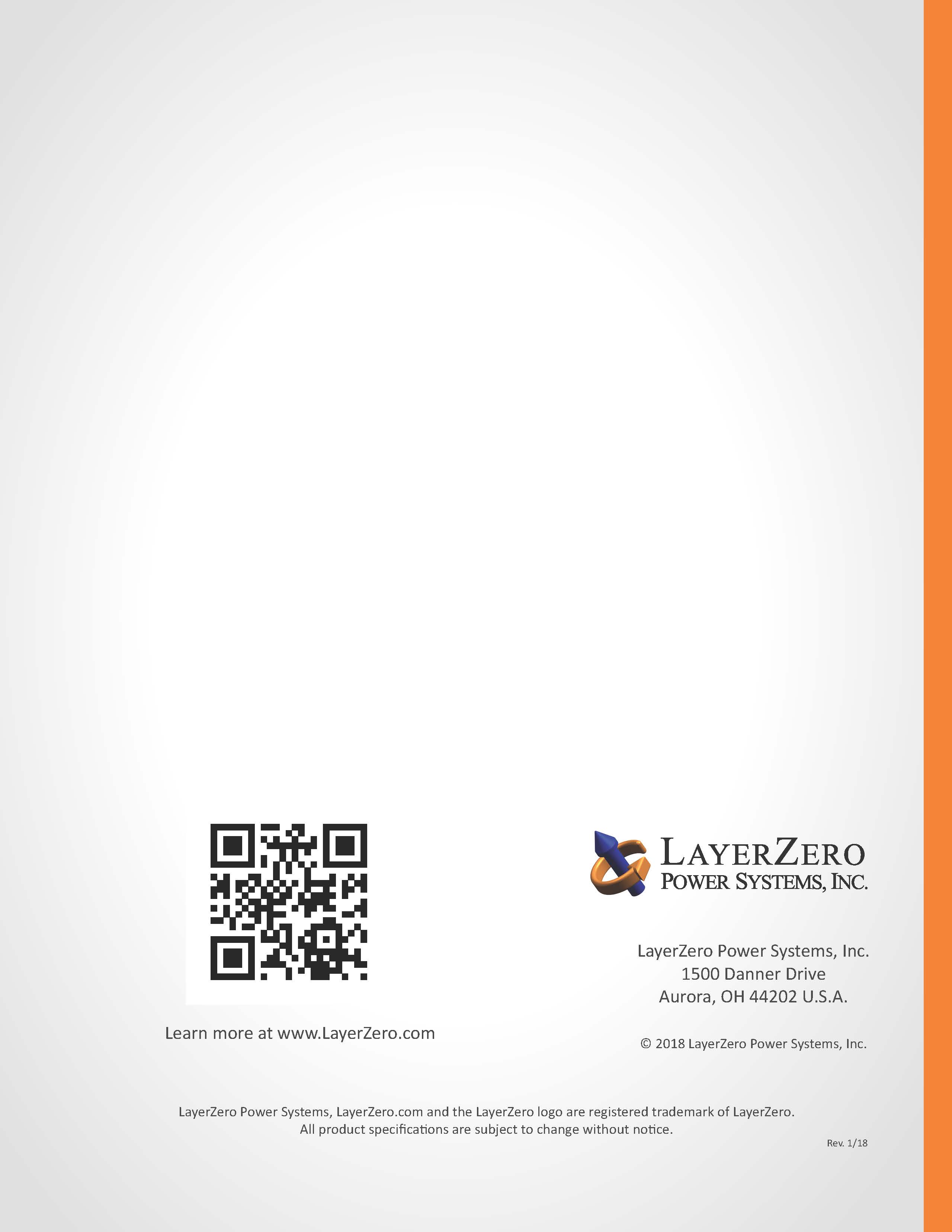

Back cover - QR code to LayerZero.com and company address (1500 Danner Drive, Aurora, OH 44202); trademarks and Rev. 1/18
