Remote Power Panels (eRPP)
Panel boards, an essential component of electrical power distribution systems, play a vital role in data centers. These boards serve as centralized points for distributing electrical power to various circuits and equipment. They receive power from a primary source, such as a Power Distribution Unit (PDU), and ensure its safe and efficient delivery to critical power loads.
In data centers, panel boards are designed to meet the specific power requirements of the facility. Equipped with main and branch circuit breakers, they provide protection against overcurrents and electrical faults, ensuring the safety of connected equipment and personnel.
Panel boards enable efficient power management and load balancing within data centers. By distributing power to specific circuits, they allow for better control and allocation of electrical resources. This allocation prevents overloading of individual circuits and promotes stable and reliable operation of critical systems.
Additionally, panel boards simplify maintenance and troubleshooting procedures in data centers. They facilitate the identification and isolation of issues by organizing power distribution into separate circuits. This segmentation minimizes downtime and enhances the ability to perform maintenance tasks without disrupting the overall operation of the data center.
Panel boards are crucial for reliable and efficient power distribution in data centers. They ensure the safe and effective delivery of electricity to critical loads, provide protection, support load balancing, and simplify maintenance procedures.

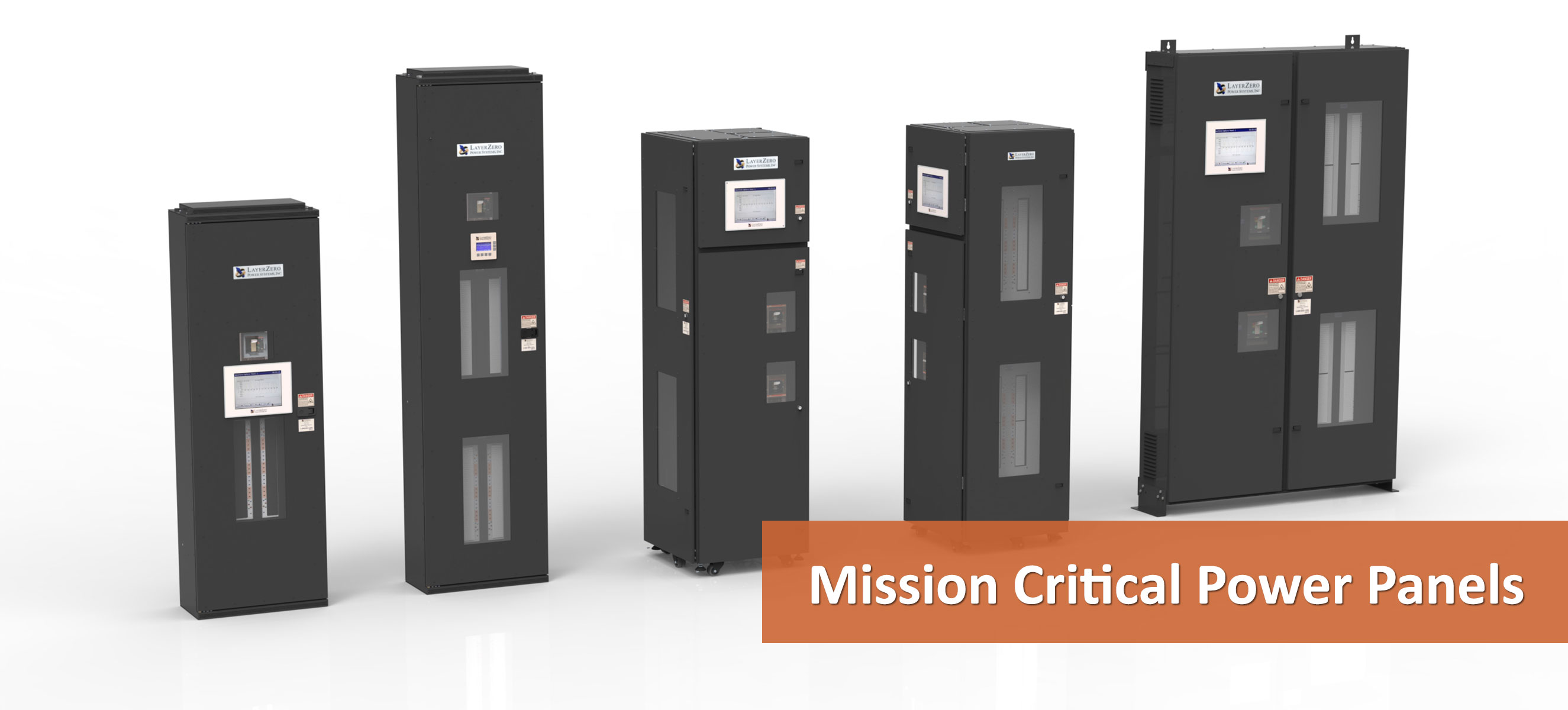

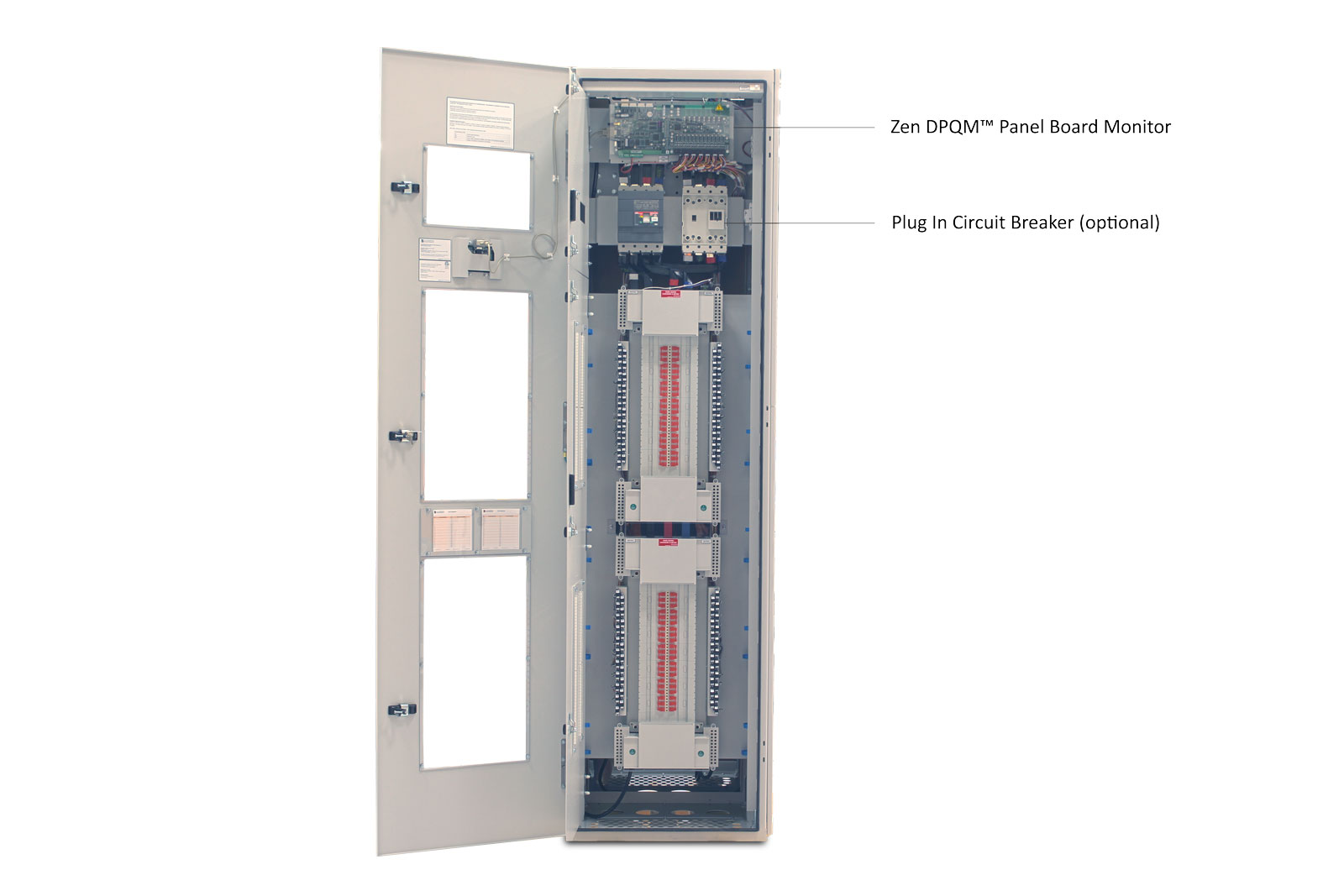

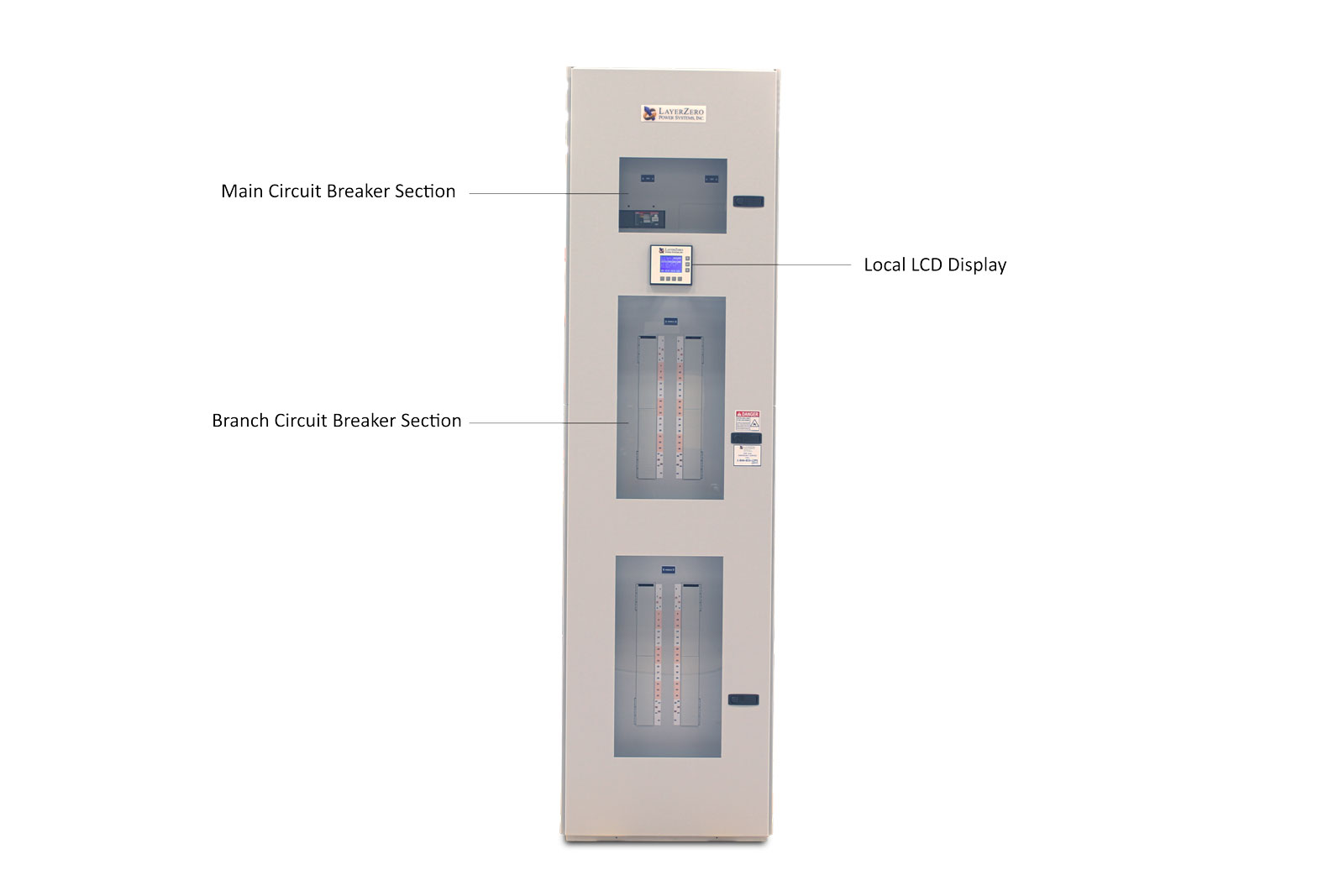

LayerZero Remote Power Panel (eRPP) Product Lines
LayerZero Power Systems eRPPs are built based on standard configurations, customized to specific needs. The designs cover a wide range of Power Distribution requirements. All units come with Power Quality Monitoring, including real-time waveform capture and ITIC plotting.
eRPPs (42-Circuit Panels)
-
SL1
The SL1 is a 42-circuit panel Remote Power Panel (RPP) with a voltage rating of 120/208 volts, a KAIC rating of 35, and a single main breaker up to 400AF. It supports (1) 42-circuit distribution.
-

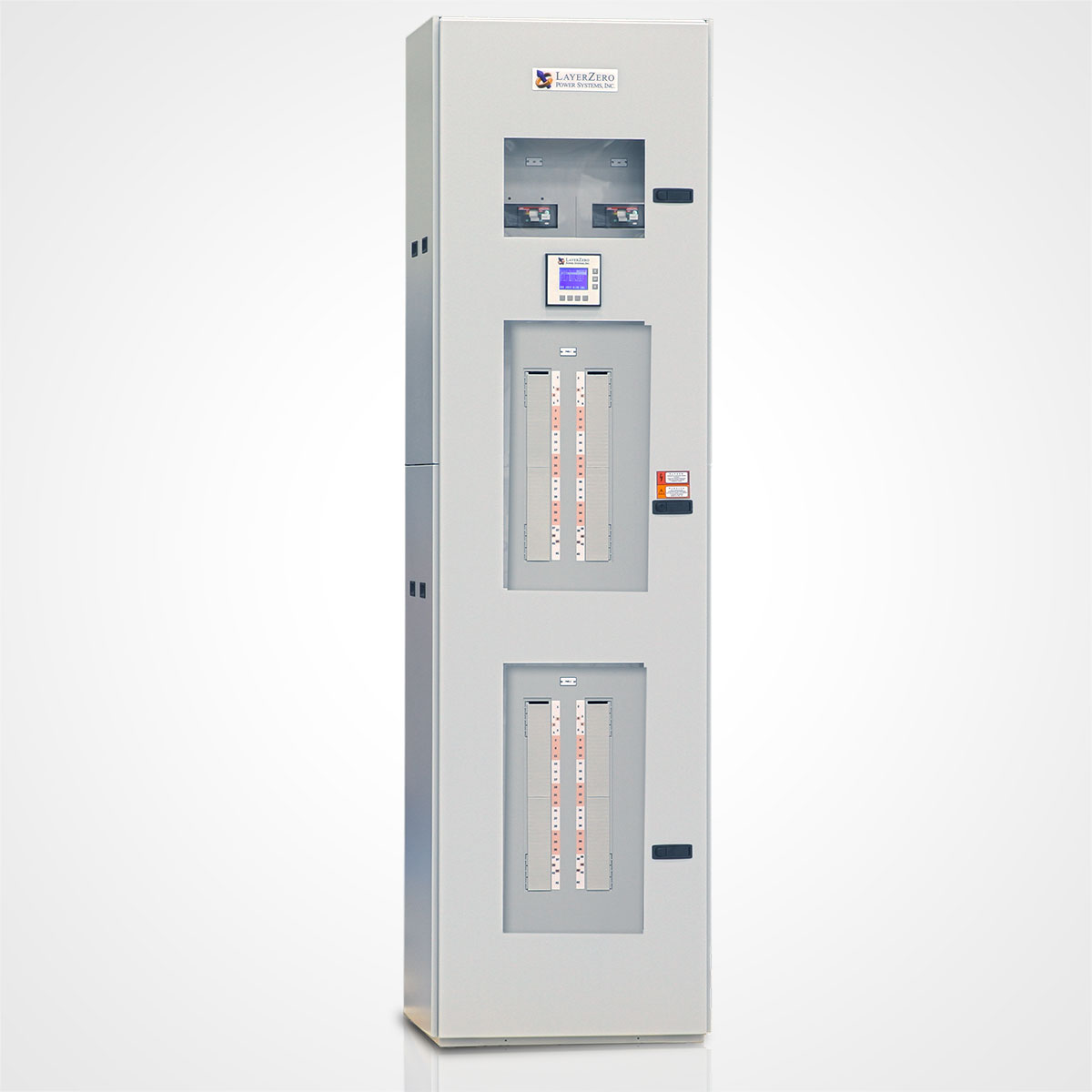

SL2
The SL2 is an 84-circuit panel Remote Power Panel (RPP) with a voltage rating of 120/208 volts, a KAIC rating of 35, and two main breakers up to 400AF each. It supports (2) 42-circuit distributions.
-
RPP-FSL
The RPP-FSL is an 84-circuit panel Remote Power Panel (RPP) with a voltage rating of 120/208 volts, a KAIC rating of 35, and two main breakers up to 400AF each. It supports (2) 42-circuit distributions.
-
RPP-FSR
The RPP-FSR is an 84-circuit panel Remote Power Panel (RPP) with a voltage rating of 120/208 volts, a KAIC rating of 35, and two main breakers up to 400AF each. It supports (2) 42-circuit distributions.
-

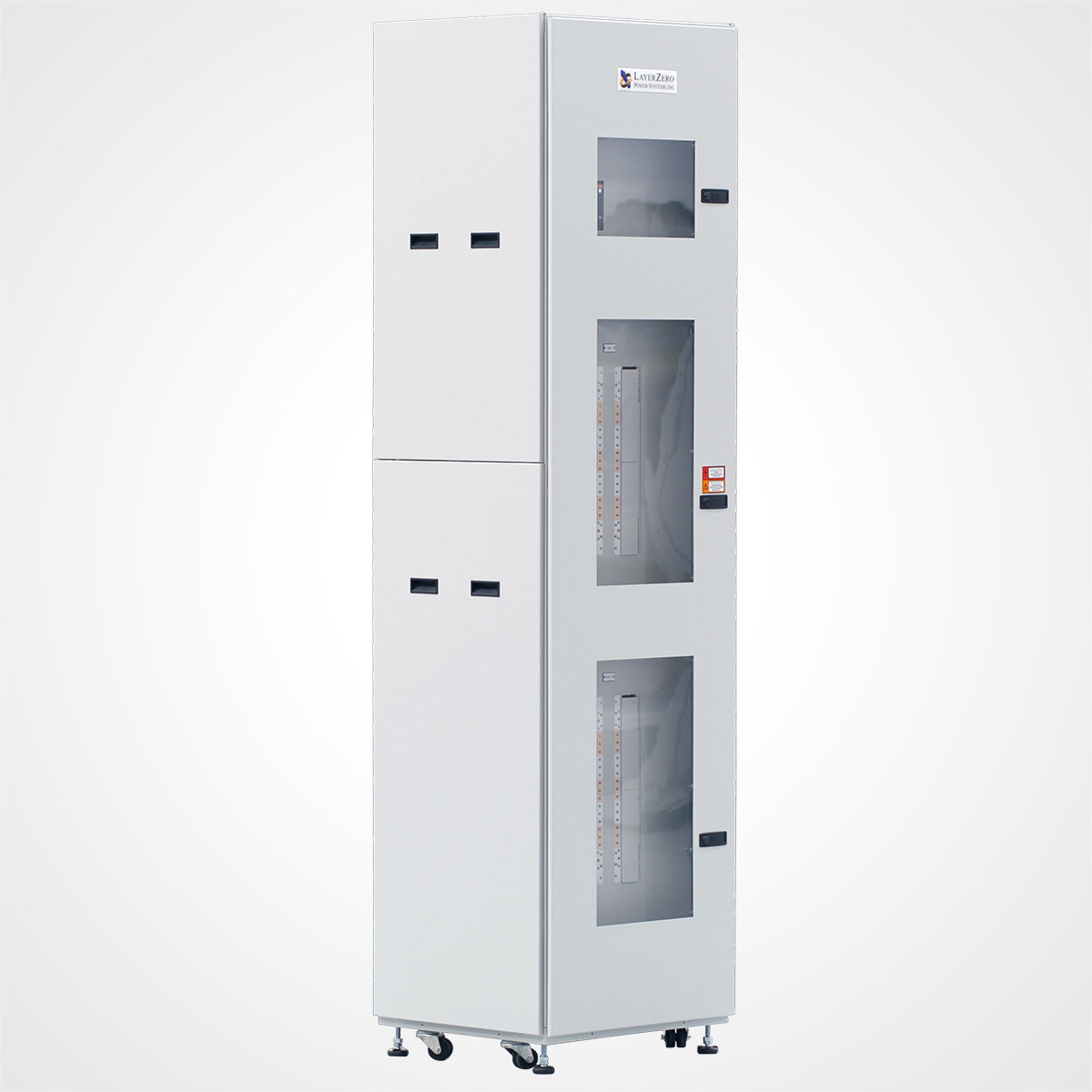

ePanel-2
The ePanel-2 is an 84-circuit panel Remote Power Panel (RPP) with a voltage rating of 120/208 volts, a KAIC rating of 35, and two main breakers up to 400AF each. It supports (2) 42-circuit distributions.
| Product Model | Voltage | KAIC | Main(s)? | Distribution | H | W | D | Weight |
|---|---|---|---|---|---|---|---|---|
| SL1 | 120/208 | 35 | 1-400AF | (1) 42-Circuit | 71" (1803.4 mm) | 23.5" (596.9 mm) | 12" (304.8 mm) | 340 lbs (154 kg) |
| SL2 | 120/208 | 35 | 1-400AF | (2) 42-Circuit | 93" (2362 mm) | 24" (610 mm) | 12", 15" with Junction Box (305 mm, 406.4 mm with Junction Box) | 550 lbs (250 kg) |
| RPP-FSL | 120/208 | 35 | 1-400AF | (2) 42-Circuit | 96" (2438 mm) | 24" (610 mm) | 24" (610 mm) | 500 lbs (227 kg) |
| RPP-FSR | 120/208 | 35 | 1-400AF | (2) 42-Circuit | 96" (2438 mm) | 24" (610 mm) | 24" (610 mm) | 500 lbs (227 kg) |
| ePanel-2 | 120/208 | 35 | 2-400AF | (2) 42-Circuit | 47" (1193 mm) | 80" (2032 mm) | 10.5" (266.7 mm) | 550 lbs (250 kg) |

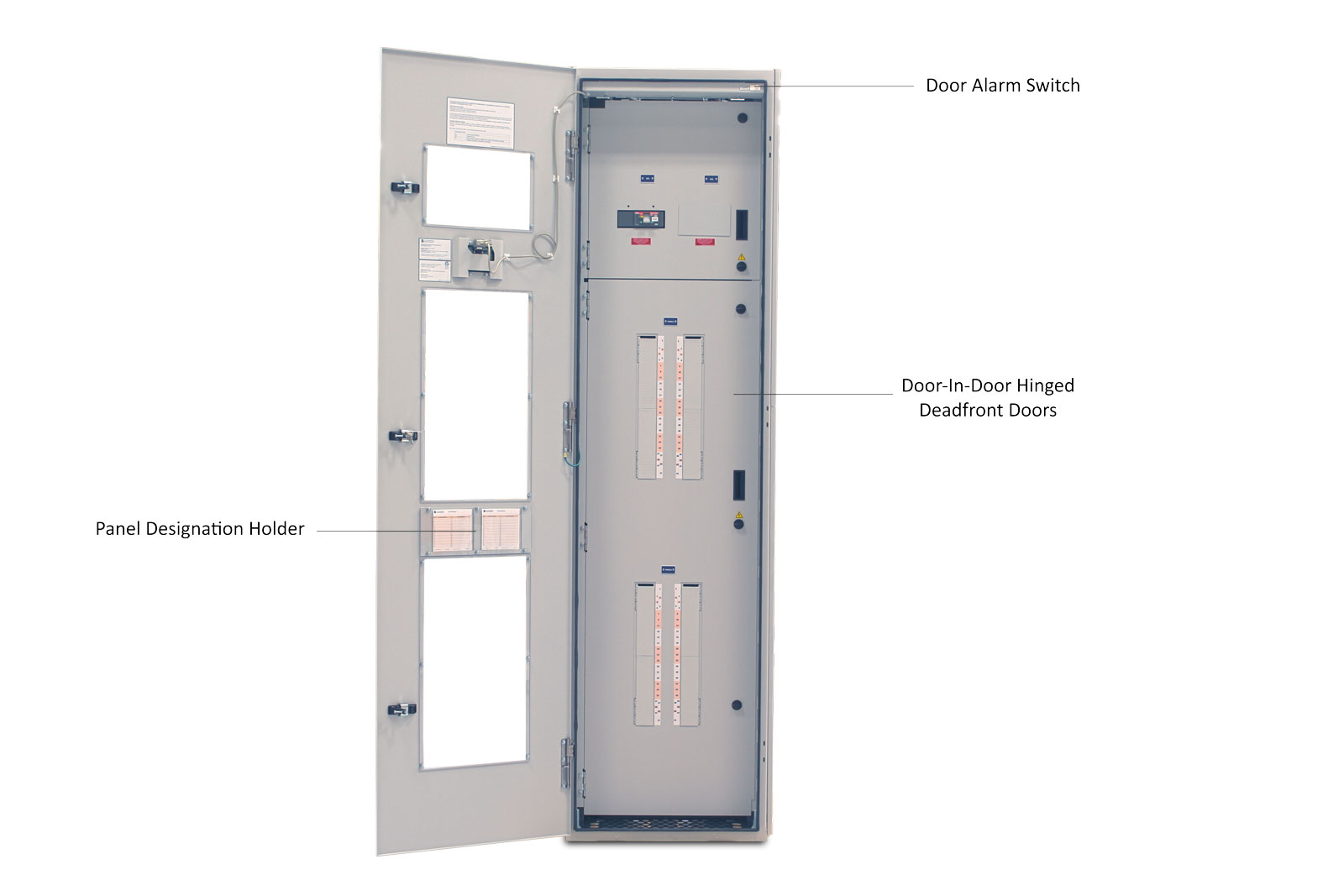

eRPPs Increases Operator Safety in Critical Facilities
In data centers, eRPPs (Remote Power Panels) play a crucial role in delivering selective trip coordination and circuit protection for mission-critical loads. By incorporating eRPPs into power panels, it ensures enhanced safety and protection. eRPPs are specifically designed to prioritize operator safety, featuring standard InSight IR™ Portholes and optional SafePanel™ Distribution. With LayerZero eRPPs, you can confidently expand your power capacity by safely adding additional circuit breakers to meet growing demands.

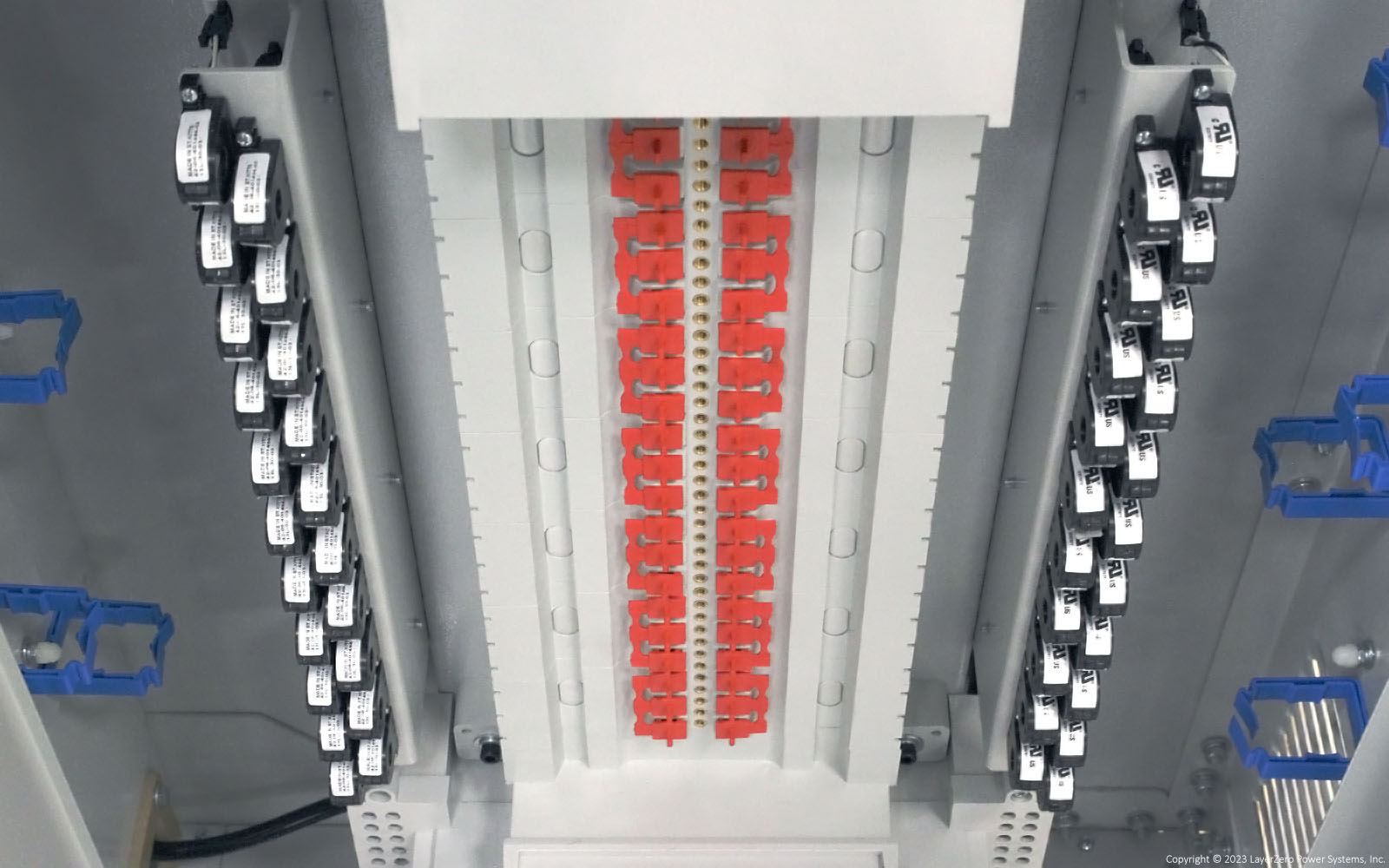

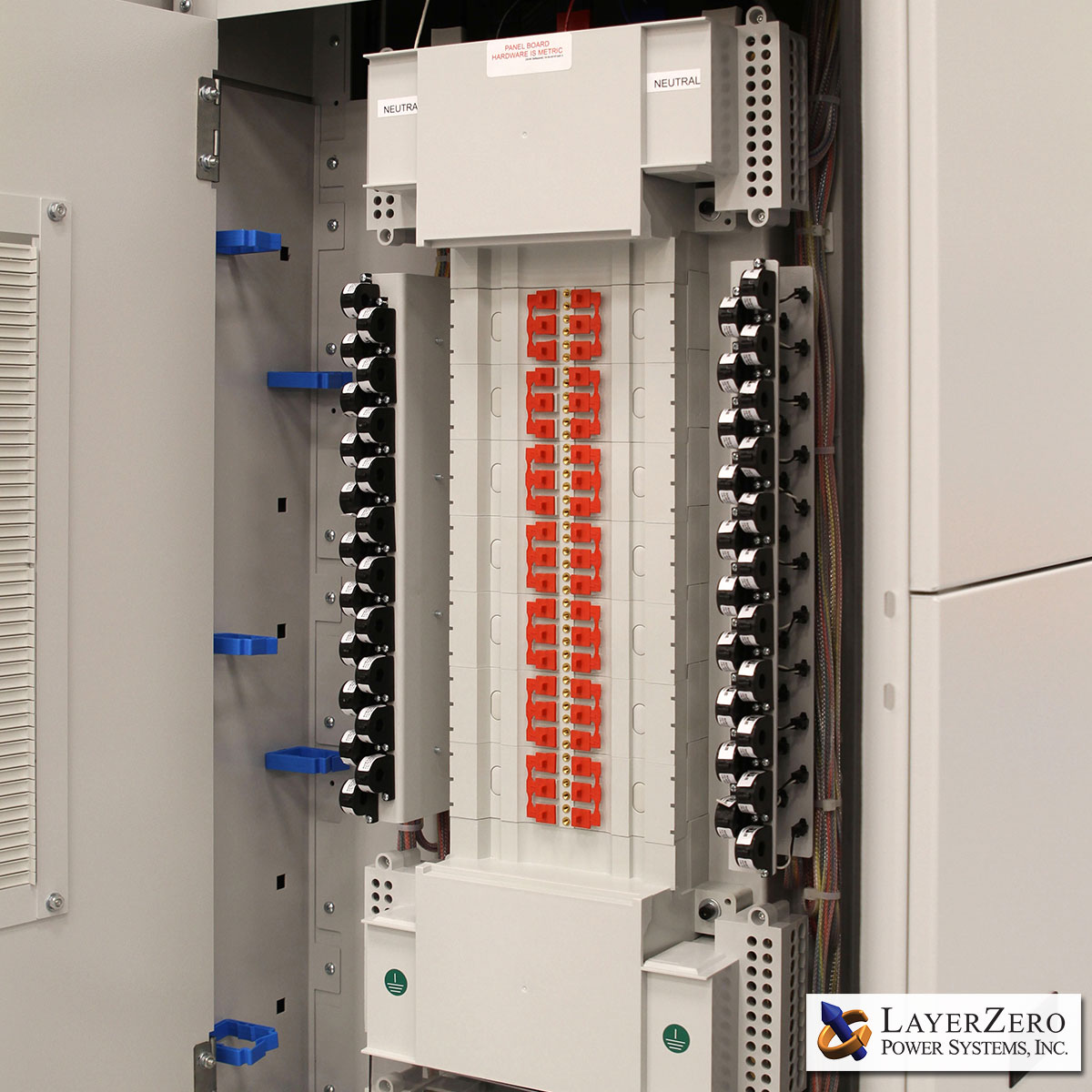

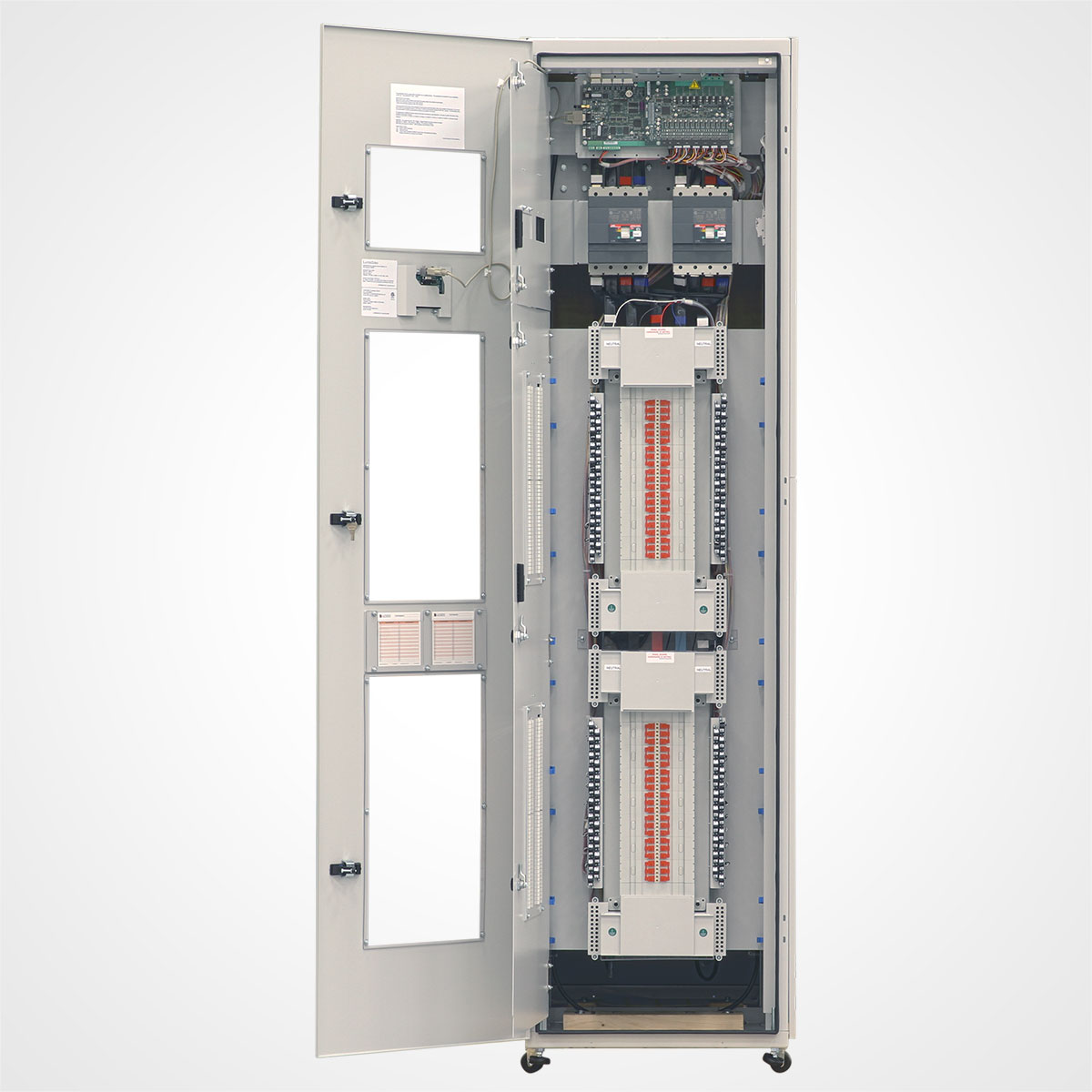

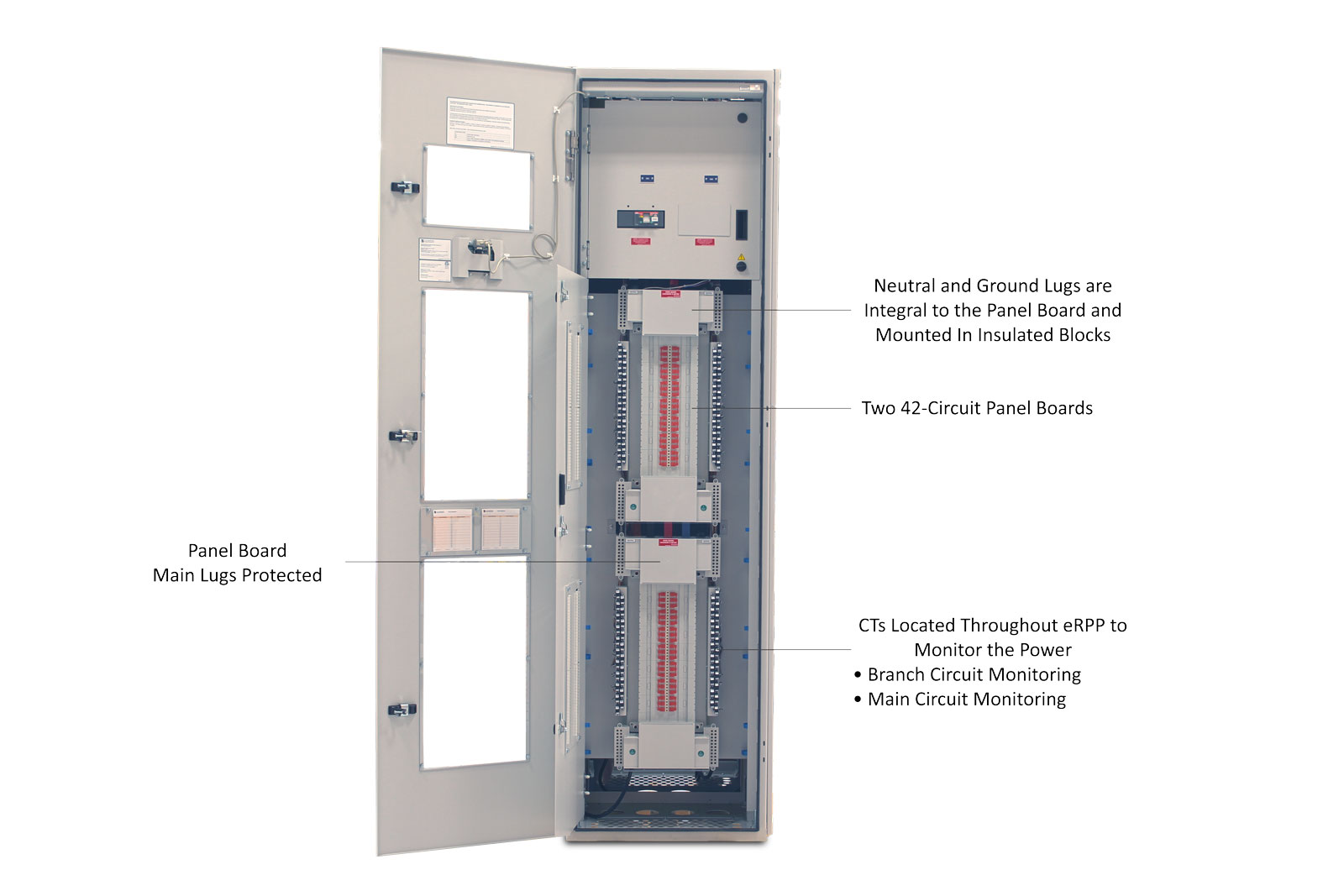

LayerZero eRPPs utilize the innovative SafePanel™ technology, which consists of a finger-safe panel board designed to enclose circuit breaker connections within a recessed well, ensuring maximum safety during maintenance and operation. The SafePanel™ also incorporates an "Arc-Free Zone" feature that effectively prevents cross-connection between phases when additional circuit breakers are installed.
ePODs are Designed to Maximize Power Reliability
LayerZero eRPPs (Remote Power Panels) are purpose-built to meet the specific requirements of mission-critical environments, delivering reliable and robust power to critical loads. These advanced panels incorporate features that facilitate issue detection and resolution, ensuring optimal uptime and operational efficiency. Selective trip coordination is a fundamental capability of LayerZero eRPPs, enabling precise and coordinated circuit protection.
With a steadfast commitment to power reliability and operator safety, LayerZero's Series 70 eRPPs PDUs are meticulously designed for data centers and other mission-critical applications, providing comprehensive and dependable power distribution solutions. LayerZero products are designed to prioritize the seamless operation of your critical infrastructure.
By leveraging LayerZero eRPPs PDUs, you can confidently rely on a stable and consistent power distribution system. This empowers you to concentrate on your core business activities, free from concerns about power interruptions or compromised performance.
Highly Connected Systems Designed for Direct Access to Information

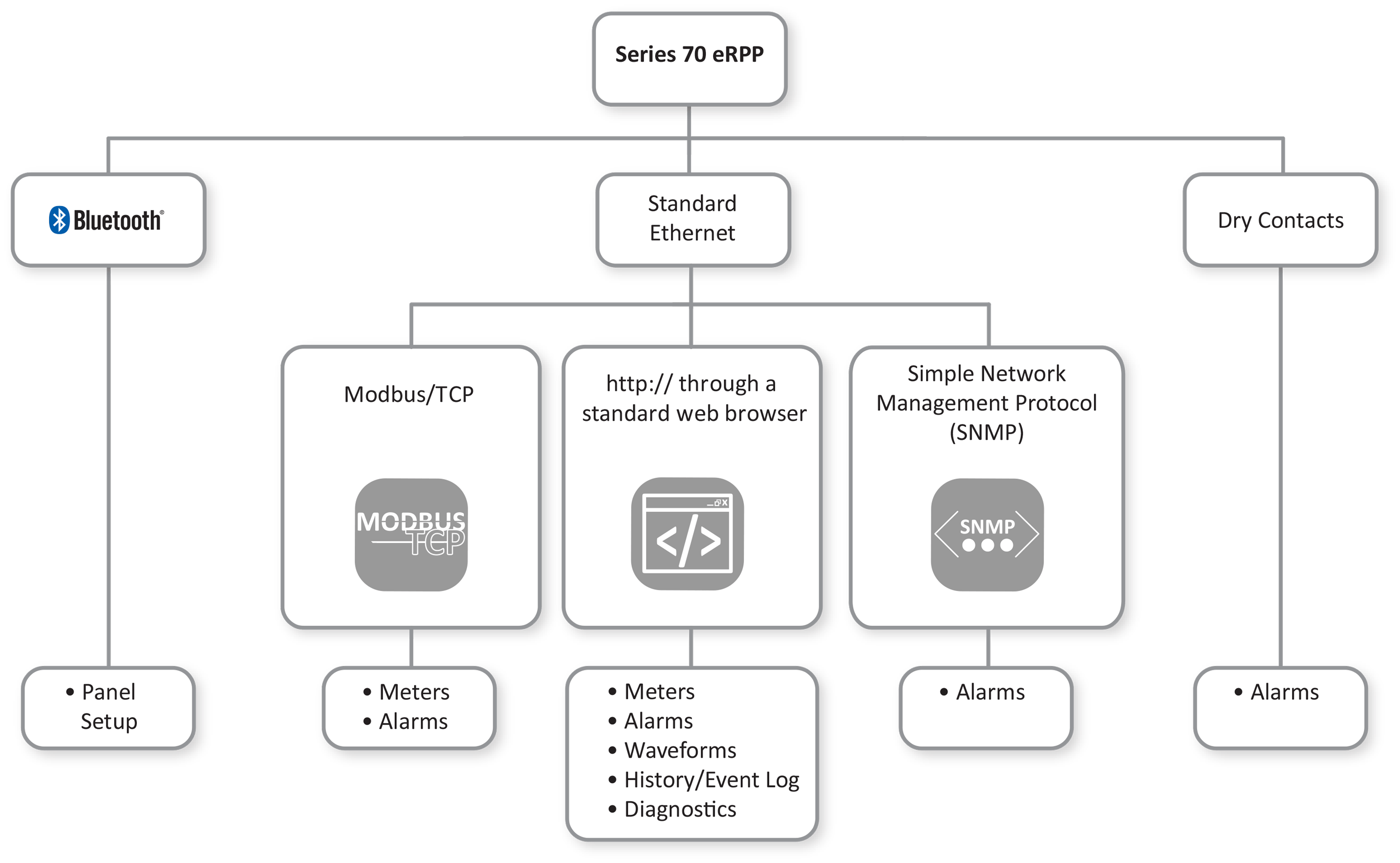

LayerZero eRPP Remote Power Panels are equipped with web servers connecting directly into networks via open protocols like Ethernet Cable, TCP/IP, SNMP, and Modbus. With TCP/IP connectivity, ePODs can be accessed remotely via a secure connection, providing information such as panel names, metering data, and waveform capture.

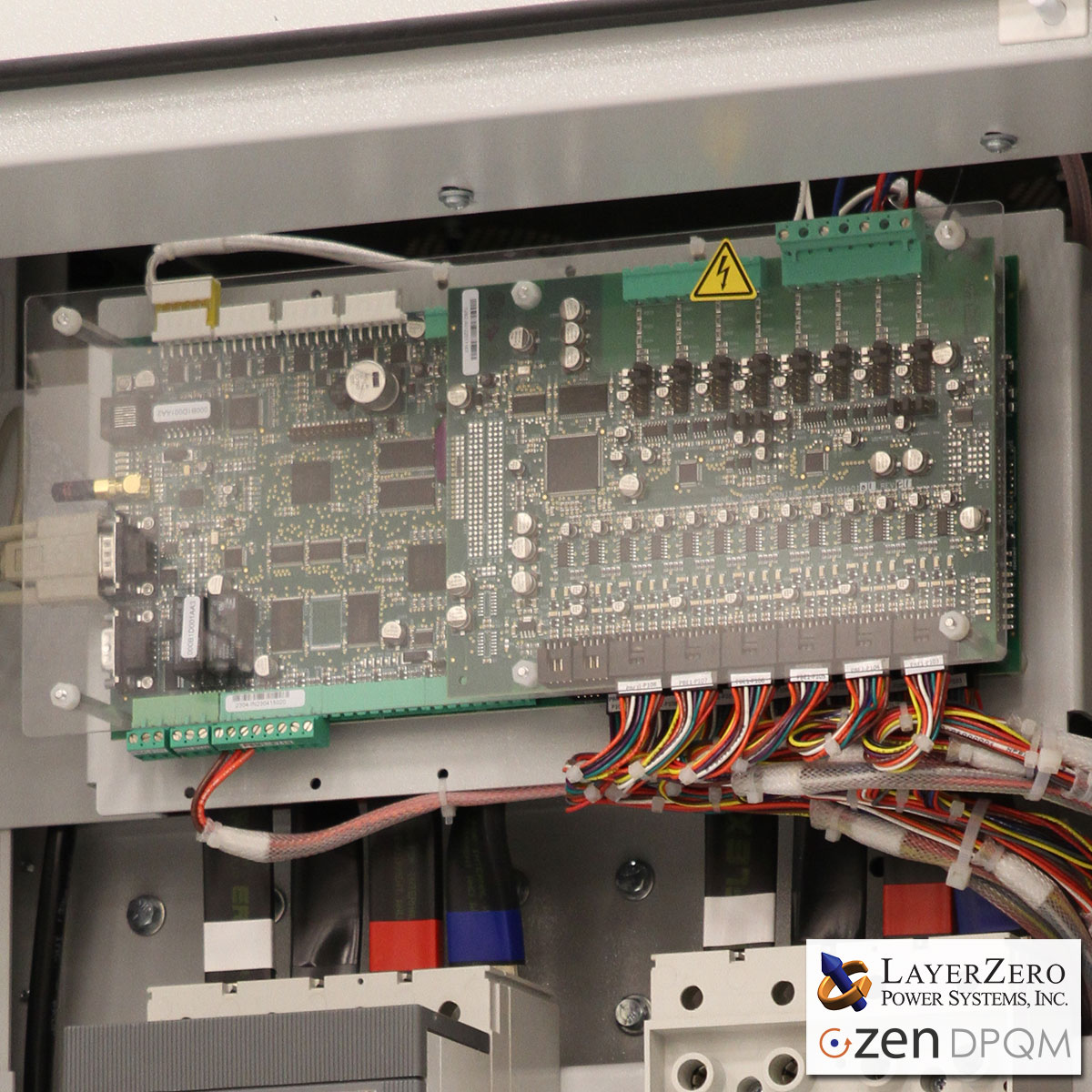

Advanced Power Quality Monitoring Capabilities
eRPPs (Remote Power Panels) incorporate advanced features that enable web-enabled monitoring and control, offering enhanced visibility and control over power distribution systems. These panels are equipped with comprehensive monitoring tools that seamlessly integrate with System Management Software, utilizing open protocols for efficient management of electrical power distribution systems.
Furthermore, eRPPs integrated with PDUs (Power Distribution Units) and Static Transfer Switches offer additional benefits. In the event of power transfers, these panels can automatically send email notifications along with waveform capture pictures, facilitating quick analysis and proactive response measures. As with all LayerZero products, eRPPs are equipped with Power Quality Monitoring, providing real-time waveform capture and ITIC plotting.
With eRPPs, you can effectively monitor and optimize your power distribution systems, ensuring optimal performance, reliability, and the ability to promptly address any power-related issues that may arise.
Flexibility and Safety in Power Capacity Expansion
LayerZero eRPPs offer a high level of flexibility by allowing the safe addition of extra circuit breakers to accommodate increasing power requirements. They feature the LayerZero SafePanel™, a finger-safe panel board designed to encapsulate circuit breaker connections within a recessed well, ensuring utmost safety. The SafePanel™ incorporates an "Arc-Free Zone" specifically designed to prevent cross-connection of phases when installing additional circuit breakers.
With LayerZero eRPPs, you can confidently expand your power distribution system while maintaining the highest safety standards, preventing potential hazards and ensuring the smooth operation of your electrical infrastructure.
To get help selecting the best LayerZero product for your needs, please do not hesitate to contact us.
LayerZero Remote Power Panel Innovations
• First to introduce real-time Waveform Capture
• Front only connection access on Power Distribution Units
To learn more about LayerZero eRPPs, please contact us today.
