Series 70: ePanel-HD1

The Series 70: ePanel-HD is a ultra high-density wall-mounted remote power panel that is designed to increase operator safety and maximize reliability. The Series 70: ePanel-HD1 is a SIMO Configuration (Single Input, Multiple Outputs) Power Panel.

Our Series 70 ePanel-HD1 is designed for applications that require higher kW capacity from three phase branch breakers. NFPA-70E inspired operator safety is built-in. The IP-20 (finger-safe) modular latticework contains no exposed live parts.

Tap to Interact
0%

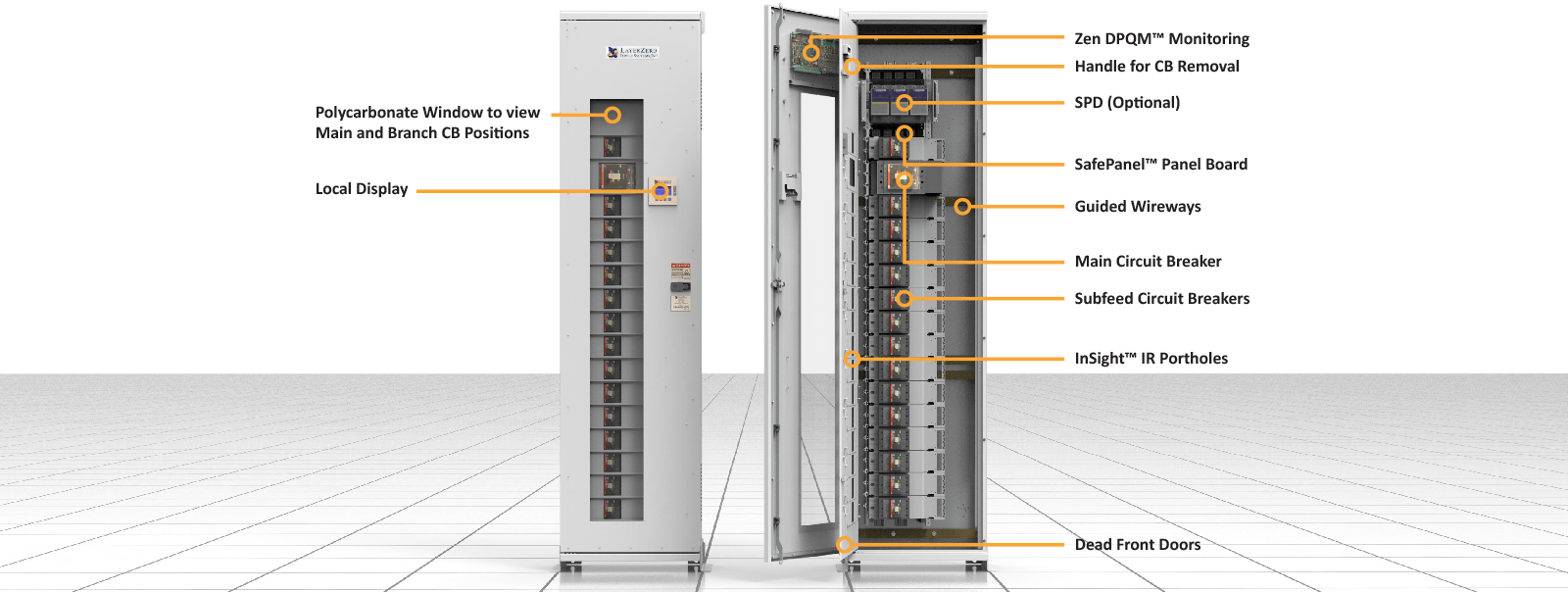

ePanel-HD1: Product Overview

The Series 70 ePanel-HD1 Power Panel contains a 1200 A SafePanel™ panel board, a main circuit breaker, with Zen DPQM Power Quality Monitoring.

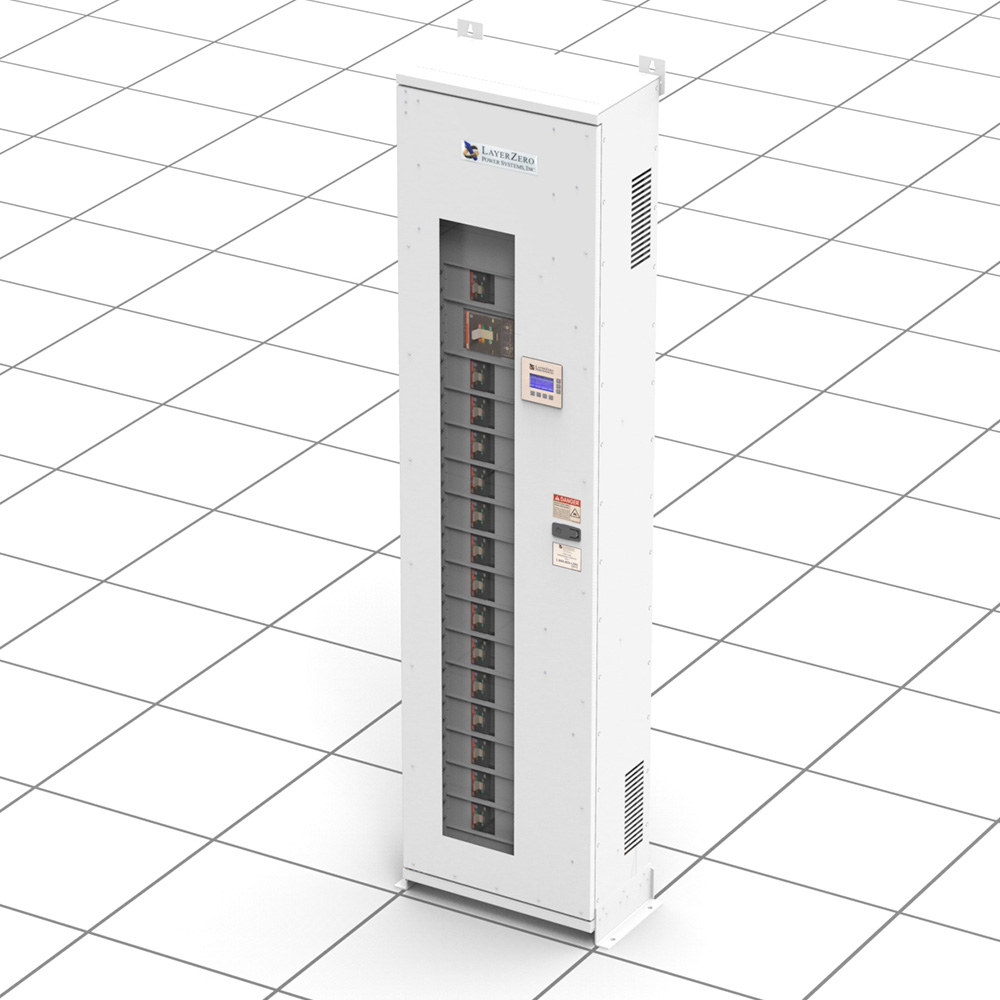

ePanel-HD1 Power Panel

Reliability, Safety, Convenience, and Monitoring Features

Connectivity Options

ePanel-HD1 Connectivity

Series 70 ePanel-HD1 Technical Specifications

Mechanical Characteristics
Dimensions 24”W x 95”H x 12”D (609.6 mm W x 2286mm H x 304.8 mm D)
Weight 450 lbs (204 kg)

ePanel-HD1 Virtual Tour Video

ePanel-HD1: Brochure Download

Download ePanel-HD1 High-Density Power Panel Brochure
Download Series 70: ePanel-HD1 Product Brochure PDF
