Series 70: ePanel-1

A newer version of this product is available. Please see the Series 70: eRPP-SL1.

The Series 70: ePanel-1 is a wall-mounted remote power panel that is designed to increase operator safety and maximize reliability. The Series 70: ePanel-1 is a SIMO Configuration (Single Input, Multiple Outputs) Power Panel.

Tap to Interact

ePanel-1: Product Overview

The Series 70 ePanel-1 Power Panel contains a 42-circuit panel board, optional main circuit breaker, with Power Quality Monitoring. ePODs: Type-X PDU

ePanel-1 360 Product View

Select to Download VR Assets

ePanel-1: Mechanical Overview

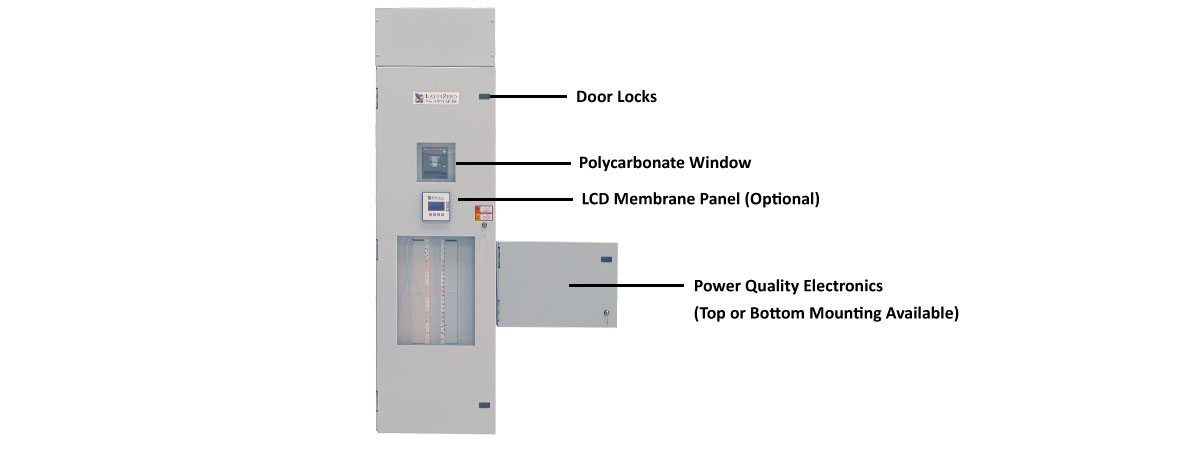

ePanel-1 Power Panel Door Closed

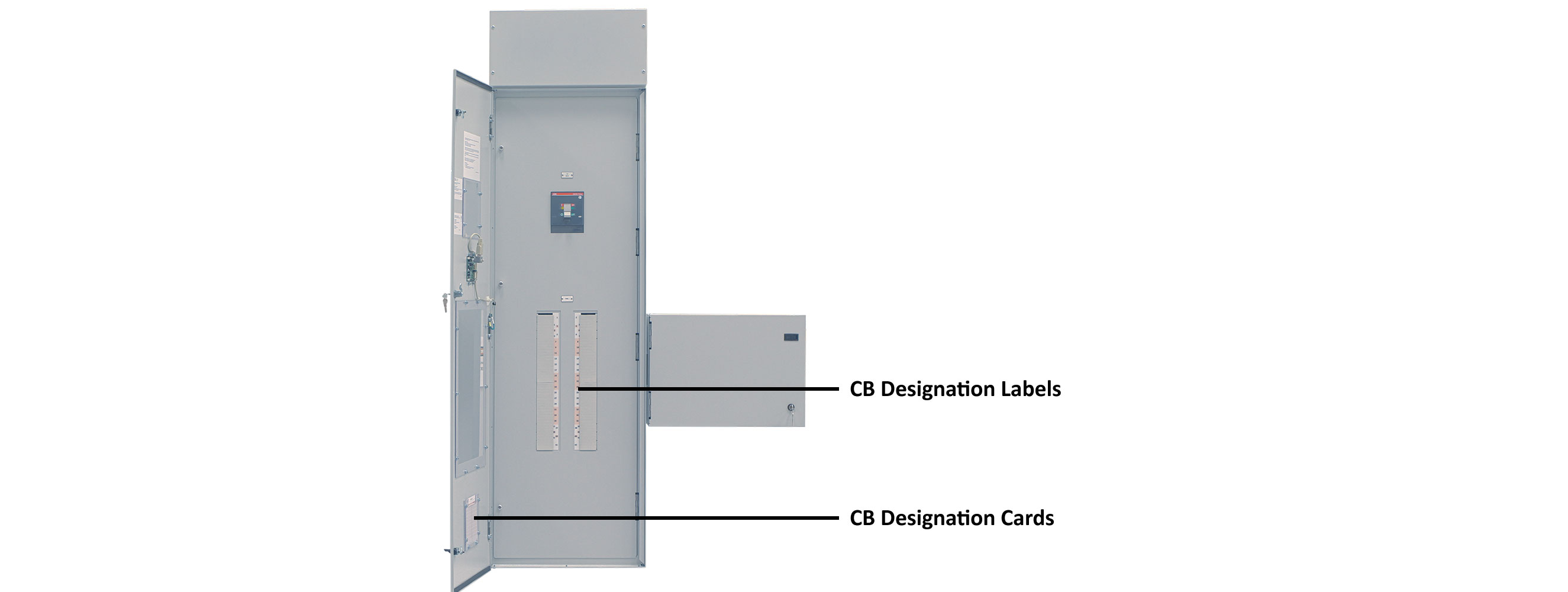

ePanel-1 Outer Door Open

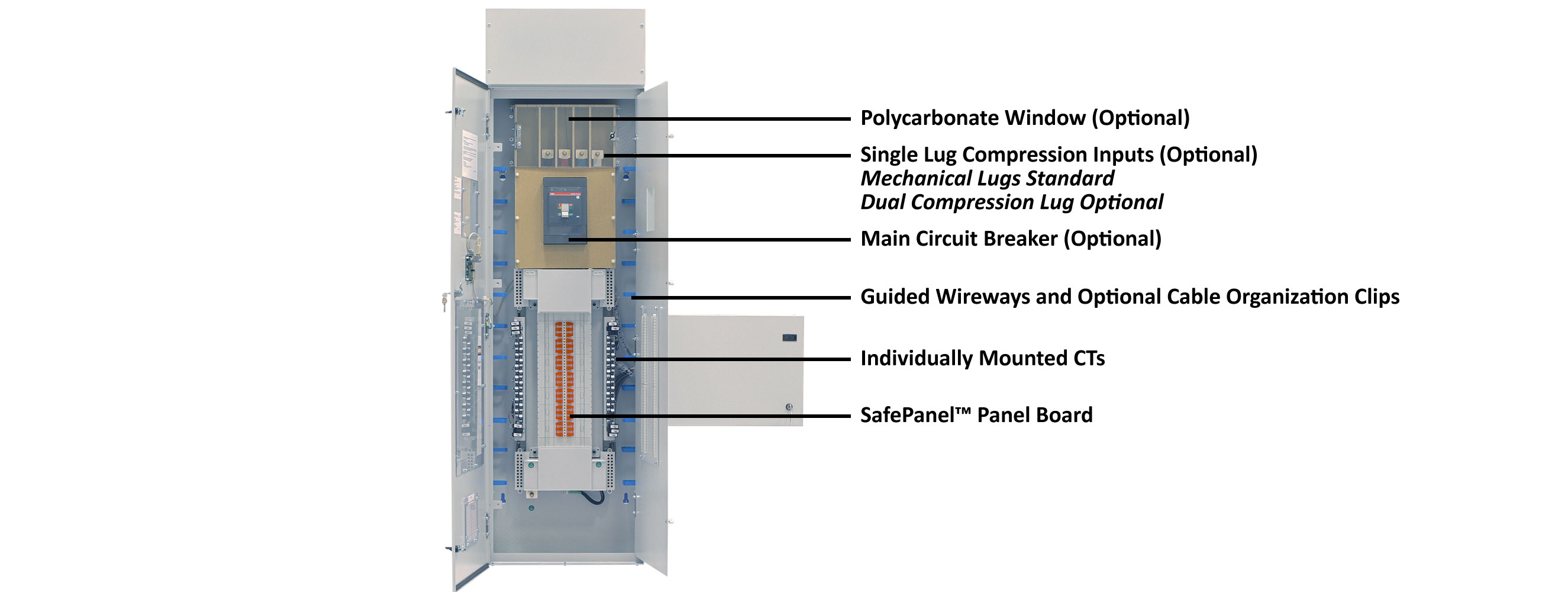

ePanel-1 Interior

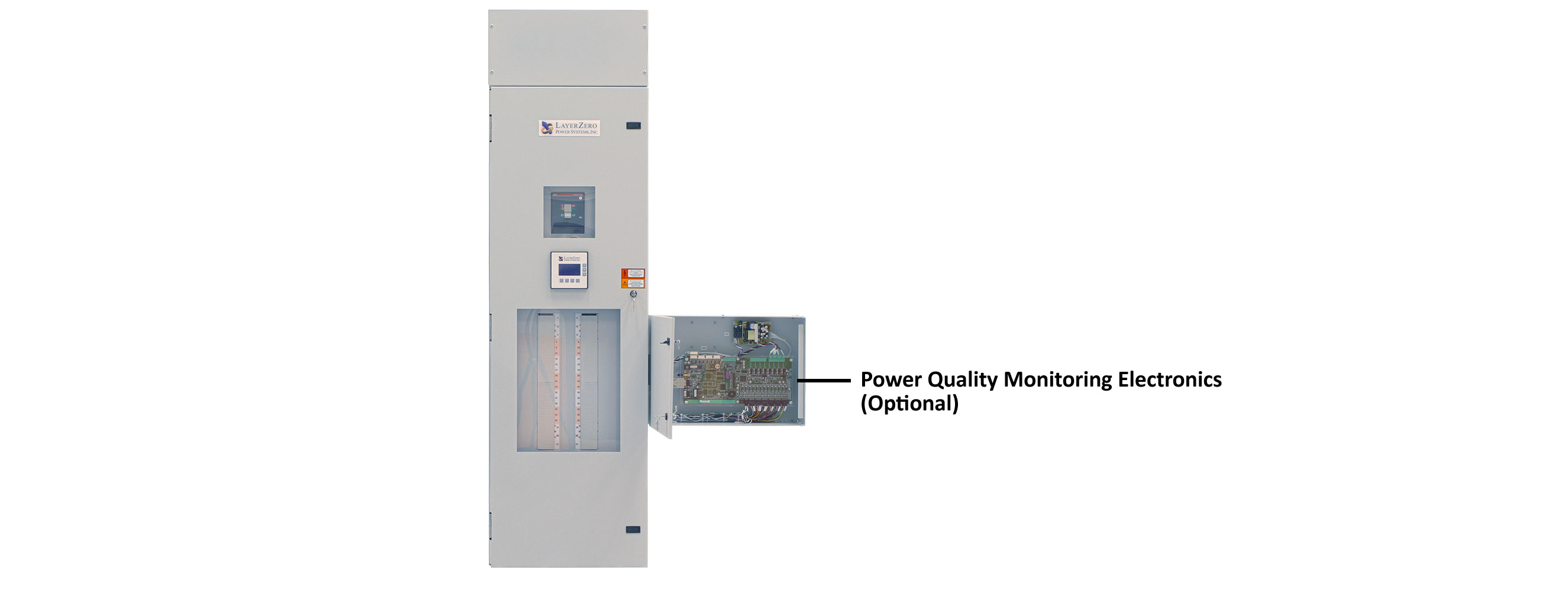

ePanel-1 Interior

Reliability, Safety, Convenience, and Monitoring Features

Connectivity Options

eSTS Connectivity

Series 70 ePanel-1 Technical Specifications

ePanel-1 Models with System Withstand Ratings
  Presence of Main Circuit Breaker No Main Circuit Breaker
120/208 V, 3-Phase, 4-Wire + Ground
 25 10
220/380 V, 3-Phase, 4-Wire + Ground 14
230/400 V, 3-Phase, 4-Wire + Ground
240/415 V, 3-Phase, 4-Wire + Ground
277/480 V, 3-Phase, 4-Wire + Ground
480 V, 3-Phase, 3-Wire + Ground



Mechanical Characteristics
Dimensions Main CB Mounting Panel Board & Main CB Rating Enclosure Width Enclosure Height Enclosure Depth
Input Feeder Termination
Single, Mechanical Dual, Mechanical Two-Hole, Compression
None 225 A 20" W 60"H 60"H 70"H 8"D
400 A
Fixed 225 A
400 A
Plug-In 225 A
400 A 70"H 70"H

ePanel-1 Virtual Tour Video

Panel Board Configurations

• Exposed Live Parts
• Requires deenergizing before an employee works on or near equipment
• Safe to Install Additional Circuit Breakers When Disconnected
• Ideal for environments where live equipment can be shut down for maintenance.
• No Exposed Live Parts
• Finger Safe (IP-20 Rated) Panel Board
• Includes Panel Board Shrouds
• Designed to Maximize Operator Safety
• Designed for environments that require uninterrupted power.
  • The LayerZero Series 70: ePanel-1 Wall-Mounted Power Panel.
  • The LayerZero Series 70: ePanel-1 Wall-Mounted Power Panel with Monitoring.
  • The LayerZero Series 70: ePanel-1 Painted Black with Doors Open.
  • The LayerZero Series 70: ePanel-1 with Outer Door Open.
  • The LayerZero Series 70: ePanel-1 Compact Local LCD Display.

ePanel-1: Brochure Download

Download ePanel-1 Wall-Mounted Power Panel Brochure
Download Series 70: ePanel-1 Product Brochure PDF
