Series 70 ePODs: Type-S
The Series 70: ePODs Type-S is a web-enabled Power Distribution Unit (PDU) with a Static Transfer Switch On The Secondary Side Of Two Transformers With Distribution. The Series 70: ePODs Type-S is a MIMO Configuration (Multiple Inputs, Multiple Outputs), accepting two or three inputs and up to twelve subfeed circuit breakers.
ePODs: Type-S Product Overview
The Series 70 ePODs: Type-S Power Distribution Unit contains a Static Transfer Switch with Two Secondary-Side Transformers and Subfeed Distribution.

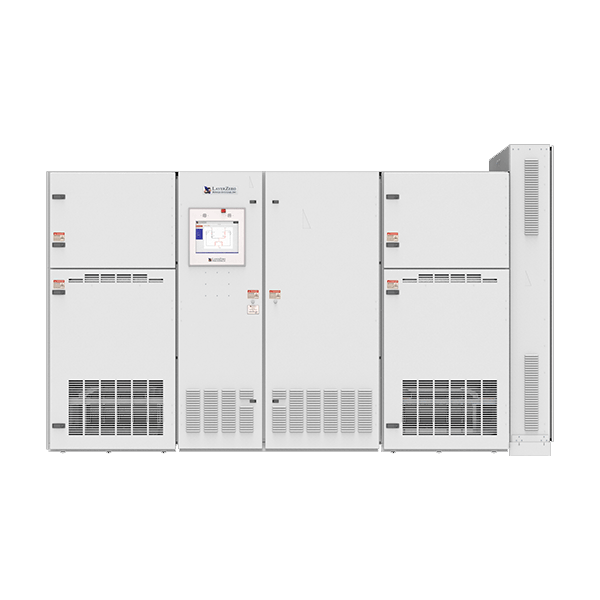

ePODs: Type-S 360 Product View
Reliability, Safety, Convenience, and Monitoring Features
Reliability
Safe Bypass Procedure
Voice Guided Bypass
Optional Triple Modular Redundancy
Epoxy Coated Buswork
Silver Plated Terminals
Maintenance-Free Joints
Machined Hardware
Screw Thread Inserts
Convection Cooling
Optical Fiber Based Controls
Serialized Critical Board Tracking
Safety
SafePanel™ Distribution
InSight™ IR Portholes
Sectionalized Components
Polycarbonate Windows
Front-Only Access
Dead-Front Hinged Doors
Connectivity
Ethernet Connectivity
Modbus/TCP
NTP Time Clock
SNMP Connectivity
Power Quality Monitoring
Waveform Capture
"Black Box" Forensic Diagnostics
Touch Screen Interface
Waveforms Automatically Emailed
Connectivity Options
Series 70 ePODs: Type-S Technical Specifications
| ePODs: Type-S Models with Withstand Ratings | |||
| 480 V | 575 V | 600 V | |
| 225 A | 65kAIC; 50kAIC; 25kAIC | ||
| 250 A | 150kAIC; 100kAIC; 65kAIC; 35kAIC; 25kAIC | 100kAIC; 65kAIC; 35kAIC; 25kAIC; 18kAIC | |
| 400 A | |||
| 600 A | |||
| 800 A | 100kAIC; 65kAIC; 50kAIC; 35kAIC |
42kAIC; 35kAIC; 25kAIC; 20kAIC | |
ePODs: Type-S Brochure Download
