Series 70 ePODs: Type-P

The Series 70: ePODs Type-P is a web-enabled Power Distribution Unit (PDU) with a Static Transfer Switch On The Primary Side Of The Transformer With Distribution. The Series 70: ePODs Type-P is a MIMO Configuration (Multiple Inputs, Multiple Outputs), accepting two or three inputs and up to twelve subfeed circuit breakers.

Tap to Interact

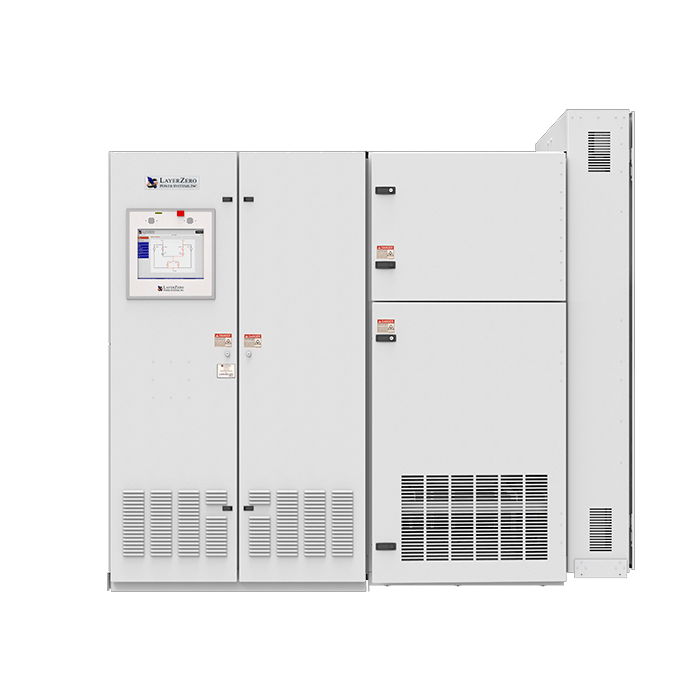

ePODs: Type-P Product Overview

The Series 70 ePODs: Type-P Power Distribution Unit contains a Static Transfer Switch,Transformer, with Subfeed Distribution.

ePODs: Type-P PDU with Mimic
Select a Section to Highlight

ePODs: Type-P 360 Product View

Select to Download VR Assets

Reliability, Safety, Convenience, and Monitoring Features

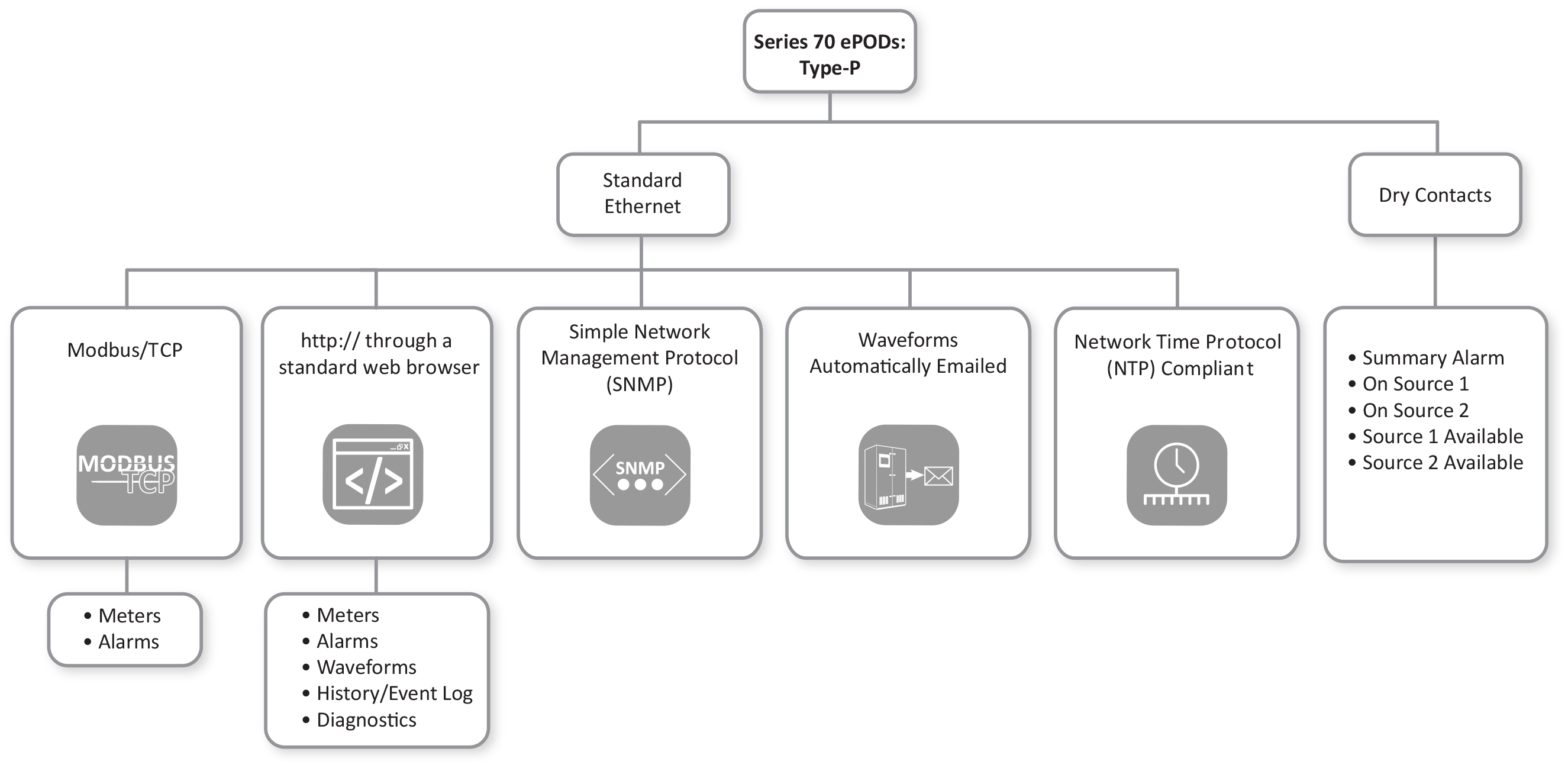

Connectivity Options

eSTS Connectivity

Series 70 ePODs: Type-P Technical Specifications

ePODs: Type-P Models with Withstand Ratings
  480 V 575 V 600 V
225 A 65kAIC; 50kAIC; 25kAIC
250 A 150kAIC; 100kAIC; 65kAIC; 35kAIC; 25kAIC 100kAIC; 65kAIC; 35kAIC; 25kAIC; 18kAIC
400 A
600 A
800 A 100kAIC; 65kAIC; 50kAIC; 35kAIC
42kAIC; 35kAIC; 25kAIC; 20kAIC


Mechanical Characteristics
  150kVA 225kVA 300kVA 400kVA 500kVA
Dimensions: 480 V eSTS 96"W x 84"H x 36"D 108"W x 84"H x 36"D 168"W x 84"H x 36"D
Dimensions: 600 V eSTS 158"W x 84"H x 36"D

ePODs: Type-P Virtual Tour

ePODs: Type-P Brochure Download
