Series 70: ePanel-2
The Series 70: ePanel-2 is a wall-mounted remote power panel that is designed to increase operator safety and maximize reliability. The Series 70: ePanel-2 is a SIMO Configuration (Single Input, Multiple Outputs) Power Panel.
ePanel-2: Product Overview
The Series 70 ePanel-2 Power Panel contains two 42-circuit panel boards (84 total circuits), two optional main circuit breakers, with Power Quality Monitoring.
ePanel-2 360 Product View
Select to Download VR Assets

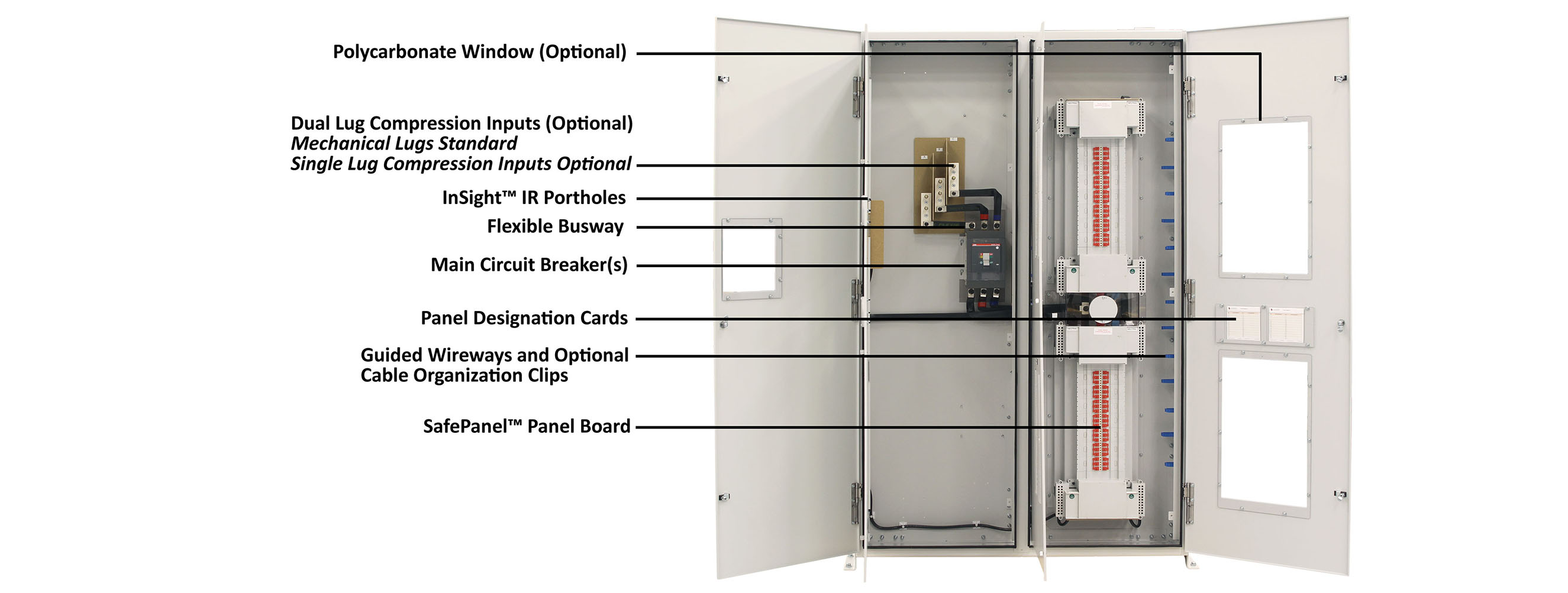

ePanel-2 Mechanical Overview
Reliability, Safety, Convenience, and Monitoring Features
Reliability
Screw Thread Inserts
Connectivity Options
Series 70 ePanel-2 Technical Specifications
| ePanel-2 Models with System Withstand Ratings |
||
| Presence of Main Circuit Breaker | No Main Circuit Breaker |
|
| 120/208 V, 3-Phase, 4-Wire + Ground |
25 | 10 |
| 220/380 V, 3-Phase, 4-Wire + Ground | 14 | |
| 230/400 V, 3-Phase, 4-Wire + Ground | ||
| 240/415 V, 3-Phase, 4-Wire + Ground | ||
| 277/480 V, 3-Phase, 4-Wire + Ground | ||
| 480 V, 3-Phase, 3-Wire + Ground | ||
| Mechanical Characteristics |
|
| Dimensions | 47"W x 80"H x 10.5"D |
ePanel-2 Virtual Tour Video
Panel Board Configurations
• Exposed Live Parts
• Requires deenergizing before an employee works on or near equipment
• Safe to Install Additional Circuit Breakers When Disconnected
• Ideal for environments where live equipment can be shut down for maintenance.
• Requires deenergizing before an employee works on or near equipment
• Safe to Install Additional Circuit Breakers When Disconnected
• Ideal for environments where live equipment can be shut down for maintenance.
• No Exposed Live Parts
• Finger Safe (IP-20 Rated) Panel Board
• Includes Panel Board Shrouds
• Designed to Maximize Operator Safety
• Designed for environments that require uninterrupted power.
• Finger Safe (IP-20 Rated) Panel Board
• Includes Panel Board Shrouds
• Designed to Maximize Operator Safety
• Designed for environments that require uninterrupted power.
ePanel-2 Gallery
ePanel-2: Brochure Download
