Series 70 ePODs: Type-X SF
The Series 70: ePODs Type-X SF is a web-enabled Power Distribution Unit (PDU) with a Transformer and SafePanel Distribution. The Series 70: ePODs Type-X SF is a SIMO Configuration (Single Input, Multiple Outputs), and is available in configurations up to 1000 kVa, with distribution in the front or on either side.

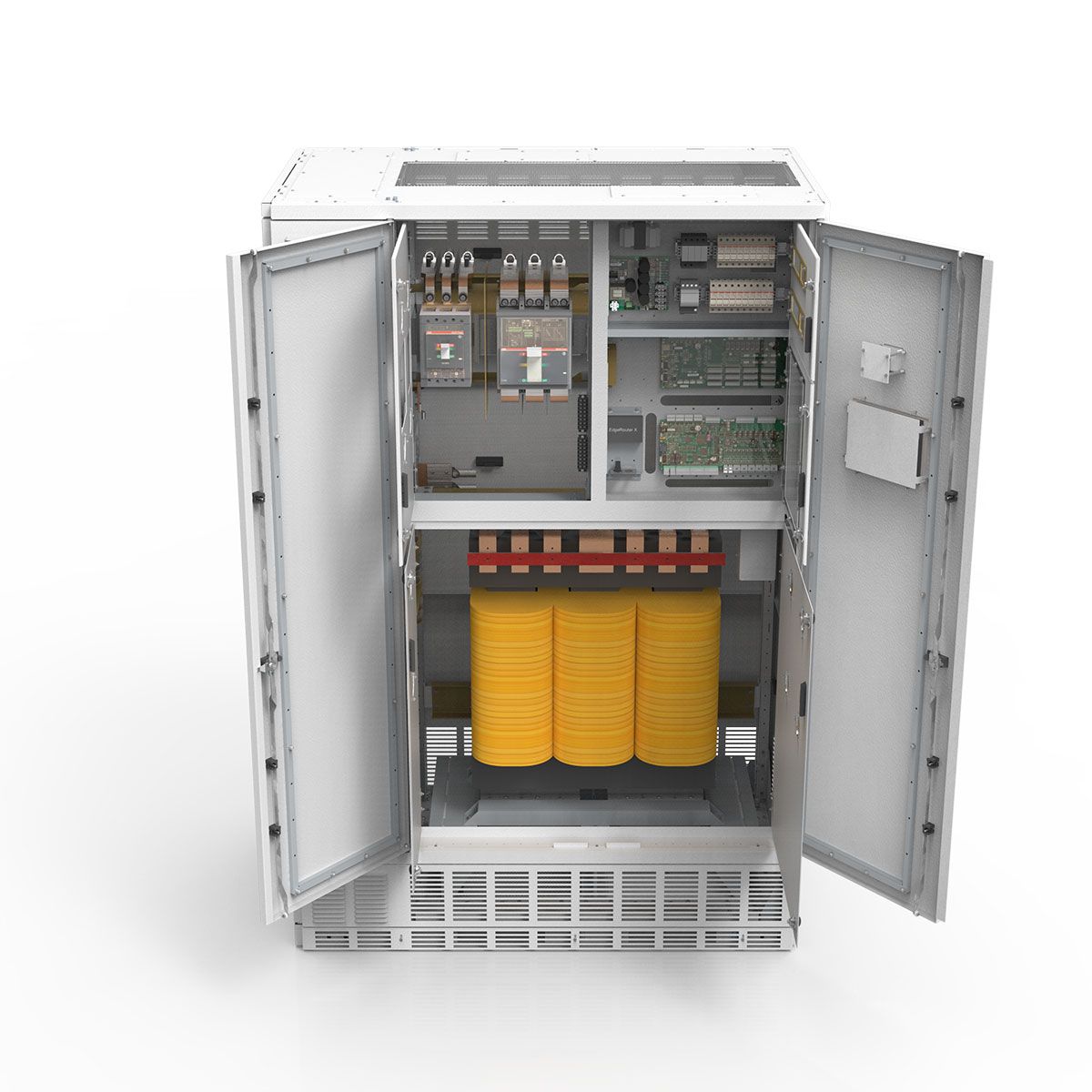

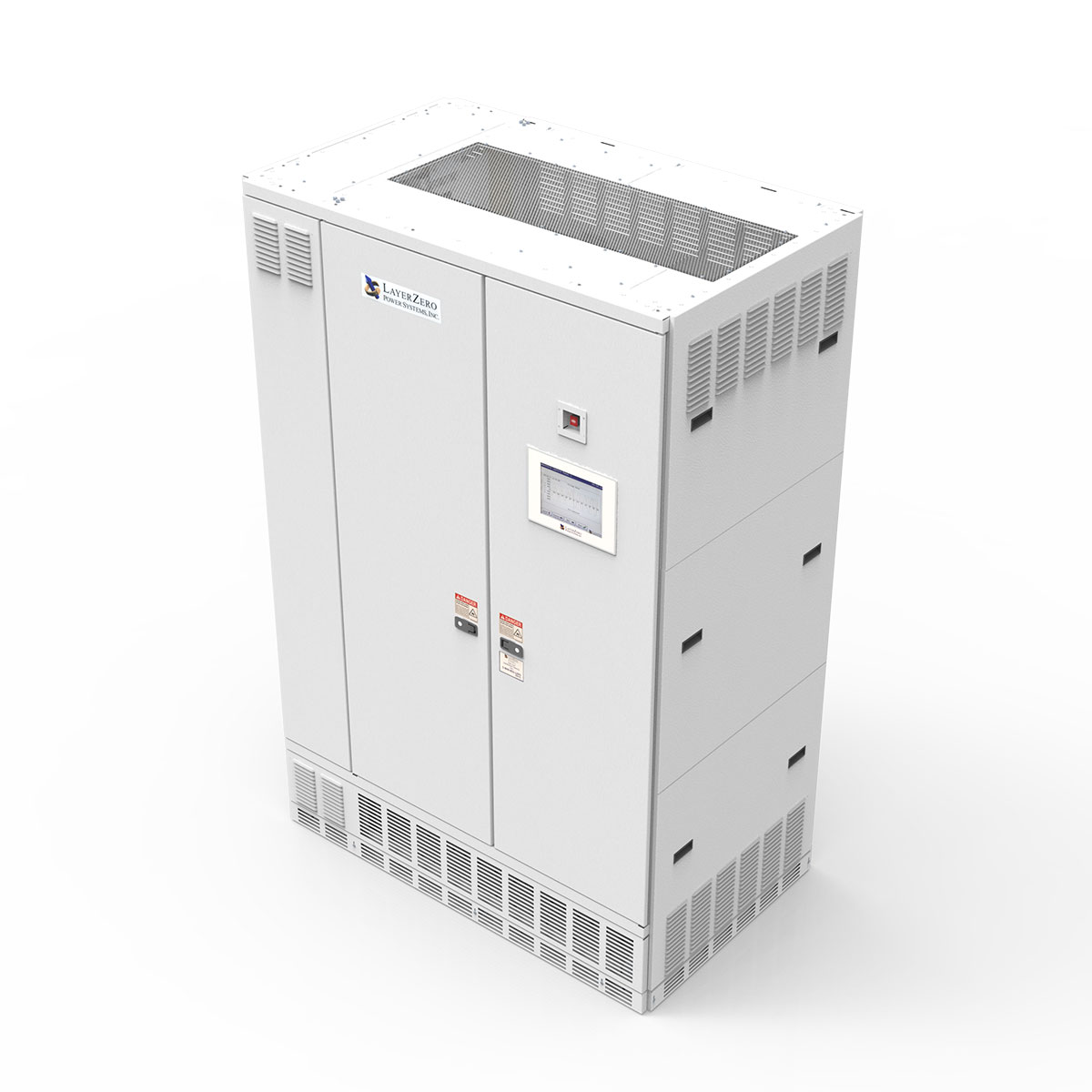

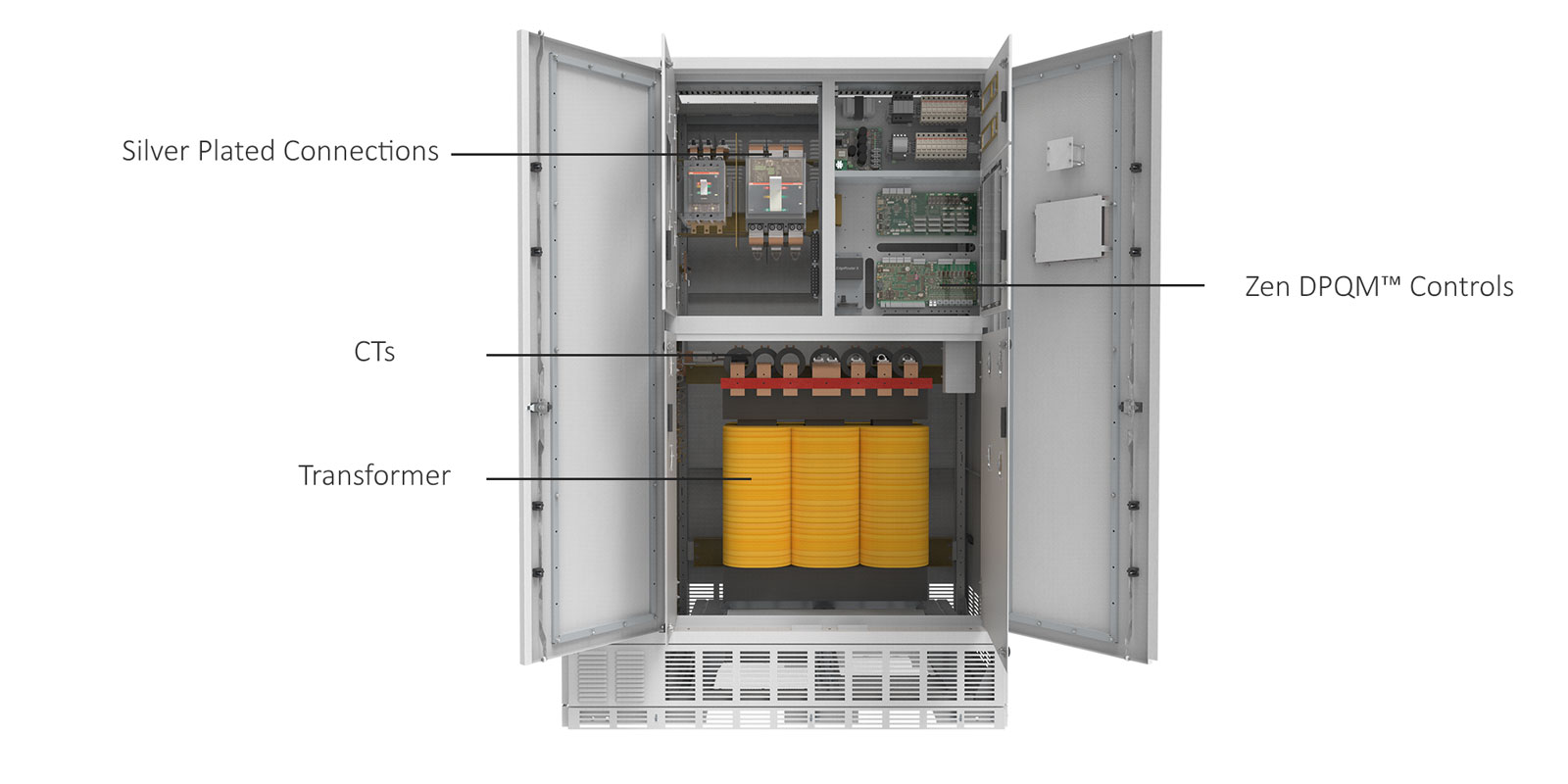

Type-X SF Mechanical Overview

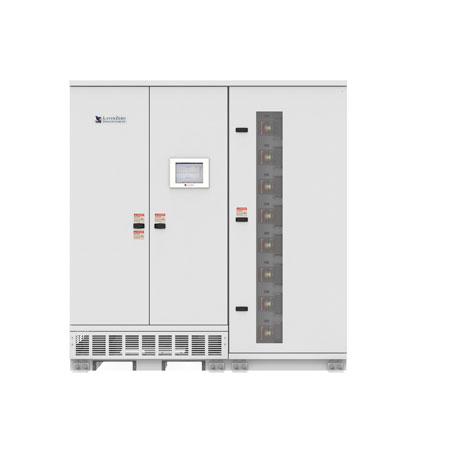

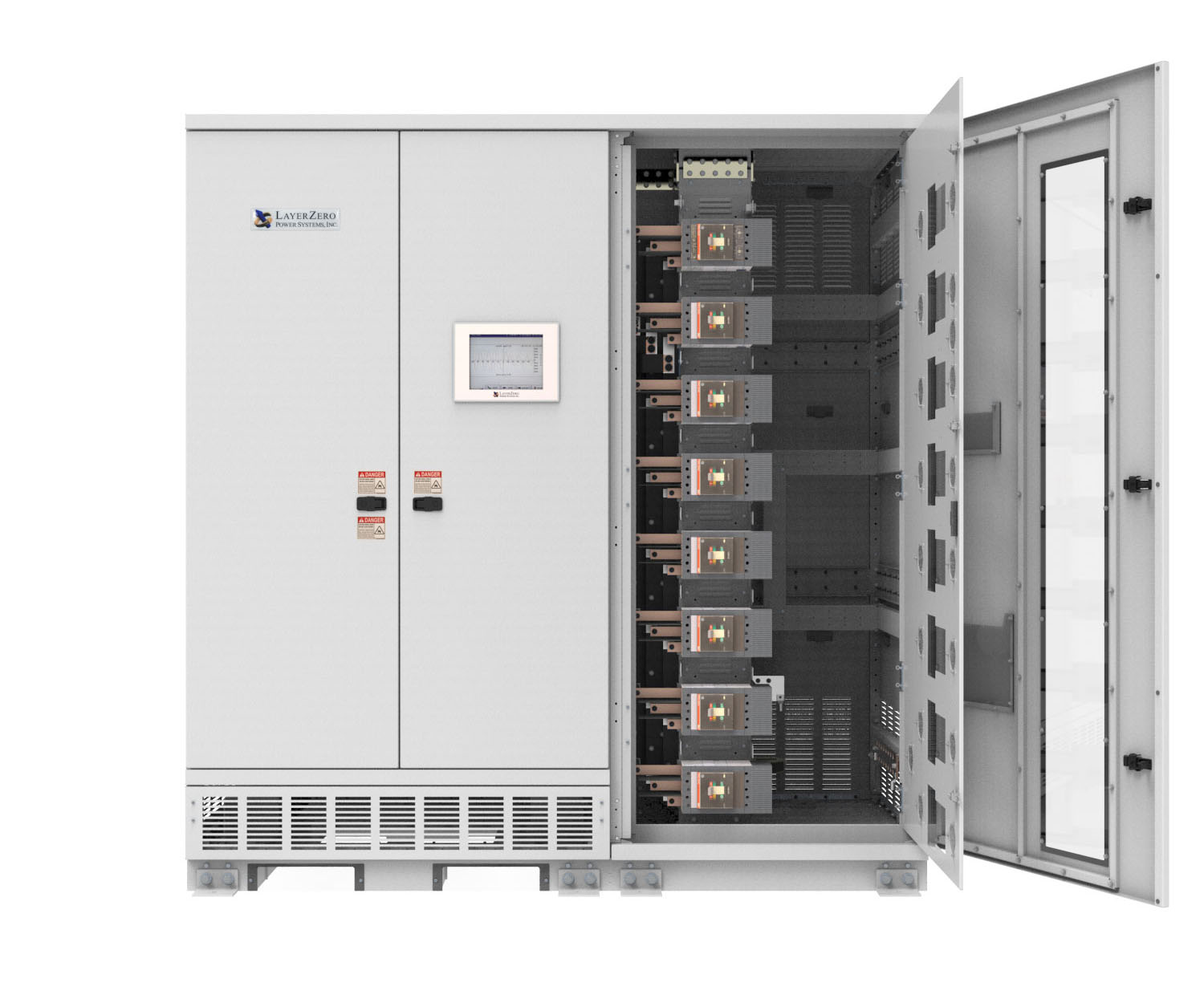

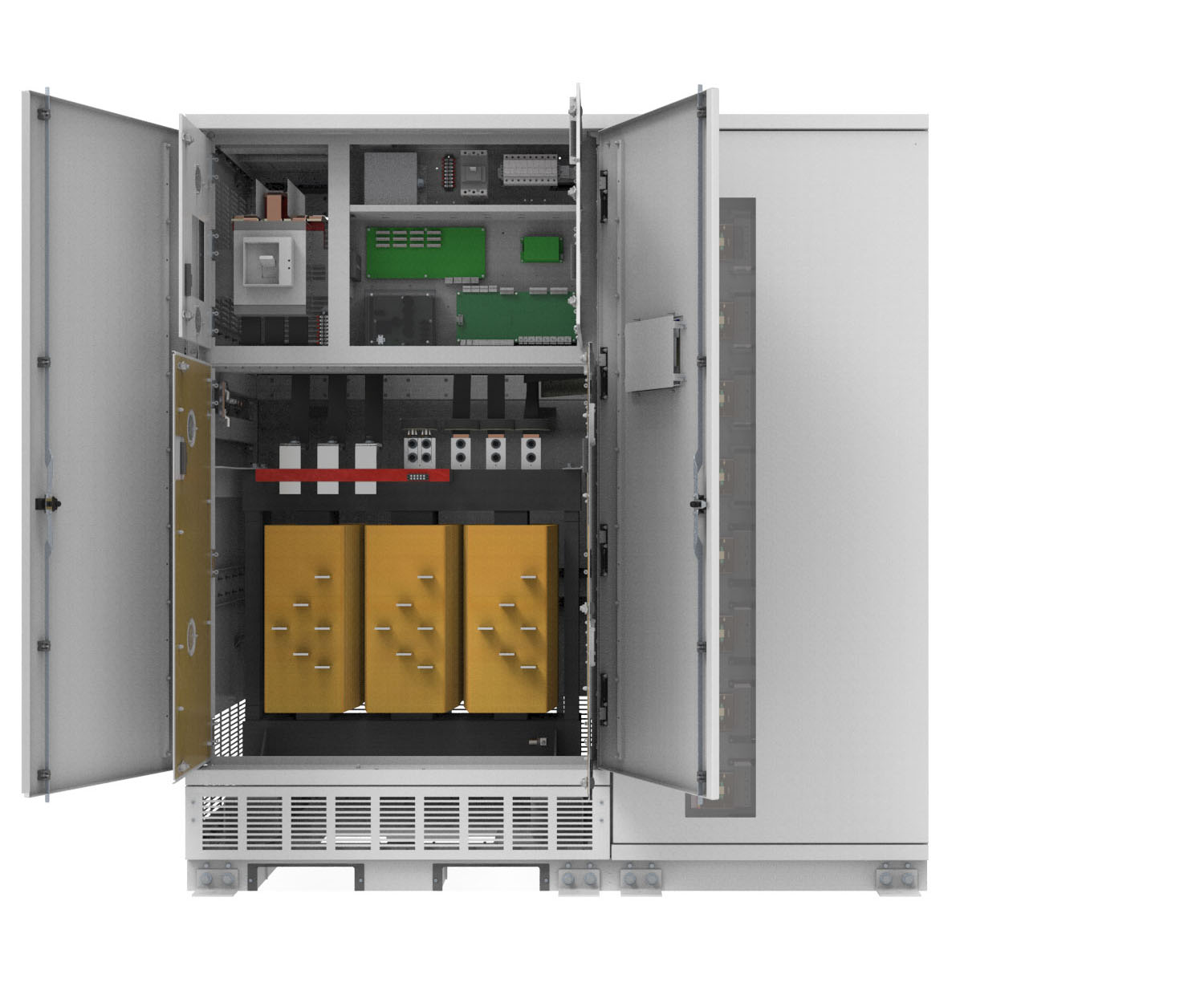

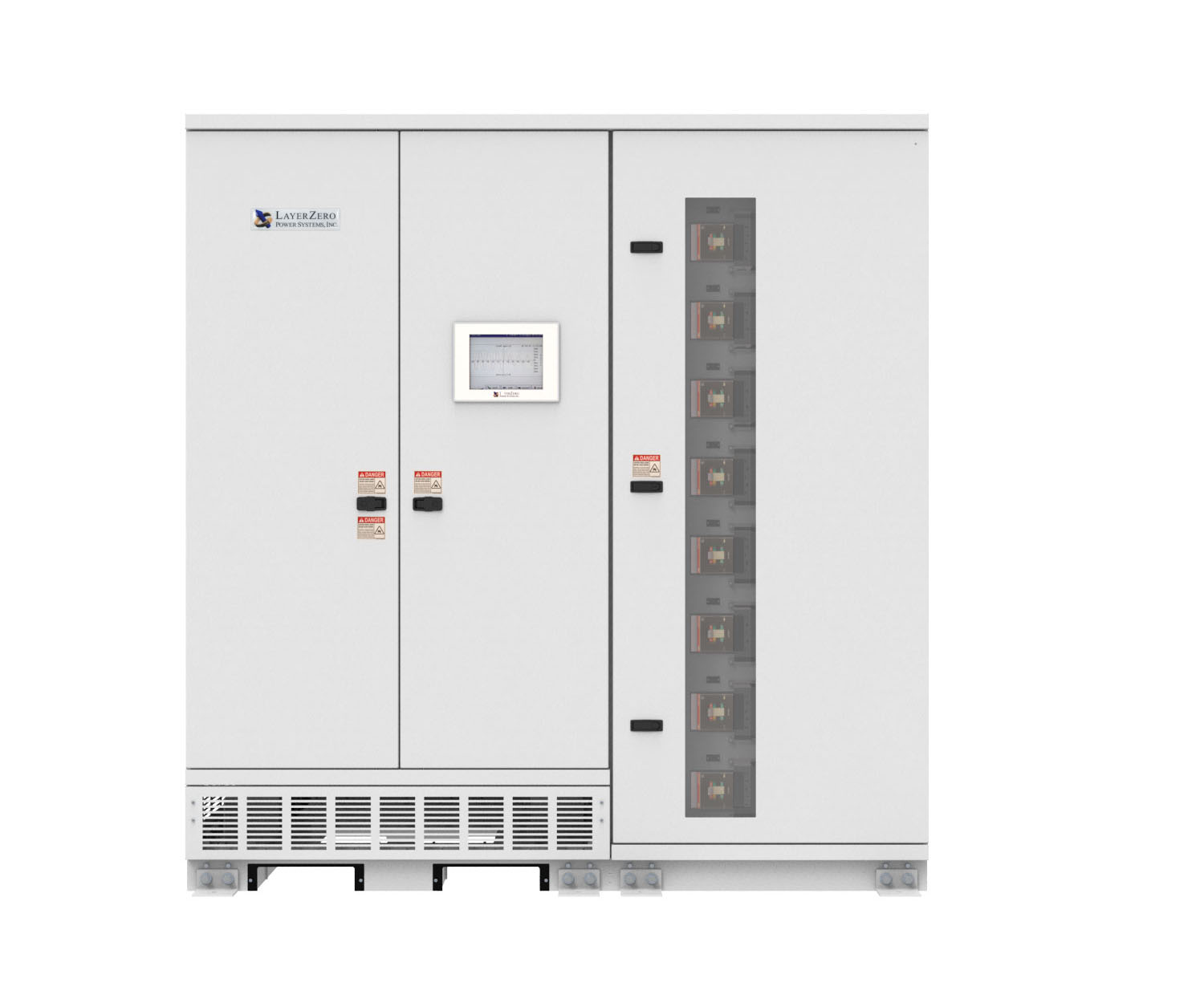

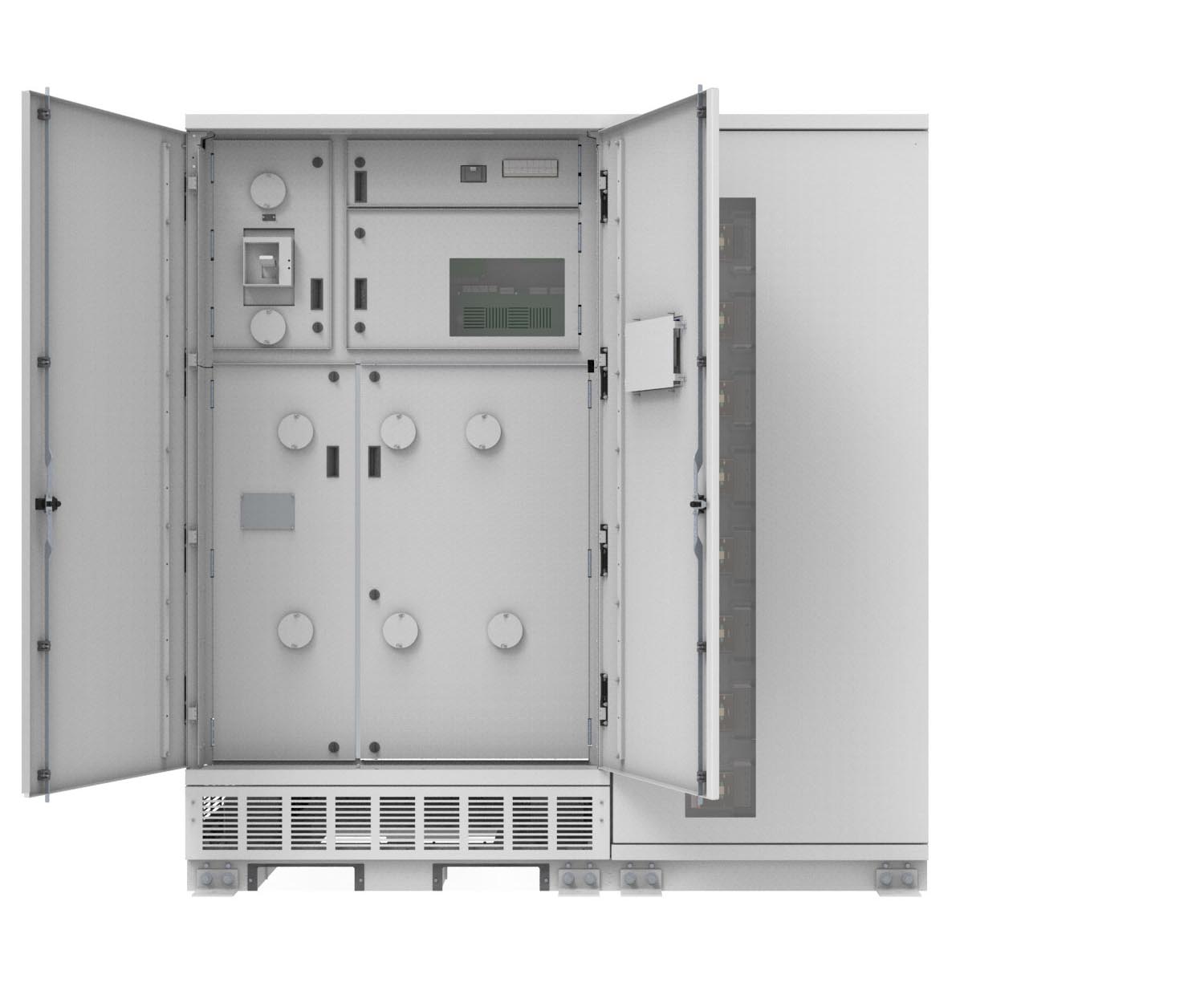

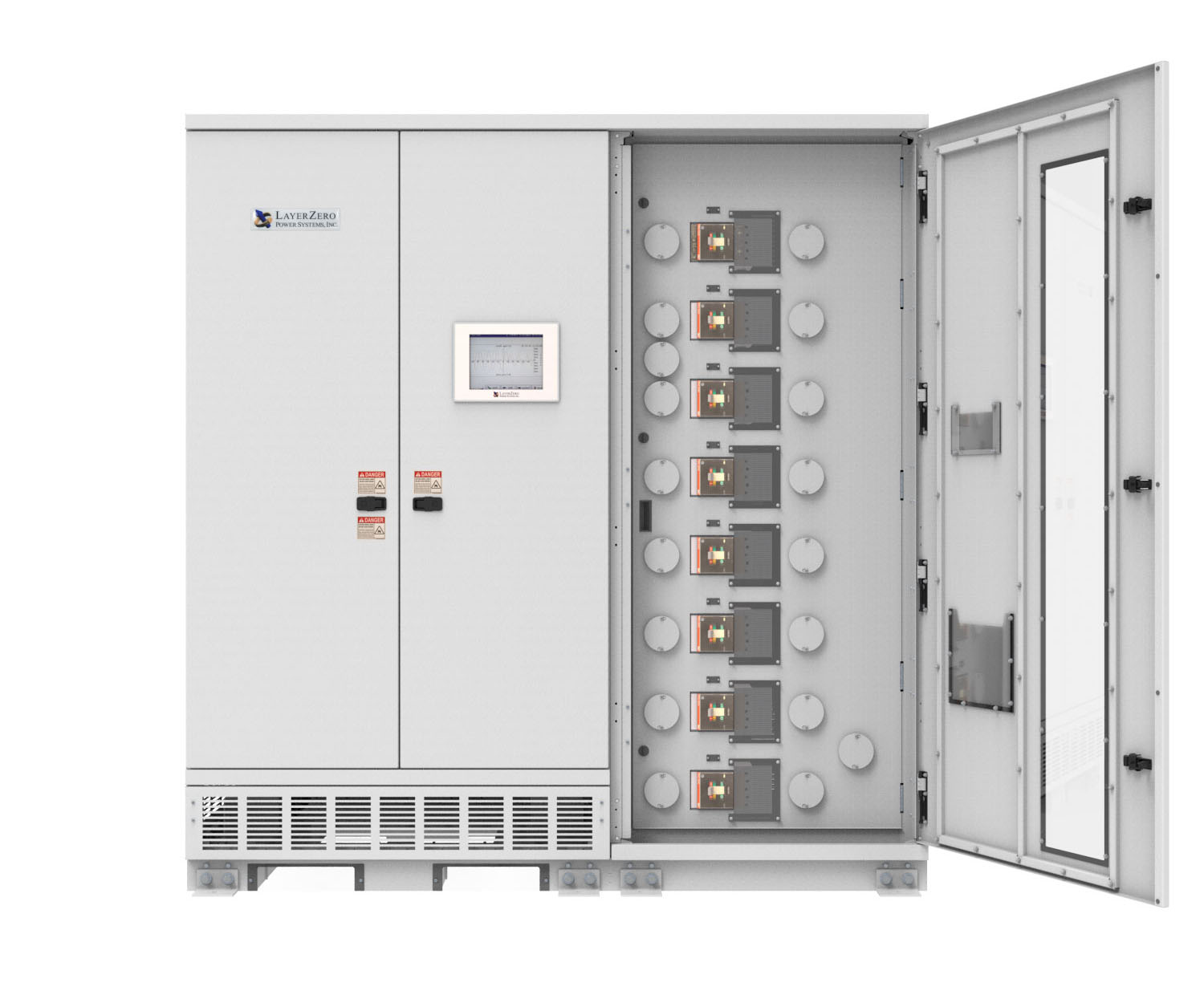

500 kVa - Front Distribution

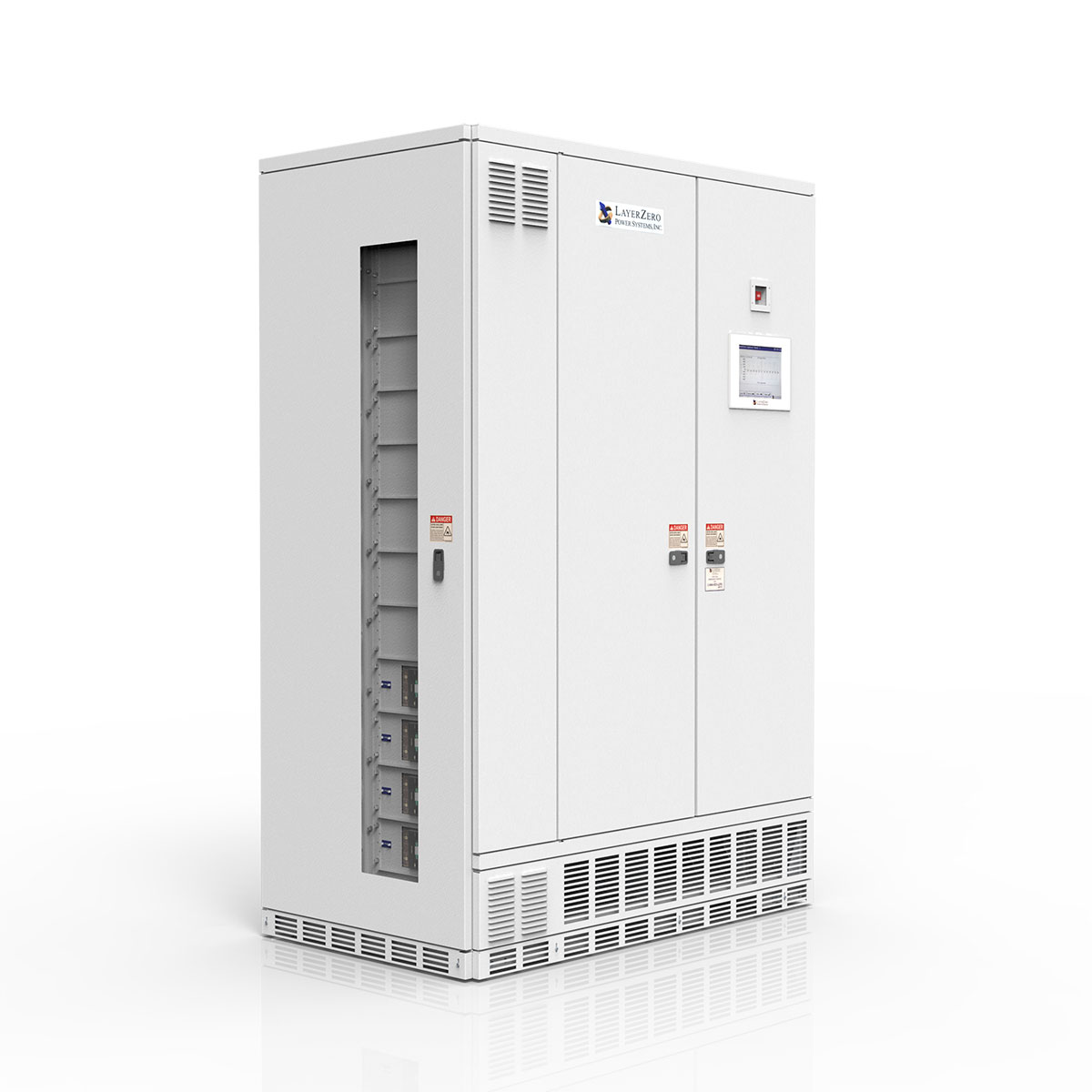

500 kVa - Left Distribution
500 kVa - Right Distribution
750 kVa - ELP Configuration
Reliability, Safety, Convenience, and Monitoring Features
Reliability
Epoxy Coated Buswork
Silver Plated Terminals
Maintenance-Free Joints
Machined Hardware
Screw Thread Inserts

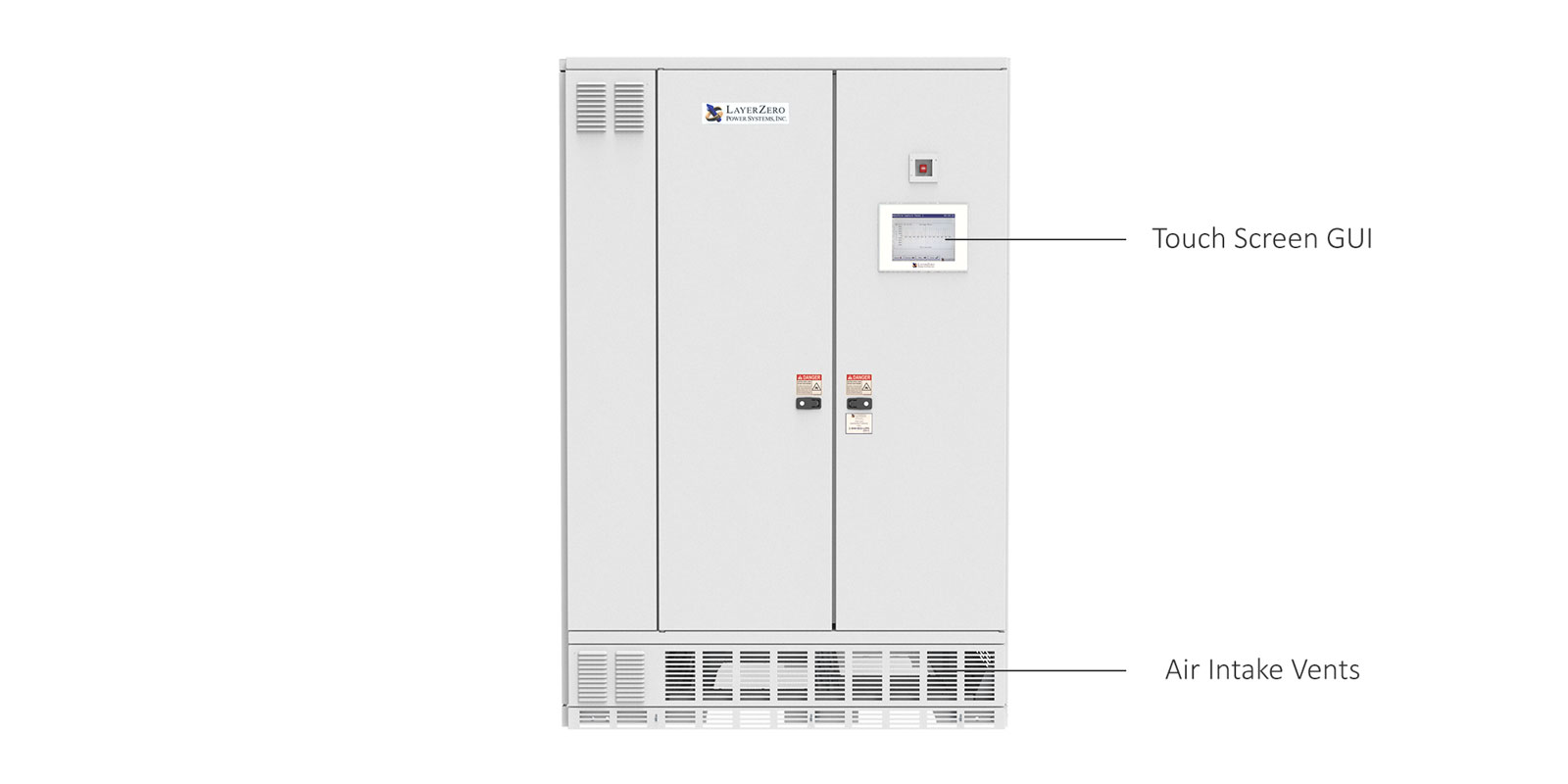

Convection Cooling
Serialized Critical Board Tracking
Safety

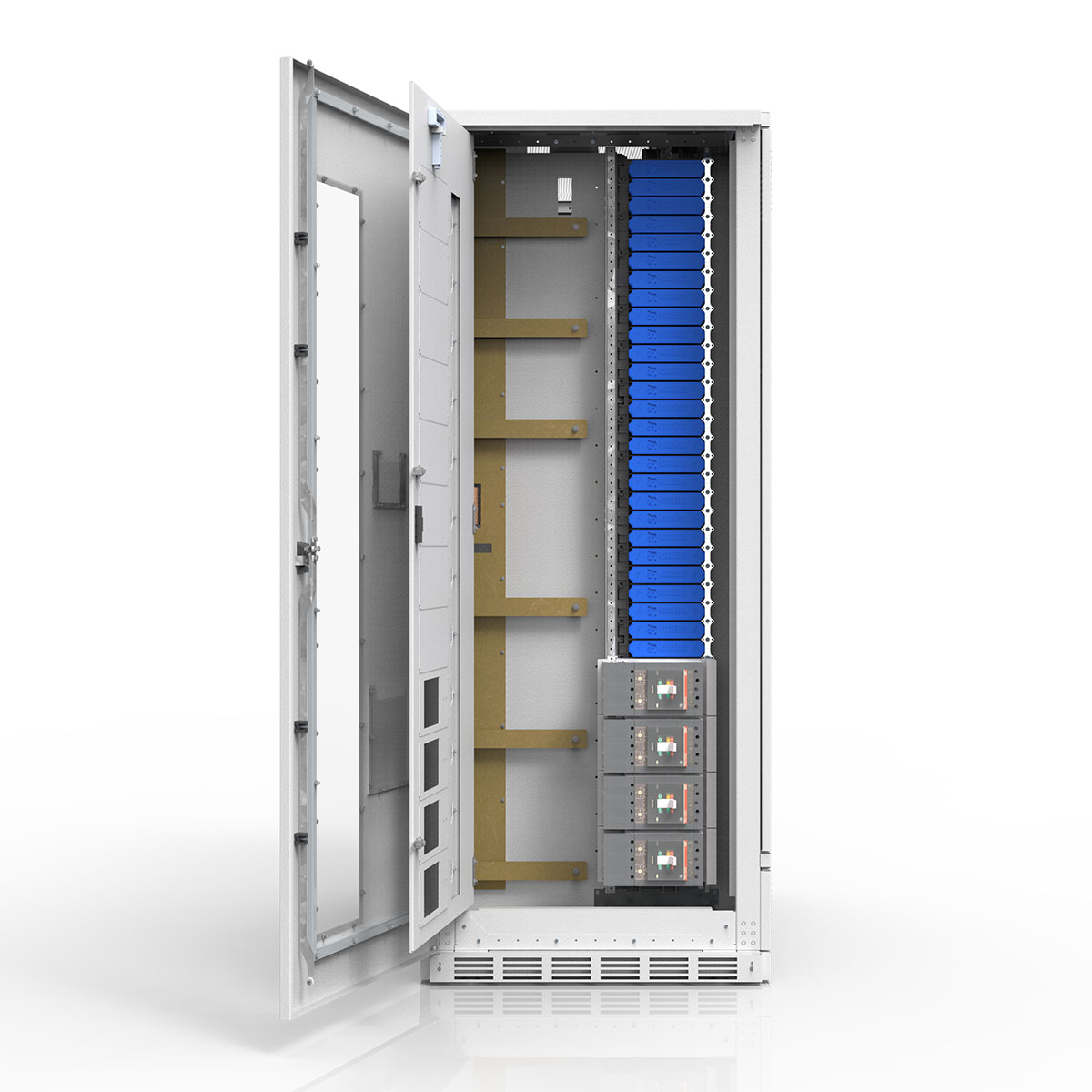

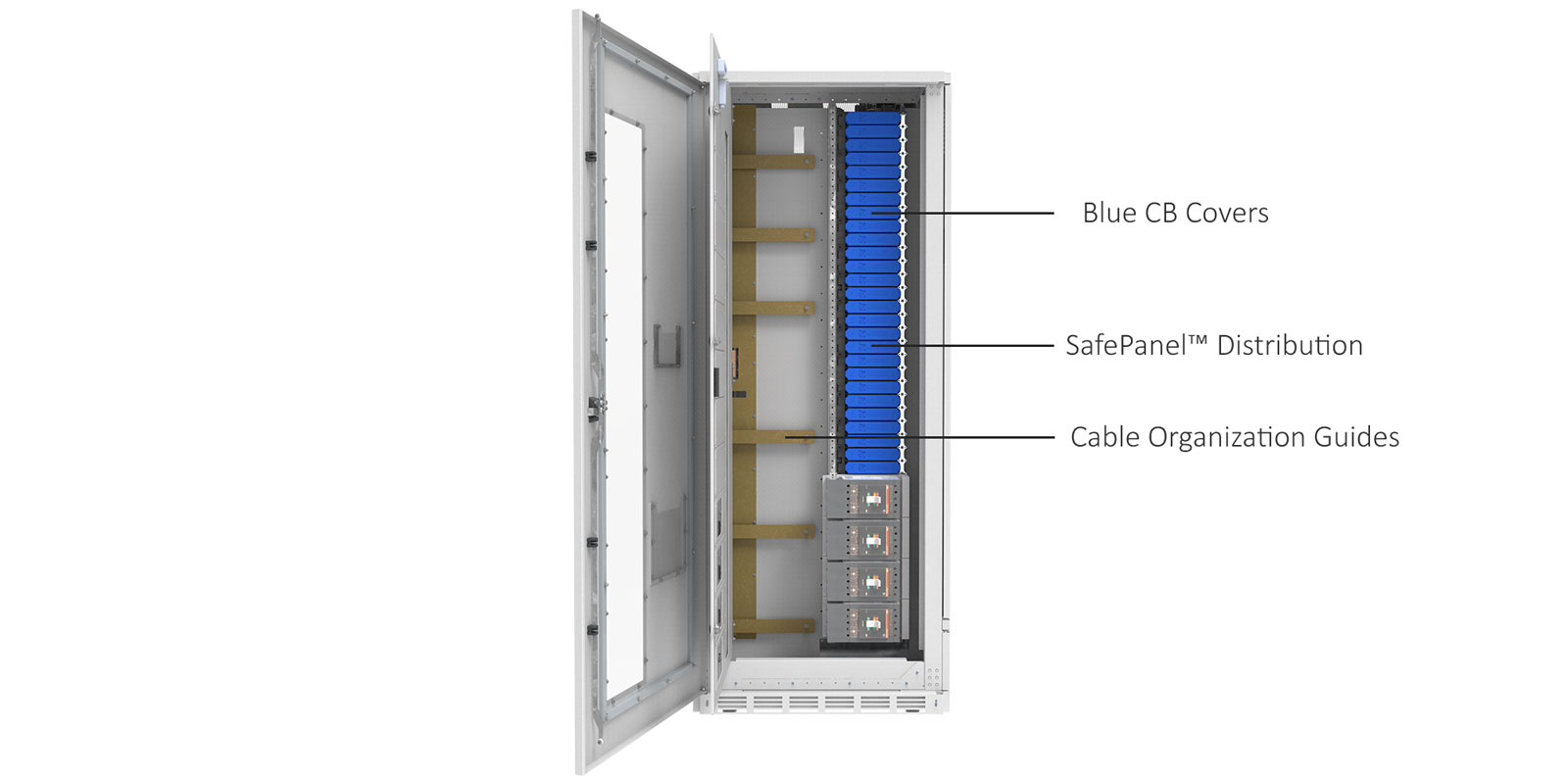

SafePanel™ Distribution

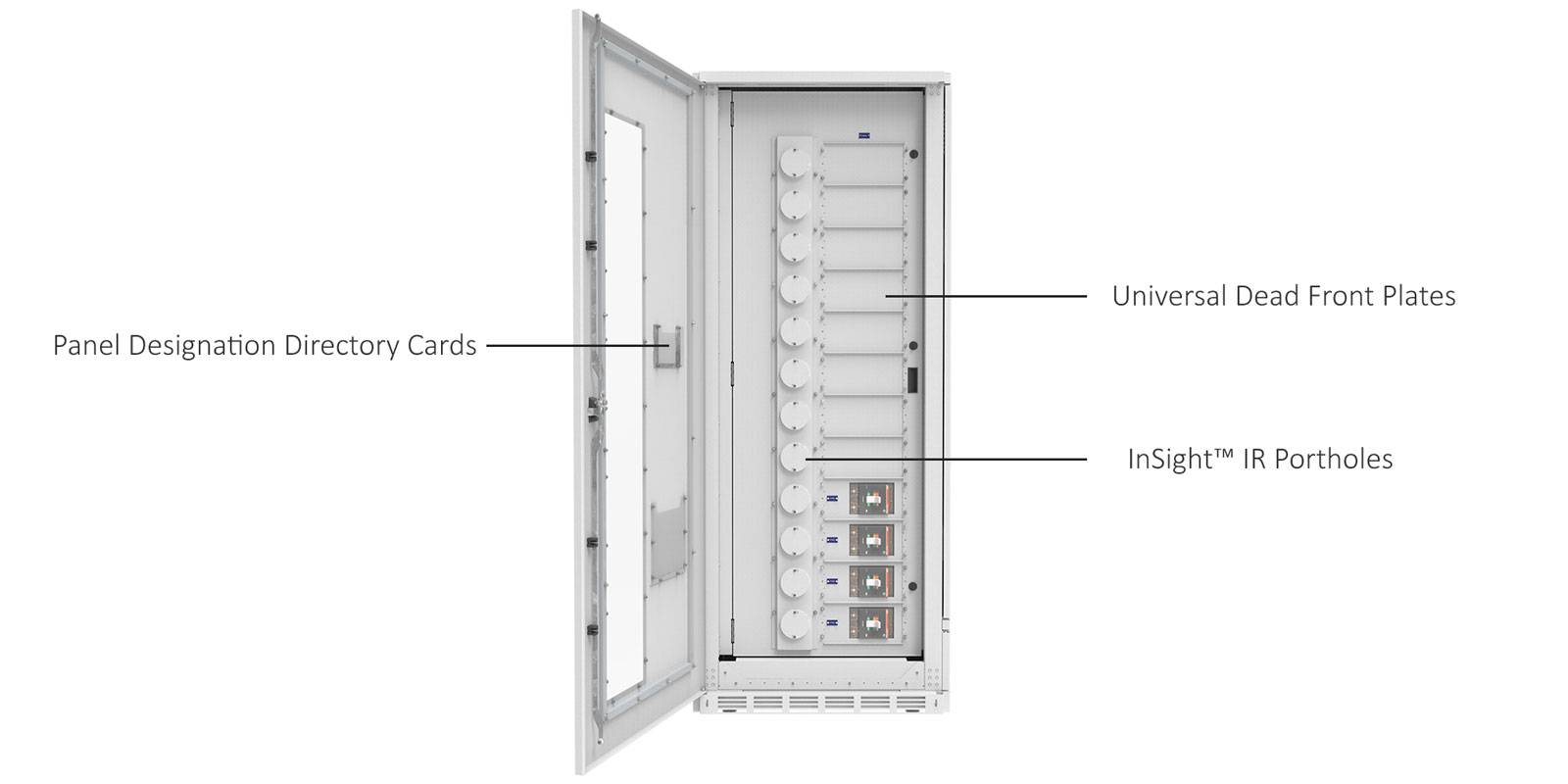

InSight IR™ Portholes
Sectionalized Components

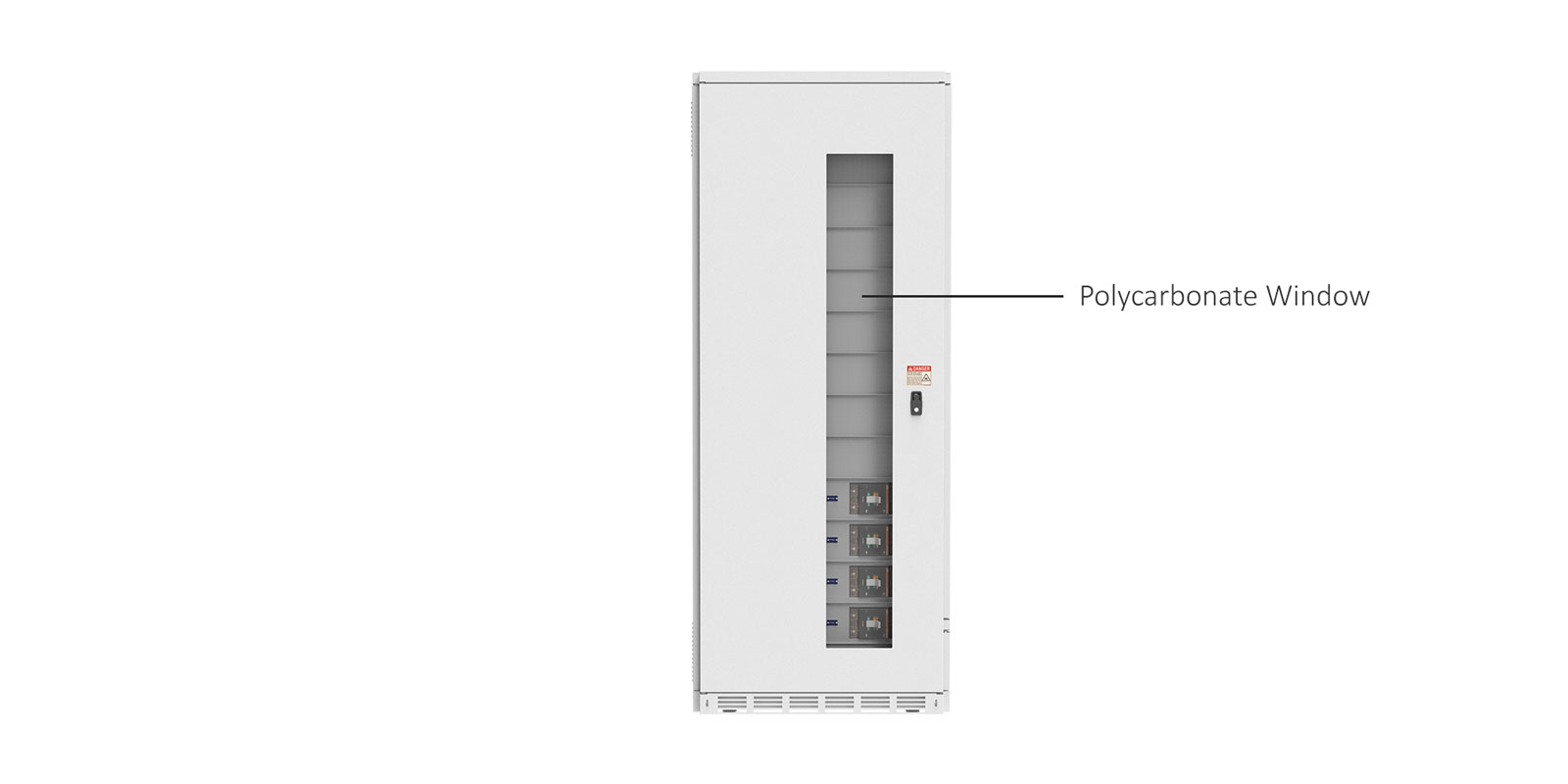

Polycarbonate Windows
Front-Only Access

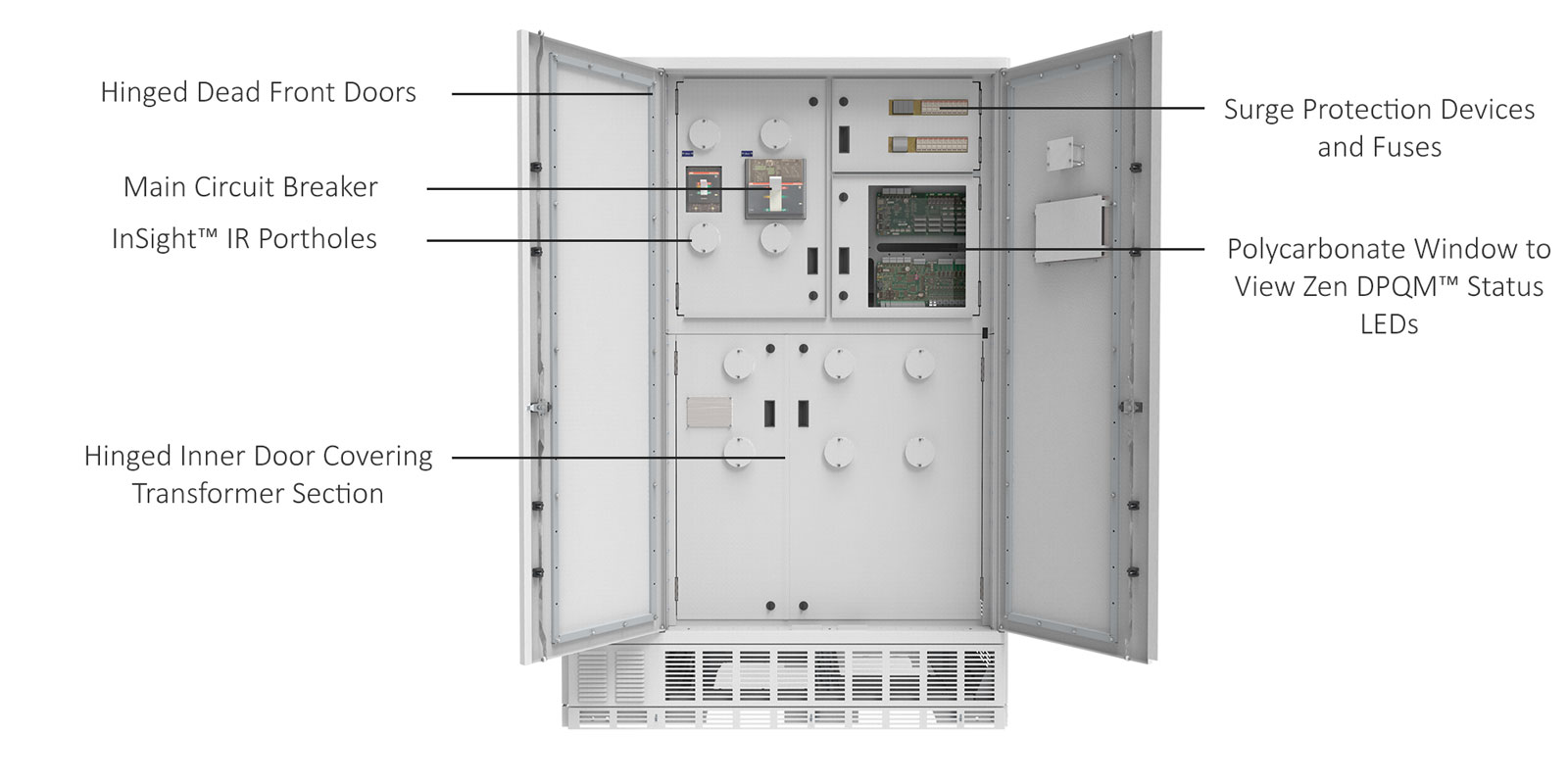

Dead-Front Hinged Doors
Connectivity
Ethernet Connectivity
Modbus/TCP
NTP Time Clock
SNMP Connectivity
Connectivity Options
Series 70 ePODs: Type-X SF Technical Specifications
| Mechanical Characteristics™ | |
| Dimensions | 80"H x 69"W x 47"D |
ePODs: Type-X SF Virtual Tour Video
Panel Board Configurations
• Exposed Live Parts
• Requires deenergizing before an employee works on or near equipment
• Safe to Install Additional Circuit Breakers When Disconnected
• Ideal for environments where live equipment can be shut down for maintenance.
• Requires deenergizing before an employee works on or near equipment
• Safe to Install Additional Circuit Breakers When Disconnected
• Ideal for environments where live equipment can be shut down for maintenance.
• No Exposed Live Parts
• Finger Safe (IP-20 Rated) Panel Board
• Includes Panel Board Shrouds
• Designed to Maximize Operator Safety
• Designed for environments that require uninterrupted power.
• Finger Safe (IP-20 Rated) Panel Board
• Includes Panel Board Shrouds
• Designed to Maximize Operator Safety
• Designed for environments that require uninterrupted power.
