LayerZero ePODs STS + PDU

ePODs STS + PDU Product Overview

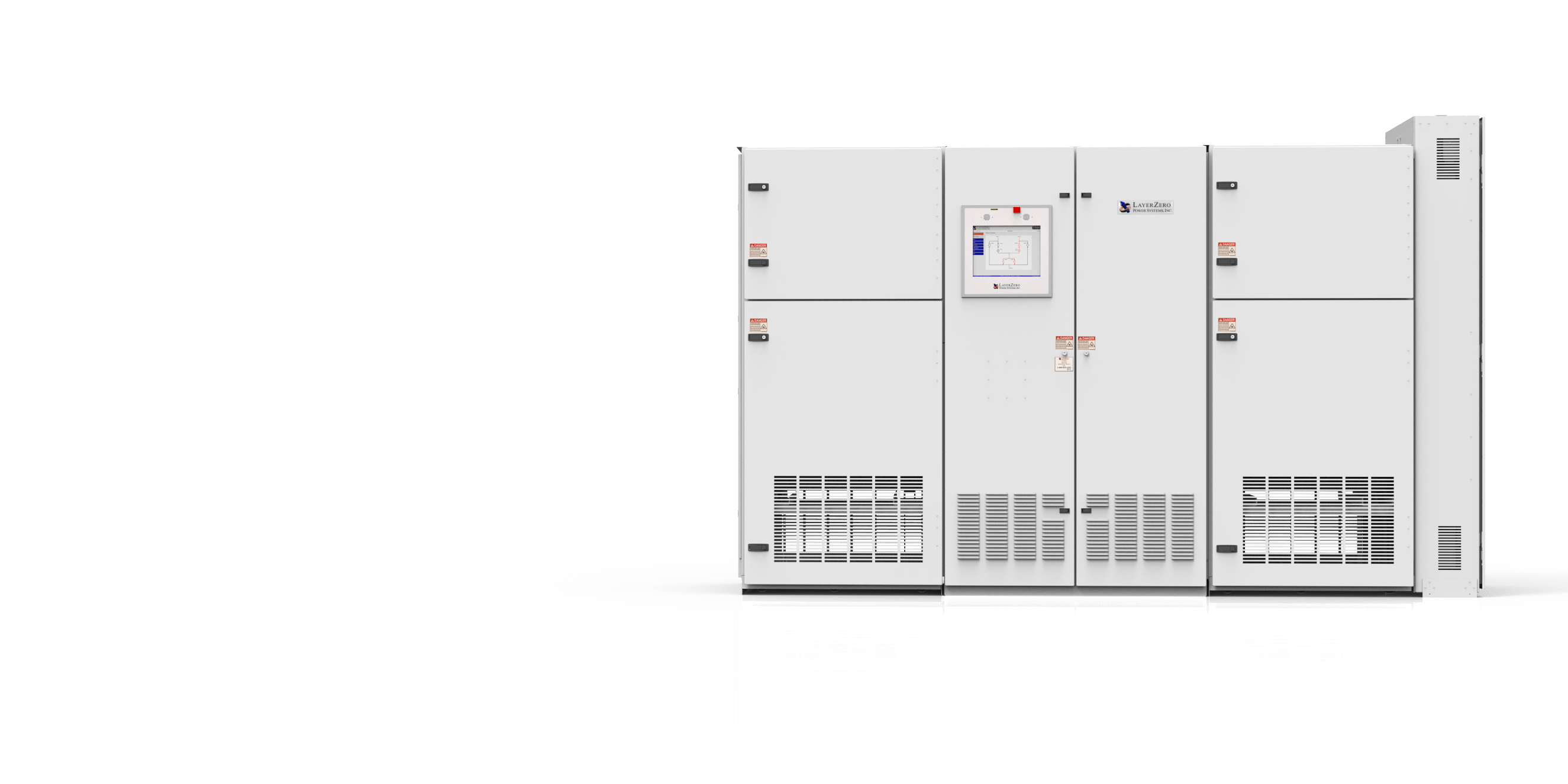

The ePODs STS + PDU Power Distribution Unit contains a Static Transfer Switch, Transformer, with Subfeed Distribution. ePODs eSTS + PDU systems are highly configurable. Options include one or two transformers, left-facing, right-facing, or front-facing distribution, and distribution type. Distribution type options include SafePanel™ distribution, or non-safepanel (ELP) configuration.

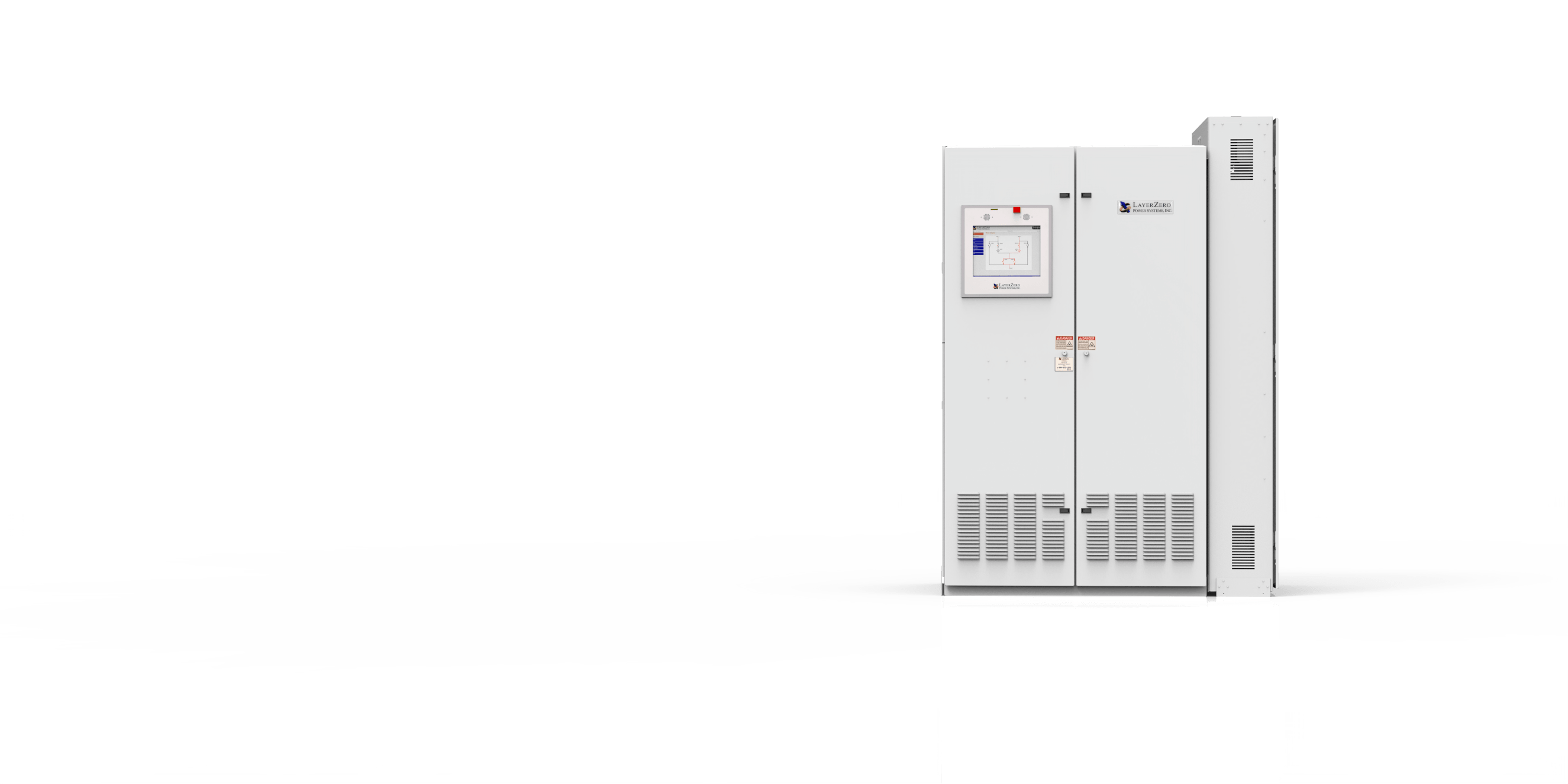

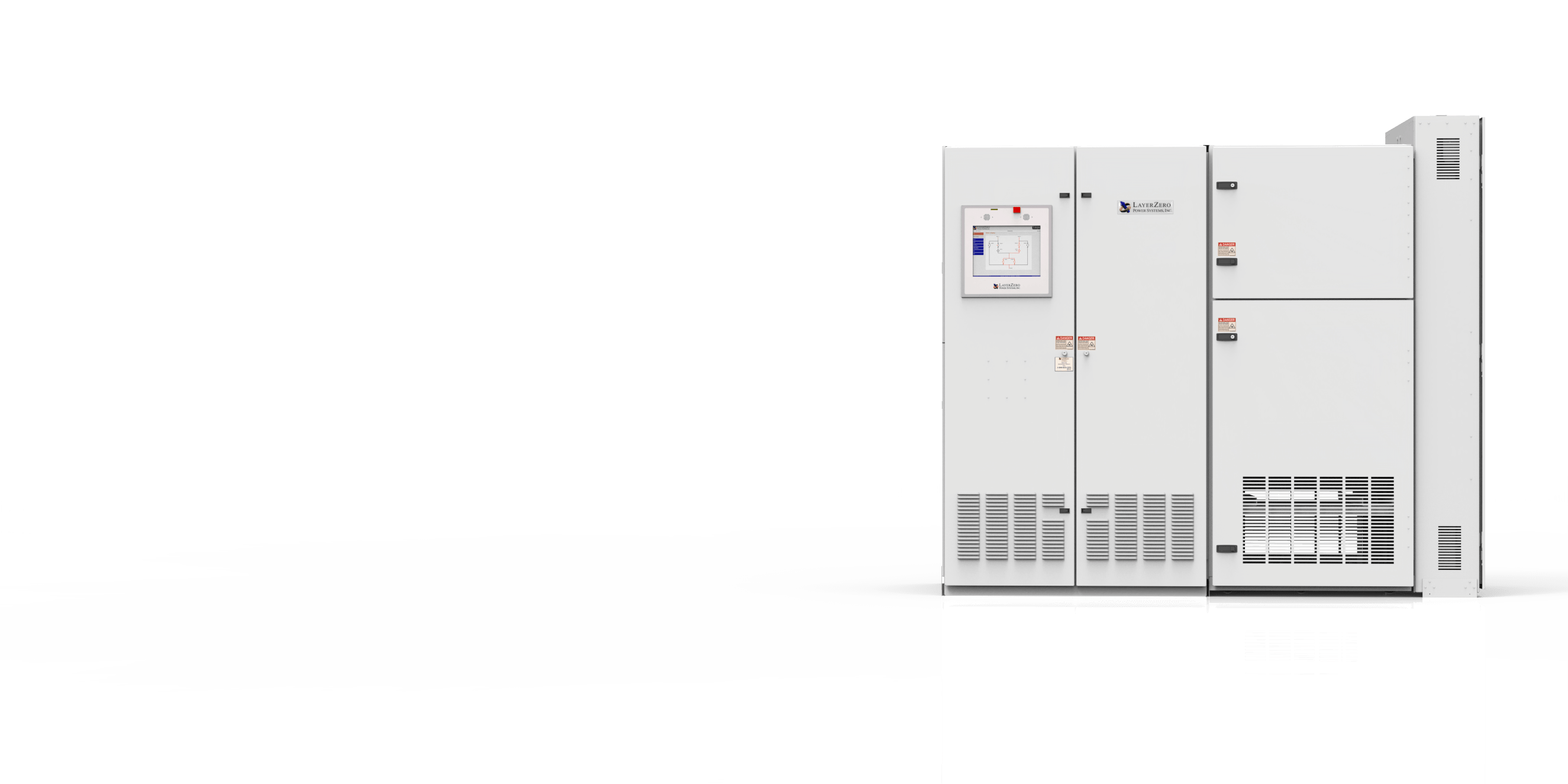

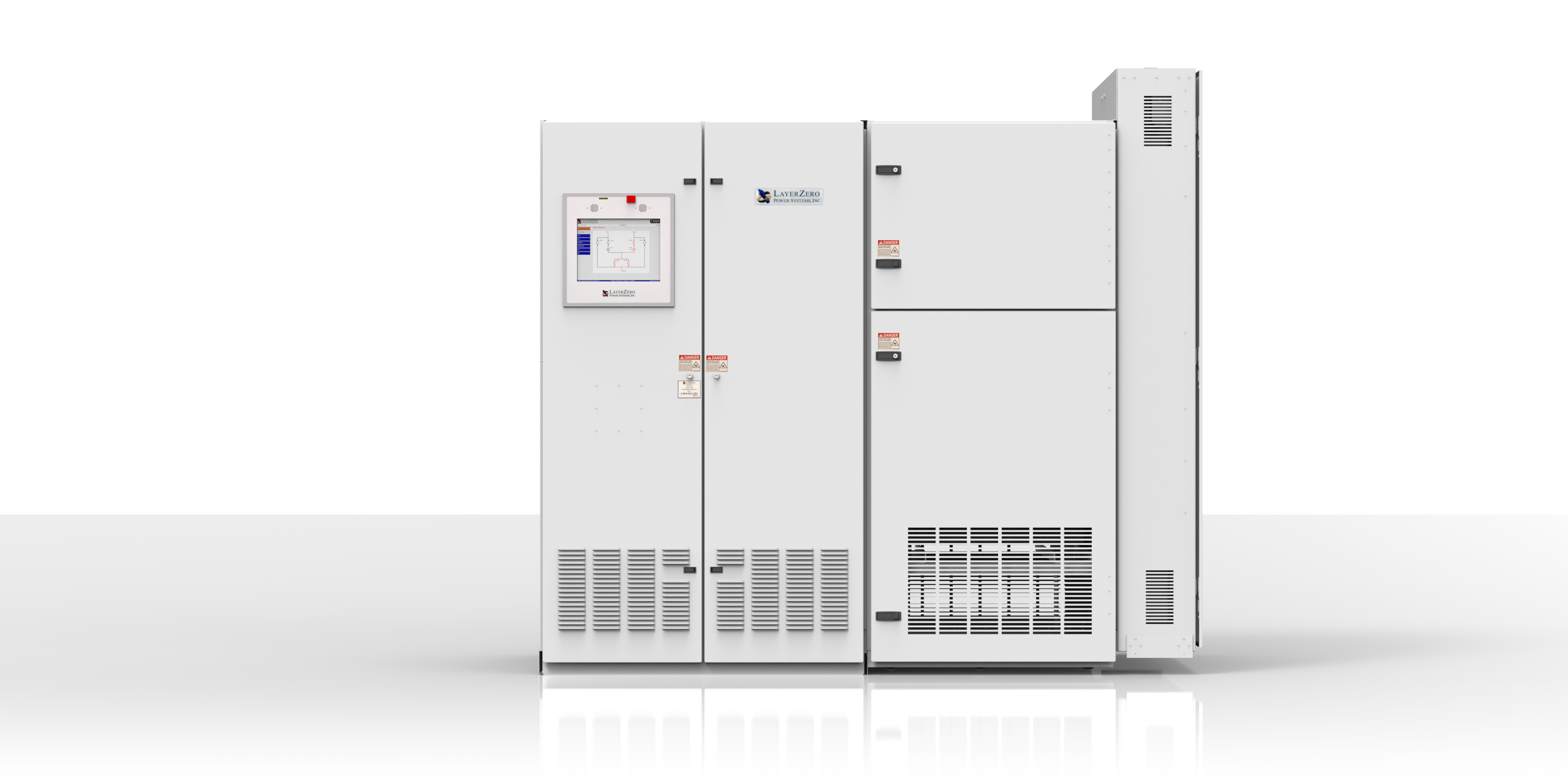

ePODs STS PDU in a Primary Side configuration eSTS Distribution MCB Transformer Any eSTS can be paired with a PDU, and can be interconnected in single-cabinet design up-through 800 A. "Primary Side" ePODs STS + PDU Configuration

ePODs eSTS + PDU Configurations

LayerZero Power Systems provides many combinations of STS and PDU systems. Any LayerZero STS can be paired with almost any LayerZero PDU as interconnected ePODs models. Larger sized eSTS systems can be configured to work as through they are interconnected, even if the STS and PDU sections are in different cabinets. Distribution can be configured to be front-facing, right-facing, and/or left-facing

Select A PDU Configuration
Primary
Dual Primary
Secondary
Distribution-Only

ePODs STS + PDU Interconnectivity

LayerZero Power Systems ePODs: eSTS + PDU systems are highly configurable. Larger sized eSTS systems can be configured to work as through they are physically interconnected, even if the STS and PDU sections exist in different cabinets.

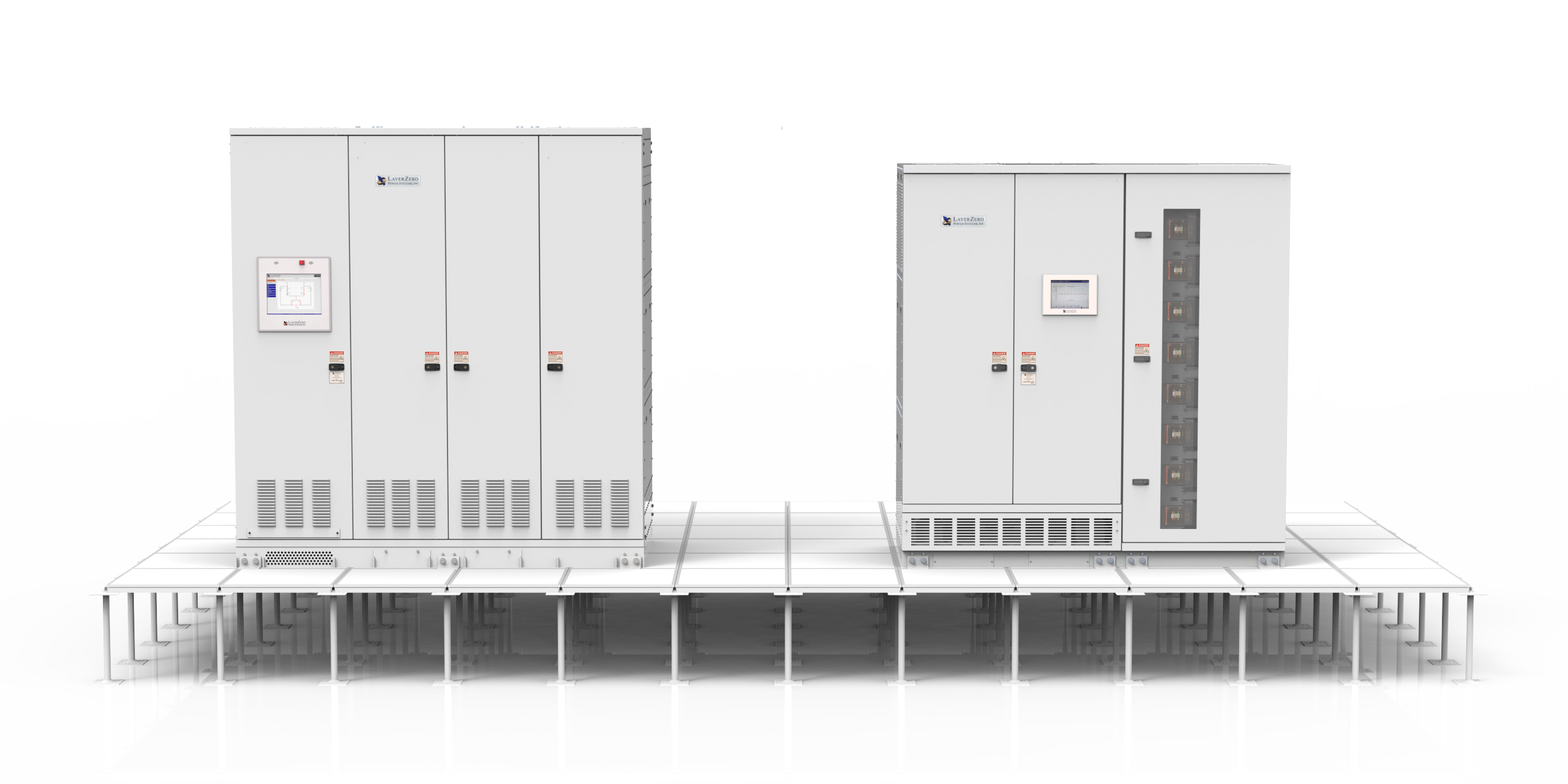

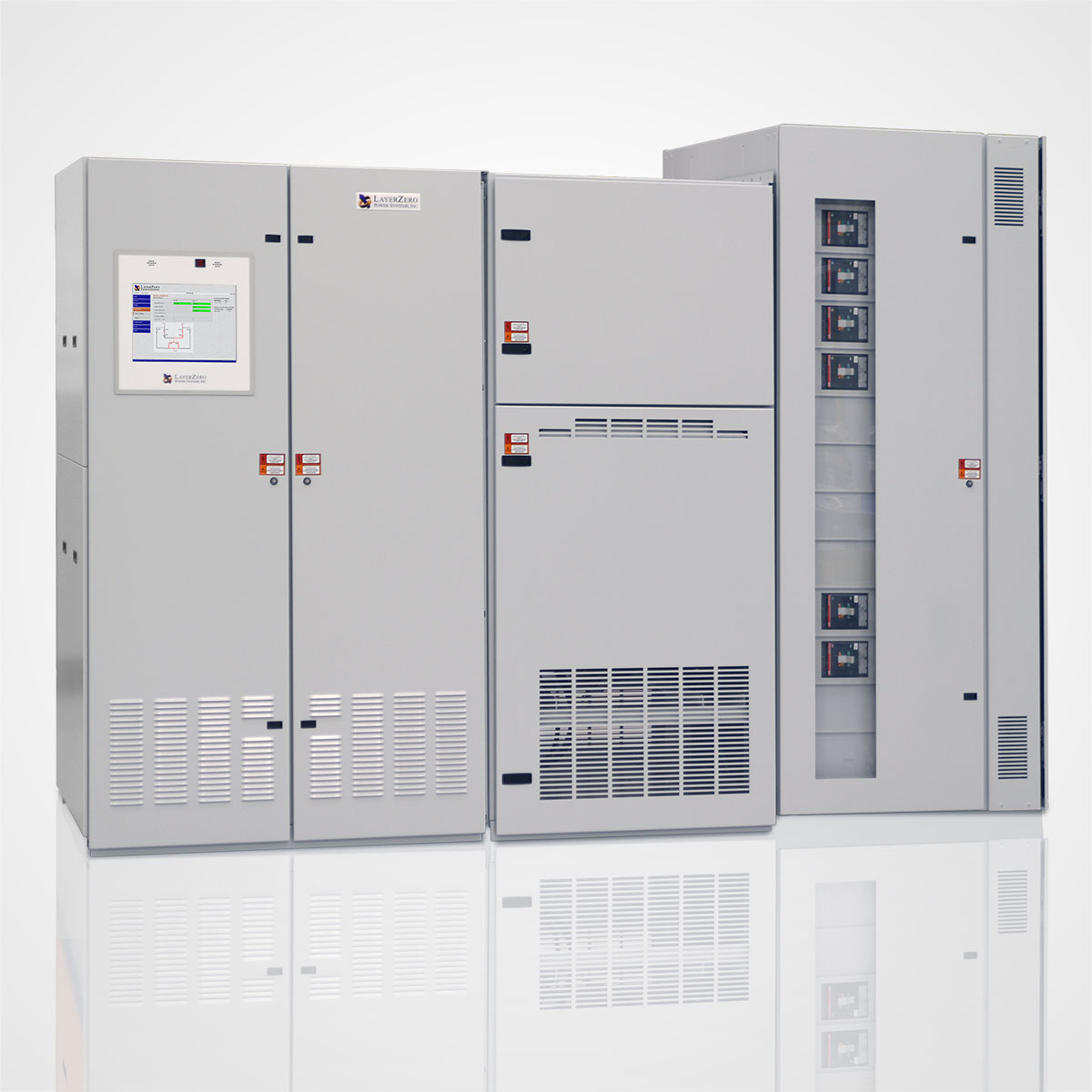

ePODs: PDU with Front-Facing Subfeeds 1600 A eSTS Static Transfer Switch eSTS Interconnected with Distribution in Separate Cabinets

ePODs STS + PDU Distribution Options

LayerZero Power Systems provides many combinations of STS and PDU systems. Any LayerZero STS can be paired with almost any LayerZero PDU as interconnected ePODs models. Distribution can be configured to be front-facing, right-facing, and/or left-facing

NELP Configuration (No Exposed Live Parts)• Finger Safe (IP-20 Rated) Panel Board• Includes Panel Board Shrouds• Designed to Maximize Operator Safety• Designed for environments that require uninterrupted power.ELP Configuration (Optional) • Requires deenergizing before an employee works on or near equipment• Safe to Install Additional Circuit Breakers When Disconnected• Ideal for environments where live equipment can be shut down for maintenance.
Select A Distribution Type
SafePanel

ELP

ePODs STS + PDU Distribution Safety

Designed to maximize operator safety, the LayerZero SafePanel™ is provided as the standard distribution option on LayerZero ePODs PDUs. The LayerZero SafePanel™ helps minimize the risk of a workplace accident by permitting safe installation of circuit breakers.

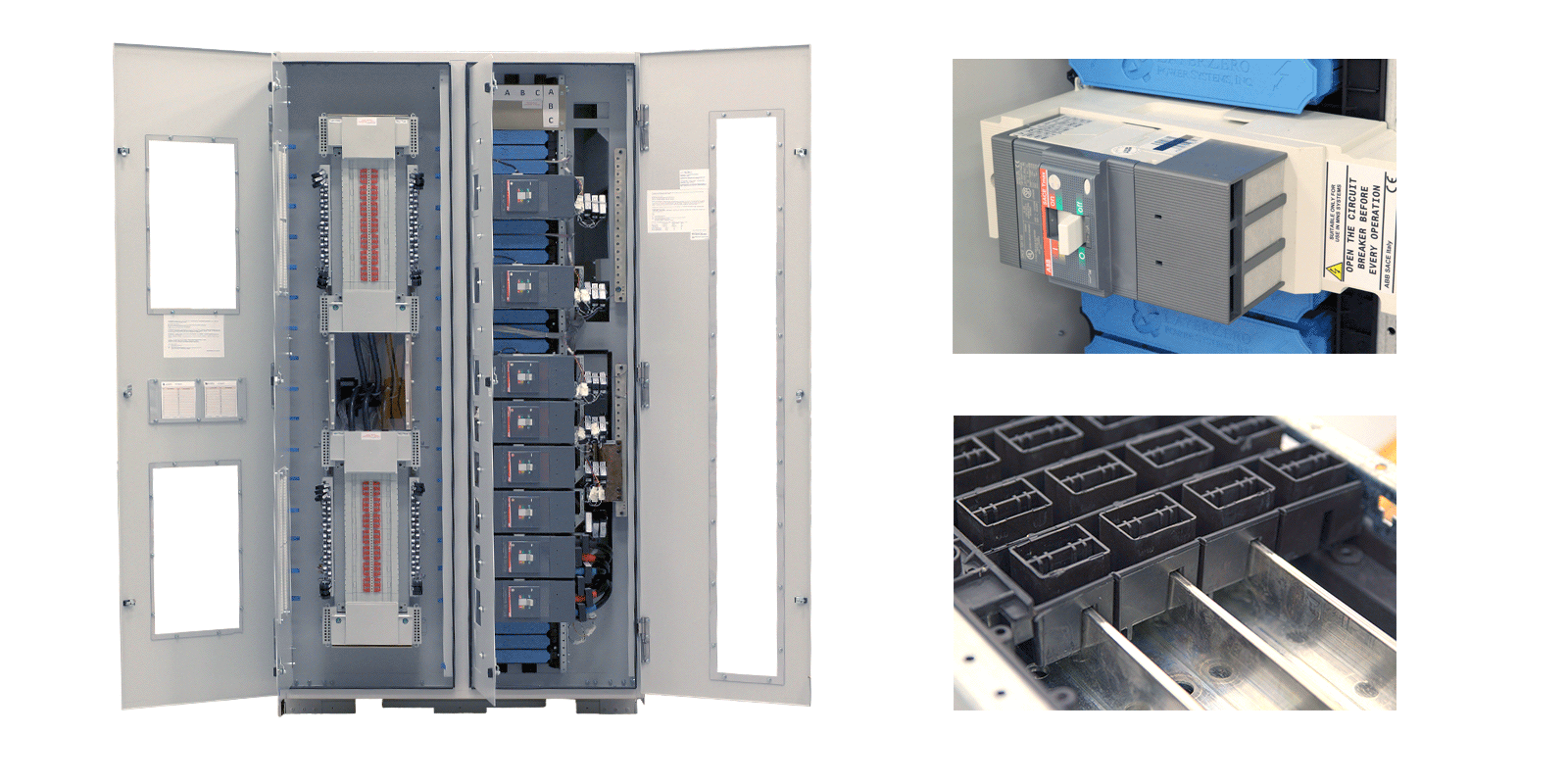

SafePanel Subfeed Distribution Safety The busway of the SafePanel is located behind a resin-injected molding. Distribution with 400 A SafePanel™ and Subfeeds Shrouds and fiberglass inserts are included.

Automatic ITIC Plotting and Waveform Capture

LayerZero provides an ITIC Plotting tool to audit the quality of transfers, to ensure that transfer times stay within the limits of ITIC curve parameters. Waveform captures can be viewed for every pole of every breaker.

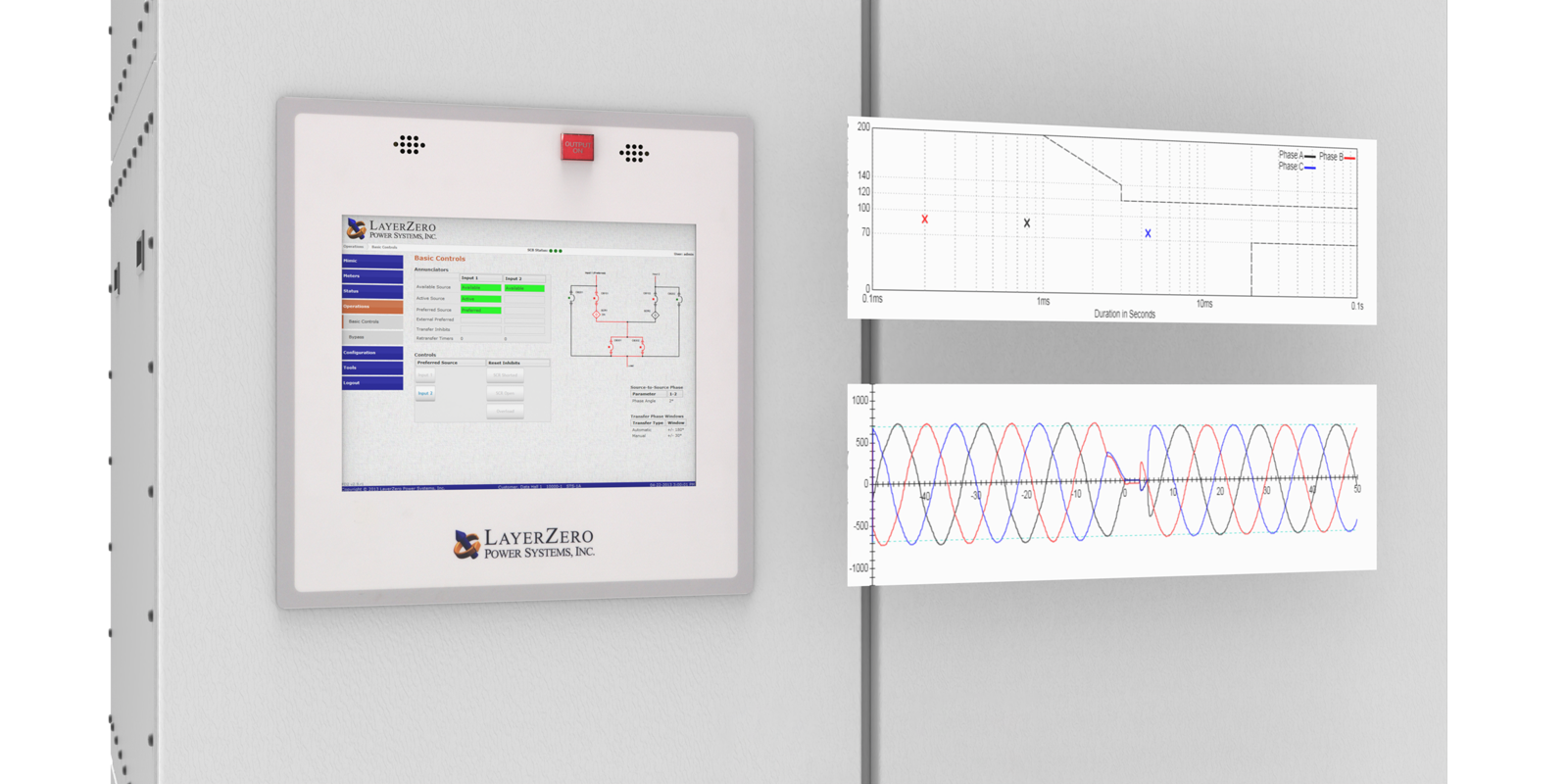

Waveform Capture and ITIC Plotting: Audit the quality of transfers with waveform capture and ITIC plotting built into every ePODs: eSTS + PDU.

INSIGHT IR® to Monitor Distribution

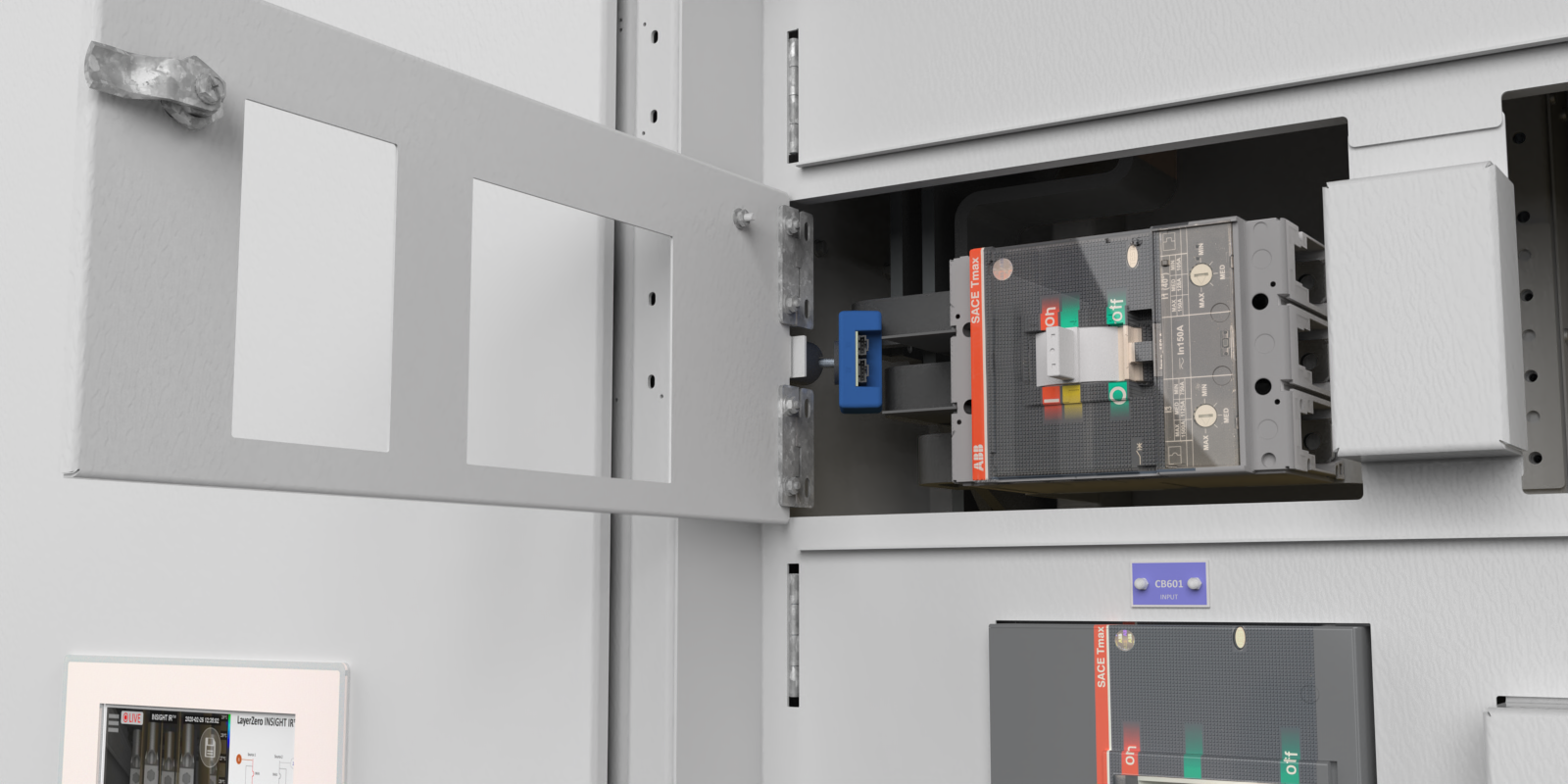

To help monitor the temperatures of bolted customer connections, INSIGHT IR® cameras are available as an option. INSIGHT IR® is a network of fixed-mount thermal cameras that continuously monitor for abnormal changes in temperature.

INSIGHT IR

Connectivity Options

eSTS Connectivity
